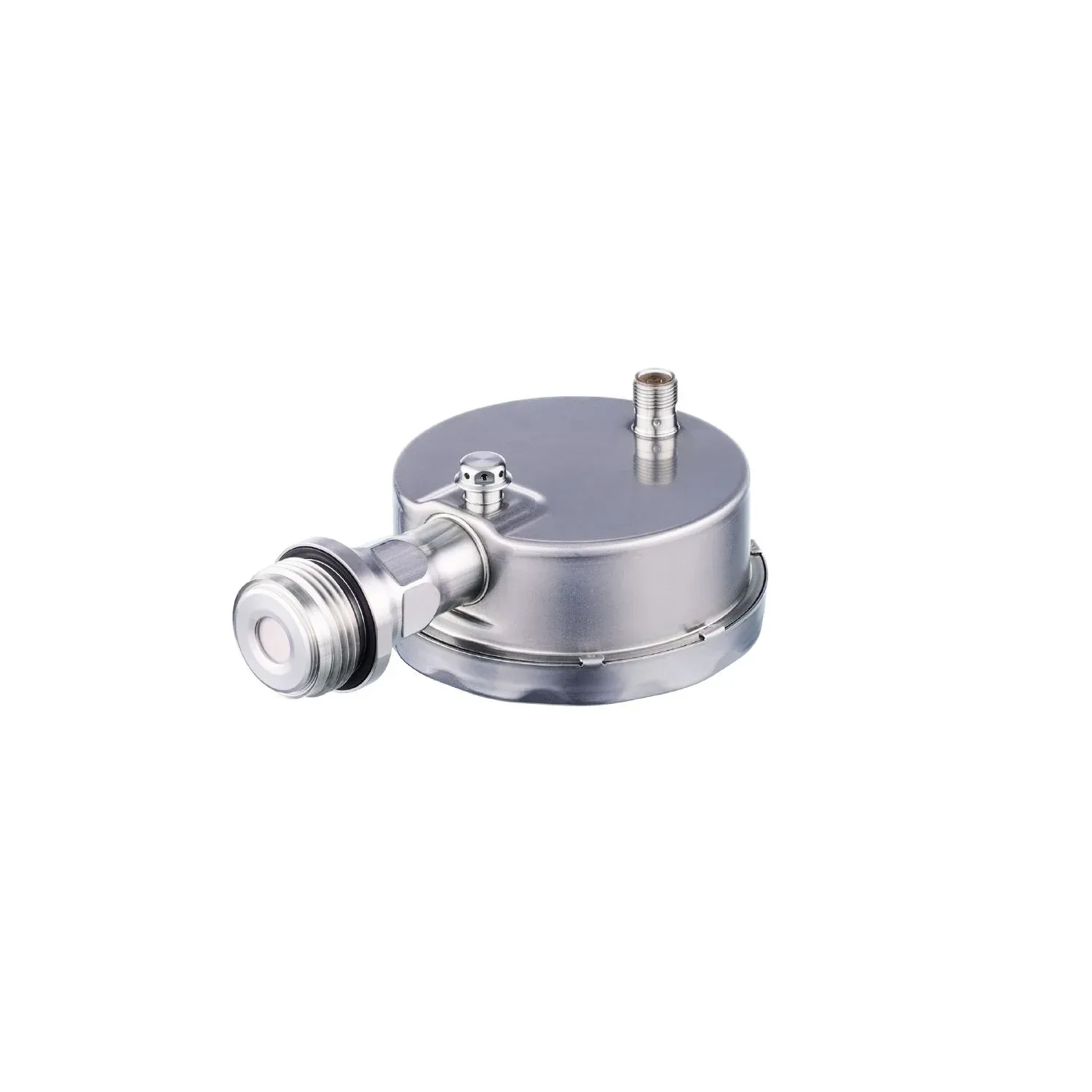

IFM PG1743
PG1743
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

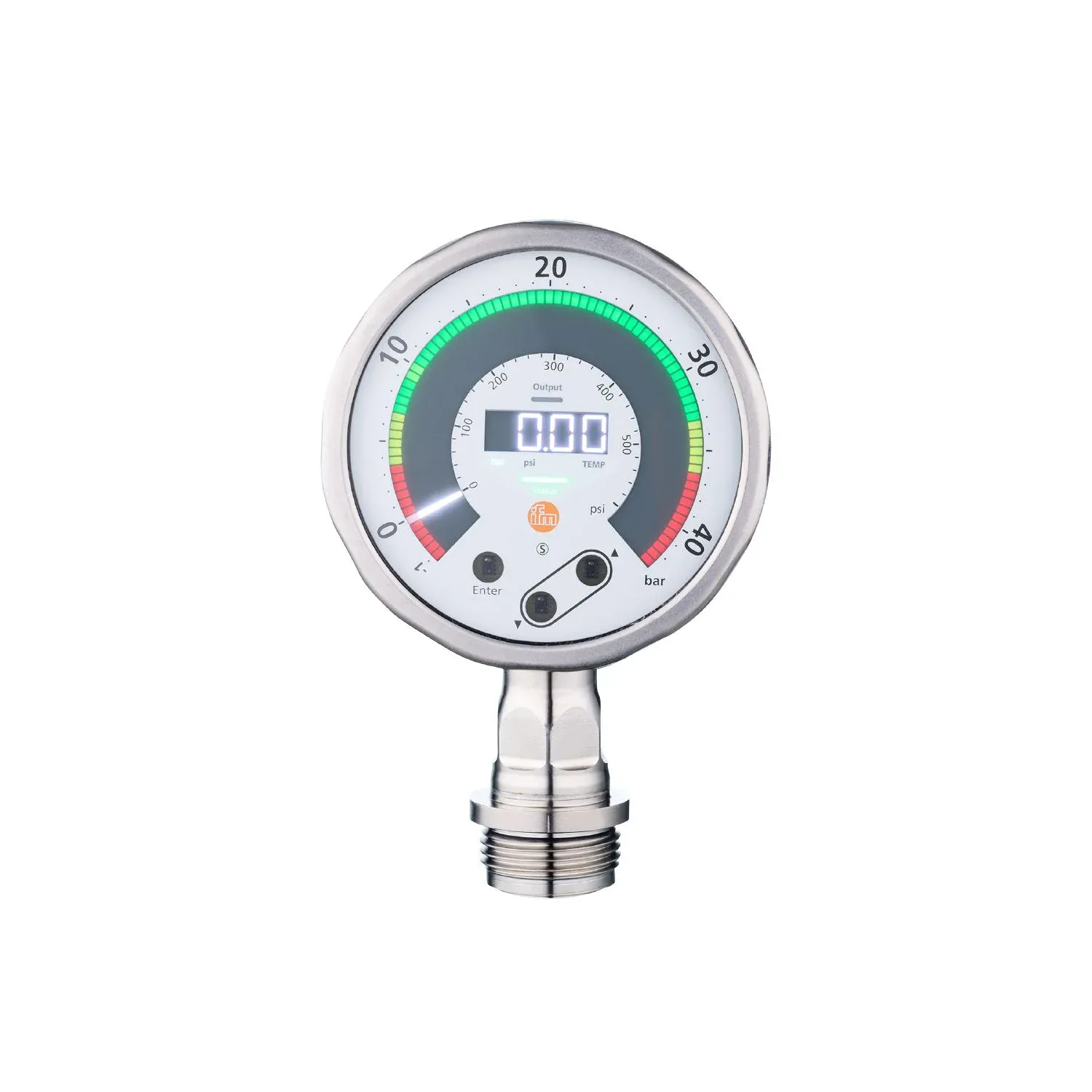

Manometer display, pressure switch and transmitter in one unit
Excellent readability also over a long distance
Rotatable display with LED indication for flexible visualisation
Hygienic, robust stainless steel housing for the requirements of the food and beverage industry
Flush process connection for use in CIP and SIP processes
Integrated temperature measurement via IO-Link
Convenient operation via buttons or parameter setting via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|---|
| Measuring range | -1...40 bar -14.5...580 psi |
| -1...40 bar | -14.5...580 psi |
| Process connection | threaded connection G 1 external thread Aseptoflex Vario |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Measuring element | ceramic-capacitive pressure measuring cell |
| Application | flush mountable for the food and beverage industry |
| Media | viscous media and liquids with suspended particles; liquids and gases |
| Medium temperature[°C] [°C] | -25...150 |
| Min. burst pressure | 400 bar 5801 psi |
| 400 bar | 5801 psi |
| Pressure rating | 125 bar 1813 psi |
| 125 bar | 1813 psi |
| Vacuum resistance | -1000 mbar 14.5 psi |
| -1000 mbar | 14.5 psi |
| Type of pressure | relative pressure; vacuum |
| No dead space | yes |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | 25...260 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 0.5 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal; IO-Link |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 125 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20, invertible; (scalable) |
| Max. load[Ω] [Ω] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range | -25...150 °C -13...302 °F |
|---|---|
| -1...40 bar | -14.5...580 psi |
| Set point SP | -1...40 bar -14.5...580 psi |
| Analogue start point | -1...32 bar -14.5...464 psi |
| -1...32 bar | -14.5...464 psi |
| Analogue end point | 7...40 bar 102...580 psi |
| 7...40 bar | 102...580 psi |
| In steps of | 0.01 bar 1 psi |
| 0.01 bar | 1 psi |
| Factory setting | SP1 = 145 psi SP2 = 133 psi ASP = 0.00 psi AEP = 580 psi dAP = 0.06 s dAA = 0.06 s |
| -25...150 °C | -13...302 °F |
| Resolution of display[K] [K] | 1 |
Accuracy / deviations
| Switch point accuracy[% of the span] [% of the span] | < ± 0,2; (DIN EN IEC 62828-1; Turn down 1:1) |
|---|---|
| Repeatability[% of the span] [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation[% of the span] [% of the span] | < ± 0,2; (DIN IEC EN 62828-1 incl. zero point and span error, non-linearity, hysteresis; Turn down 1:1) |
| Linearity deviation[% of the span] [% of the span] | < ± 0,15; (Turn down 1:1) |
| Zero-point stabilisation[% of the span] [% of the span] | IO-Link, analogue output 0,1; (see operating instructions zero-point behaviour) display, switching output 0,2 |
| IO-Link, analogue output | 0,1; (see operating instructions zero-point behaviour) |
| display, switching output | 0,2 |
| Hysteresis deviation[% of the span] [% of the span] | < ± 0,15; (Turn down 1:1) |
| Long-term stability[% of the span] [% of the span] | < ± 0,1; (Turn down 1:1; per year) |
| Total deviation over temperature range | -25...15 °C Characteristics deviation ± 0,05 % of the span / 10 K 15...80 °C Characteristics deviation 80...150 °C Characteristics deviation ± 0,1 % of the span / 10 K |
| -25...15 °C | Characteristics deviation ± 0,05 % of the span / 10 K |
| 15...80 °C | Characteristics deviation |
| 80...150 °C | Characteristics deviation ± 0,1 % of the span / 10 K |
| Notes on the accuracy / deviation | for further details see section Diagrams and graphs |
| Accuracy[K] [K] | ± 0.8 + (0.16 x (ambient temperature - medium temperature)) |
| Repeatability[K] [K] | ± 0,2 |
Response times
| Min. response time of switching output (dAP)[ms] [ms] | 3 |
|---|---|
| Damping process value dAP[s] [s] | 0...99.99 |
| Damping for the analogue output dAA[s] [s] | 0...99.99 |
| Step response time analogue output[ms] [ms] | 7 |
| Dynamic response T05 / T09[s] [s] | < 55 / < 270; (DIN EN 60751 water ; > 0,9 m/s) |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Common - I&D Identification and Diagnosis Function Measurement data, standard resolution |
| Common - I&D | Identification and Diagnosis |
| Function | Measurement data, standard resolution |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 1.3 |
| IO-Link resolution pressure[bar] [bar] | 0.002 |
| IO-Link resolution temperature[K] [K] | 0.1 |
| IO-Link process data (cyclical) | pressure 32 temperature 32 device status 4 binary switching information pressure 2 binary switching information temperature 2 |
| pressure | 32 |
| temperature | 32 |
| device status | 4 |
| binary switching information pressure | 2 |
| binary switching information temperature | 2 |
| IO-Link functions (acyclical) | application specific tag; internal temperature; operating hours counter; switching cycles counter; Pressure peak counter; Temperature peak counter |
| Supported DeviceIDs | default 1865 |
| default | 1865 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67; IP 69; (to DIN EN 60529) |
Tests / approvals
| EMC | DIN EN 61326-1 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) |
| DIN EN 60068-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 10 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 10 g (10...2000 Hz) |
| MTTF[years] [years] | 115 |
| Embedded software included | yes |
| UL approval | UL approval no. J059 File number UL E174189 |
| UL approval no. | J059 |
| File number UL | E174189 |
Mechanical data
| Weight[g] [g] | 655.4 |
|---|---|
| Housing | manometer housing |
| Dimensions[mm] [mm] | 155 x 100 x 57 |
| Materials | Housing: stainless steel (316L/1.4404); M12 connector: PPSU; Sealing: FKM; pressure compensation element: PTFE; viewing glass: laminated safety glass 4 mm |
| Materials (wetted parts) | measuring cell: ceramics (99.9 % Al2O3); Process connection: stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm; Sealing: PTFE |
| Min. pressure cycles | 100 million |
| Tightening torque[Nm] [Nm] | 35 |
| Process connection | threaded connection G 1 external thread Aseptoflex Vario |
Displays / operating elements
| Display | display rotation: 320° |
|---|---|
| Pointer | LED, white ; 72 steps |
| LED bar graph | multi-colour ; 72 steps |
| measured values | alphanumeric display, white 4-digit |
| switching status | LED, yellow |
| device status | LED, red/green |
| Display unit | bar; psi; °C; °F |
| Operating elements | 3 optical operating keys |
| 3 | optical operating keys |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
