IFM PG1405
PG1405
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

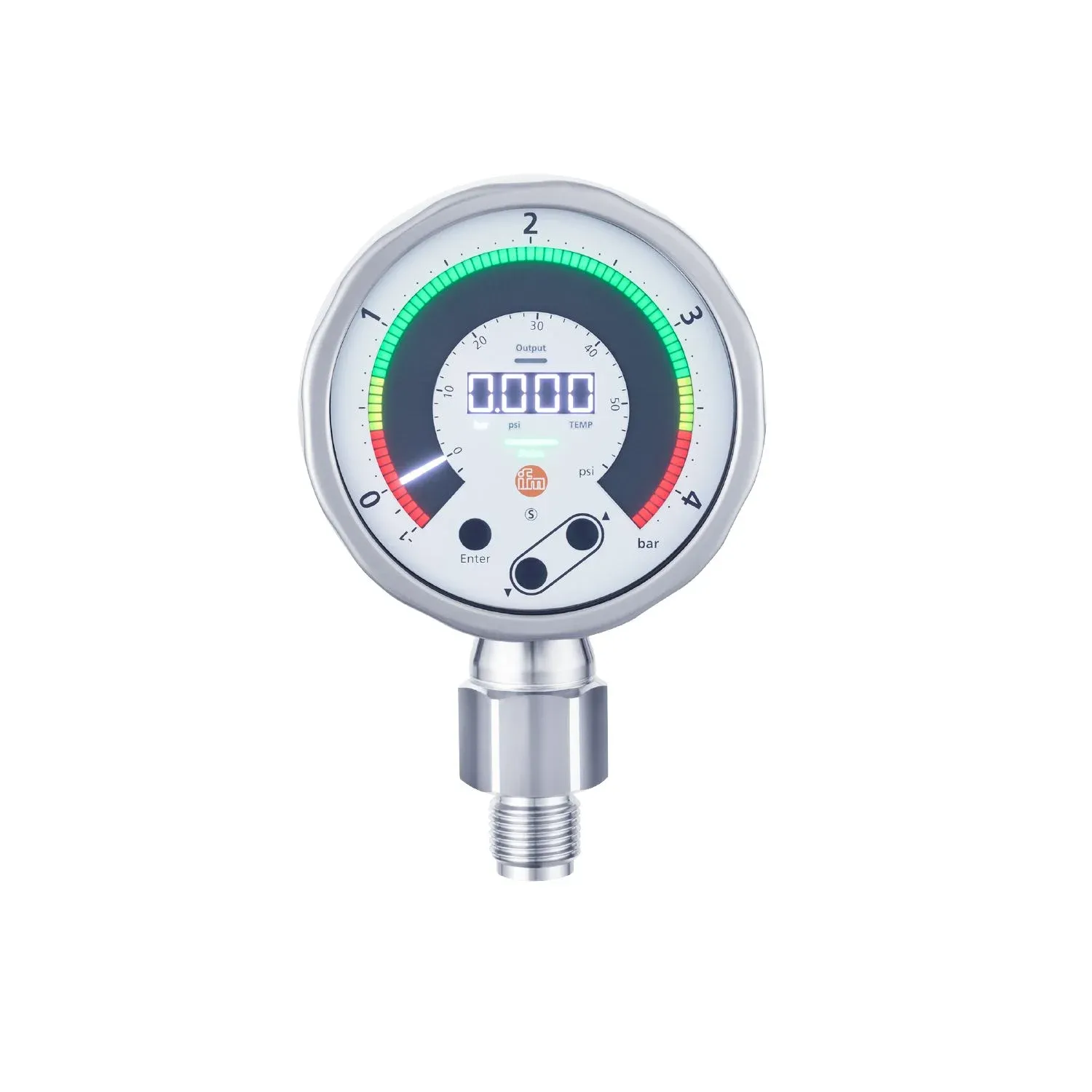

Manometer display, pressure switch and transmitter in one unit
Excellent readability also over a long distance
Rotatable display with LED indication for flexible visualisation
Programmable switching output and scalable analogue output
Robust stainless steel housing for use in harsh industrial environments
Convenient operation via buttons or parameter setting via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|---|
| Measuring range | -1...4 bar -14.5...58 psi |
| -1...4 bar | -14.5...58 psi |
| Process connection | threaded connection G 1/2 external thread DIN EN 837-1 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for industrial applications |
| Media | liquids and gases |
| Medium temperature[°C] [°C] | -25...80; (higher temperature upon request) |
| Min. burst pressure | 100 bar 1450 psi |
| 100 bar | 1450 psi |
| Pressure rating | 30 bar 435 psi |
| 30 bar | 435 psi |
| Vacuum resistance | -1000 mbar 14.5 psi |
| -1000 mbar | 14.5 psi |
| Type of pressure | relative pressure; vacuum |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | 25...260 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 0.5 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal; IO-Link |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 125 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20, invertible; (scalable) |
| Max. load[Ω] [Ω] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring range | -1...4 bar -14.5...58 psi |
|---|---|
| -1...4 bar | -14.5...58 psi |
| Set point SP | -1...4 bar -14.5...58 psi |
| Analogue start point | -1...3.2 bar -14.5...46.4 psi |
| -1...3.2 bar | -14.5...46.4 psi |
| Analogue end point | -0.2...4 bar -2.9...58 psi |
| -0.2...4 bar | -2.9...58 psi |
| In steps of | 0.001 bar 0.1 psi |
| 0.001 bar | 0.1 psi |
| Factory setting | SP1 = 14.5 psi SP2 =13.3 psi ASP = 0.00 psi AEP = 58 psi dAP = 0.06 s dAA = 0.06 s |
Accuracy / deviations
| Switch point accuracy[% of the span] [% of the span] | < ± 0,5; (DIN EN IEC 62828-1; Turn down 1:1) |
|---|---|
| Repeatability[% of the span] [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation[% of the span] [% of the span] | < ± 0,5; (DIN IEC EN 62828-1 incl. zero point and span error, non-linearity, hysteresis; Turn down 1:1) |
| Zero-point stabilisation[% of the span] [% of the span] | IO-Link, analogue output 0,2; (see operating instructions zero-point behaviour) display, switching output 0,1 |
| IO-Link, analogue output | 0,2; (see operating instructions zero-point behaviour) |
| display, switching output | 0,1 |
| Hysteresis deviation[% of the span] [% of the span] | < ± 0,15; (Turn down 1:1 -25...80°C) |
| Long-term stability[% of the span] [% of the span] | < ± 0,1; (Turn down 1:1; per year) |
| Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K] | < ± 0,25; (0...70 °C) |
| Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K] | < ± 0,25; (0...70 °C) |
Response times
| Min. response time of switching output (dAP)[ms] [ms] | 3 |
|---|---|
| Damping process value dAP[s] [s] | 0...99.99 |
| Damping for the analogue output dAA[s] [s] | 0...99.99 |
| Step response time analogue output[ms] [ms] | 7 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 4.2.1 Measuring and Switching Sensor, high resolution, 1 channel BLOB Binary Large Object transfer Common - I&D Identification and Diagnosis Extension Sensor Control Wide Extension Quantity detection, switches when value exceeds the setpoint Function Locator Function ProductURI |
| Smart Sensor - SSP 4.2.1 | Measuring and Switching Sensor, high resolution, 1 channel |
| BLOB | Binary Large Object transfer |
| Common - I&D | Identification and Diagnosis |
| Extension | Quantity detection, switches when value exceeds the setpoint |
| Function | ProductURI |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 1.3 |
| IO-Link resolution pressure[bar] [bar] | 0.0002 |
| IO-Link process data (cyclical) | pressure 32 device status 4 binary switching information pressure 2 |
| pressure | 32 |
| device status | 4 |
| binary switching information pressure | 2 |
| IO-Link functions (acyclical) | application specific tag; internal temperature; operating hours counter; switching cycles counter; Pressure peak counter |
| Supported DeviceIDs | default 1876 |
| default | 1876 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67; IP 69; (to DIN EN 60529) |
Tests / approvals
| EMC | DIN EN 61326-1 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) |
| DIN EN 60068-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 10 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 10 g (10...2000 Hz) |
| MTTF[years] [years] | 115 |
| Embedded software included | yes |
| UL approval | UL approval no. J060 File number UL E174189 |
| UL approval no. | J060 |
| File number UL | E174189 |

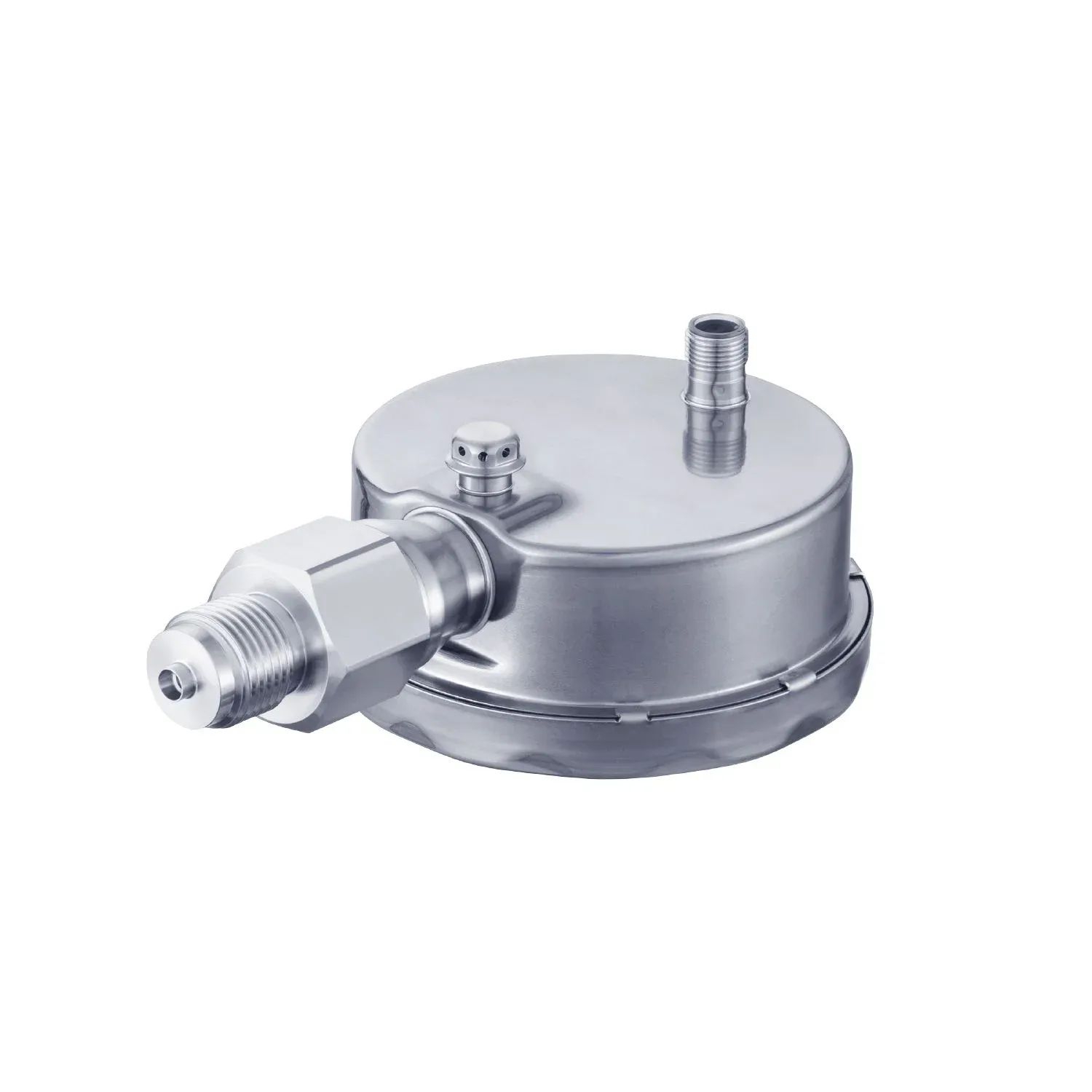

Mechanical data
| Weight[g] [g] | 469.1 |
|---|---|
| Housing | manometer housing |
| Dimensions[mm] [mm] | 160 x 100 x 57 |
| Materials | Housing: stainless steel (316L/1.4404); M12 connector: PPSU; Sealing: FKM; pressure compensation element: PTFE; viewing glass: laminated safety glass 4 mm |
| Materials (wetted parts) | measuring cell: Al2O3 (ceramics); Process connection: stainless steel (316L/1.4404); Sealing: FKM |
| Min. pressure cycles | 100 million |
| Process connection | threaded connection G 1/2 external thread DIN EN 837-1 |
| Restrictor element integrated | no (can be retrofitted) |
Displays / operating elements
| Display | display rotation: 320° |
|---|---|
| Pointer | LED, white ; 72 steps |
| LED bar graph | multi-colour ; 72 steps |
| measured values | alphanumeric display, white 4-digit |
| switching status | LED, yellow |
| device status | LED, red/green |
| Display unit | bar; psi |
| Operating elements | 3 optical operating keys |
| 3 | optical operating keys |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
