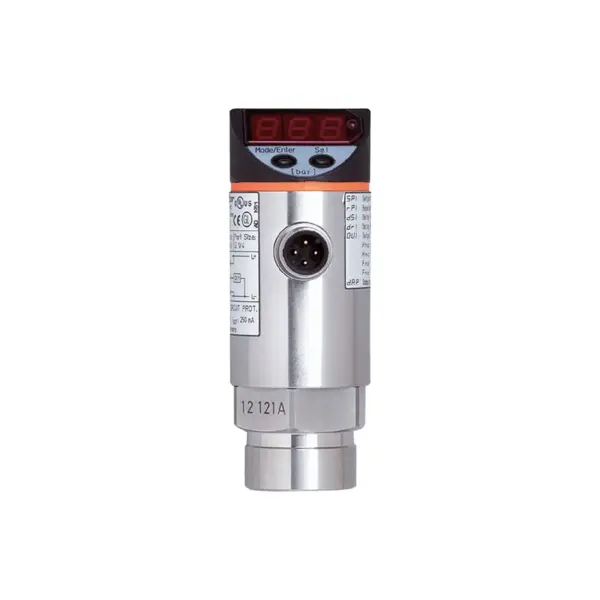

IFM PE3000
PE3000
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Special seal for use in cleaning processes
With programmable switching output and analogue output
With long-term stability thanks to high overload protection
Clearly visible 4-digit LED display
High shock and vibration resistance
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|---|
| Measuring range | 0...400 bar 0...5800 psi 0...40 MPa |
| 0...400 bar | 0...5800 psi |
| Process connection | threaded connection G 1/4 internal thread |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for industrial applications |
| Media | liquids and gases |
| Conditionally suitable for | use in gases at pressures > 25 bar only on request |
| Cannot be used for | oils |
| Medium temperature[°C] [°C] | -25...80 |
| Min. burst pressure | 1000 bar 14500 psi 100 MPa |
| 1000 bar | 14500 psi |
| Pressure rating | 600 bar 8700 psi 60 MPa |
| 600 bar | 8700 psi |
| Type of pressure | relative pressure |
Electrical data
| Operating voltage[V] [V] | 18...36 DC; (to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Overvoltage protection | yes; (< 40 V) |
| Power-on delay time[s] [s] | 0.3 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal; (configurable) |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Switching frequency DC[Hz] [Hz] | < 170 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | 500 |
| Analogue voltage output[V] [V] | 0...10 |
| Min. load resistance[Ω] [Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
Measuring/setting range
| Measuring range | 0...400 bar 0...5800 psi 0...40 MPa |
|---|---|
| 0...400 bar | 0...5800 psi |
| Set point SP | 4...400 bar 60...5790 psi 0.4...40 MPa |
| 4...400 bar | 60...5790 psi |
| Reset point rP | 2...398 bar 30...5760 psi 0.2...39.8 MPa |
| 2...398 bar | 30...5760 psi |
| In steps of | 2 bar 30 psi 0.2 MPa |
| 2 bar | 30 psi |
| Factory setting | SP1 = 100 bar rP1 = 92 bar |
Accuracy / deviations
| Switch point accuracy[% of the span] [% of the span] | < ± 0,5 |
|---|---|
| Repeatability[% of the span] [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation[% of the span] [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Hysteresis deviation[% of the span] [% of the span] | < ± 0,25 |
| Long-term stability[% of the span] [% of the span] | < ± 0,05; (per 6 months) |
| Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K] | 0,2; (0...80 °C) |
| Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K] | 0,2; (0...80 °C) |
Response times
| Delay time programmable dS, dr[s] [s] | 0; 0,2...50 |
|---|---|
| Max. response time analogue output[ms] [ms] | 3 |
Software / programming
| Parameter setting options | hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5/1 kV EN 61000-4-6 HF conducted 10 V |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-5 Surge | 0,5/1 kV |
| EN 61000-4-6 HF conducted | 10 V |
| Shock resistance | DIN IEC 68-2-27 50 g (11 ms) |
| DIN IEC 68-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6 20 g (10...2000 Hz) |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 213 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 272.5 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 34 / L = 94.1 |
| Materials | stainless steel (304/1.4301); stainless steel (316L/1.4404); PC; PBT; PEI; FKM |
| Materials (wetted parts) | stainless steel (316L/1.4404); ceramics; sealing of the measuring cell: EPDM |
| Min. pressure cycles | 100 million |
| Process connection | threaded connection G 1/4 internal thread |
Displays / operating elements
| Display | Display unit 3 x LED, green switching status LED, yellow function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit |
|---|---|
| Display unit | 3 x LED, green |
| switching status | LED, yellow |
| function display | alphanumeric display, 4-digit |
| measured values | alphanumeric display, 4-digit |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
