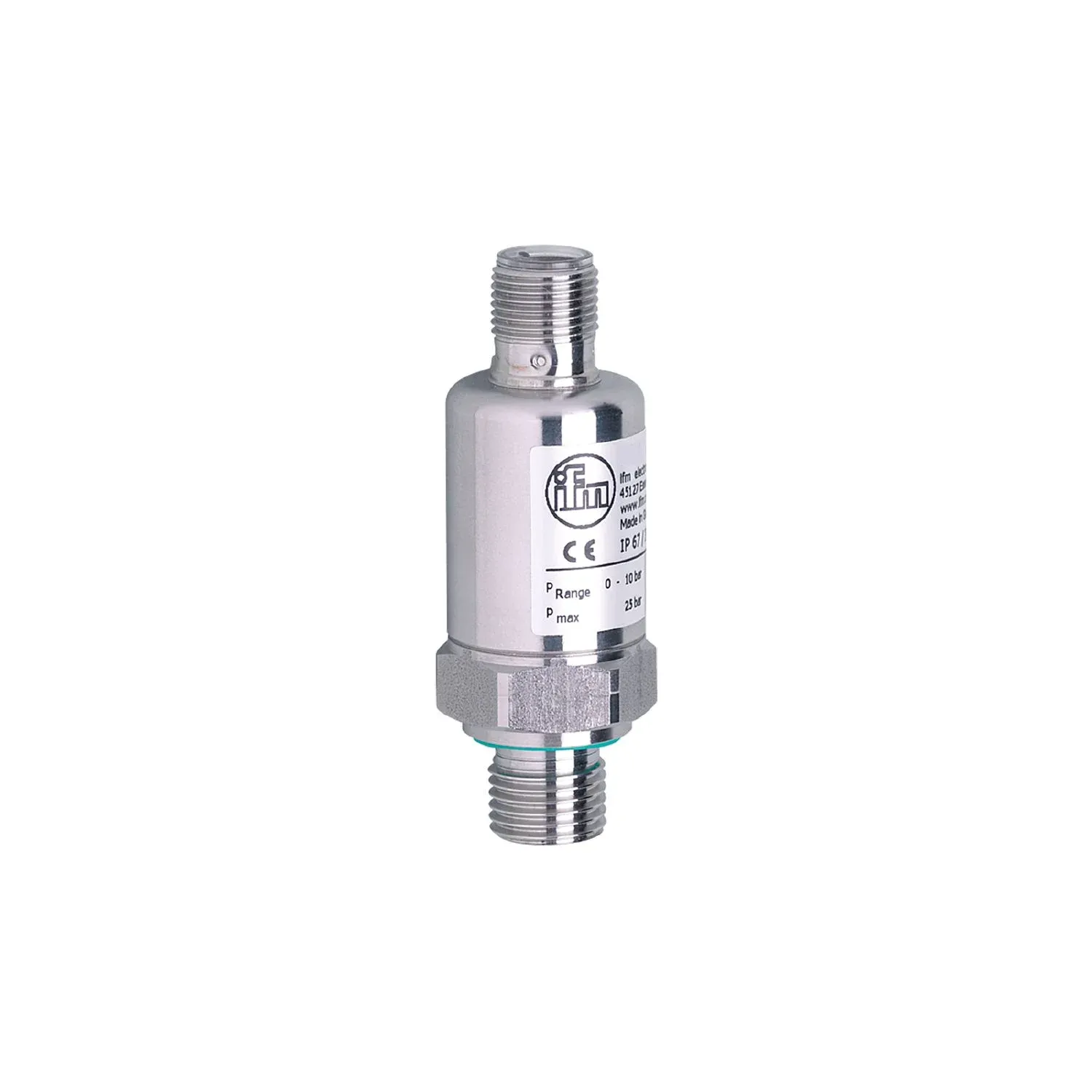

IFM PC9050
PC9050
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise linear 0.5…4.5 V output signal for mobile applications
High repeatability and low linearity error
With long-term stability thanks to high overload protection
Robust stainless steel housing for use in mobile machines
Large operating temperature range and high protection rating
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range | 0...400 bar 0...40000 kPa |
| 0...400 bar | 0...40000 kPa |
| Process connection | threaded connection G 1/4 external thread |
Application
| Application | for mobile applications |
|---|---|
| Media | liquids and gases |
| Medium temperature[°C] [°C] | -25...90; (on request: -40...100 °C) |
| Min. burst pressure | 1600 bar 160 MPa |
| 1600 bar | 160 MPa |
| Pressure rating | 600 bar 60 MPa |
| 600 bar | 60 MPa |
| Type of pressure | relative pressure |
Electrical data
| Operating voltage[V] [V] | 5 DC; (ratiometric) |
|---|---|
| Current consumption[mA] [mA] | < 6 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (80 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue voltage output[V] [V] | 0.5...4.5 |
| Min. load resistance[Ω] [Ω] | 5000 |
Measuring/setting range
| Measuring range | 0...400 bar 0...40000 kPa |
|---|---|
| 0...400 bar | 0...40000 kPa |
Accuracy / deviations
| Repeatability[% of the span] [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation[% of the span] [% of the span] | < ± 1,0; (incl. drift when overtightened, zero point and span error) |
| Linearity deviation[% of the span] [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS) |
| Hysteresis deviation[% of the span] [% of the span] | < ± 0,2 |
| Long-term stability[% of the span] [% of the span] | < ± 0,1; (per 6 months) |
| Temperature drift per 10 K | < ± 0.5 |
Response times
| Step response time analogue output[ms] [ms] | 8 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC | immunity according to the automotive directive 1995/54/EC ISO 11452-2 100 V/m ISO 11452-4 100 mA / severity level 4 DIN EN 61000-4-2 ESD 4 kV CD / 8 kV AD DIN EN 61000-6-2 radiation of interference CISPR 25 DIN EN 61000-6-3 |
|---|---|
| immunity | according to the automotive directive 1995/54/EC |
| ISO 11452-2 | 100 V/m |
| ISO 11452-4 | 100 mA / severity level 4 |
| DIN EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) |
| DIN EN 60068-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 3896 |
| UL approval | UL approval no. J04X |
| UL approval no. | J04X |
Mechanical data
| Weight[g] [g] | 80.5 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 22 / L = 65.1 |
| Materials | stainless steel (316L/1.4404); PA |
| Materials (wetted parts) | stainless steel (316L/1.4404); FKM |
| Min. pressure cycles | 50 million |
| Process connection | threaded connection G 1/4 external thread |
| Restrictor element integrated | yes |
Remarks
| Remarks | BFSL = Best Fit Straight Line LS = limit value setting |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
