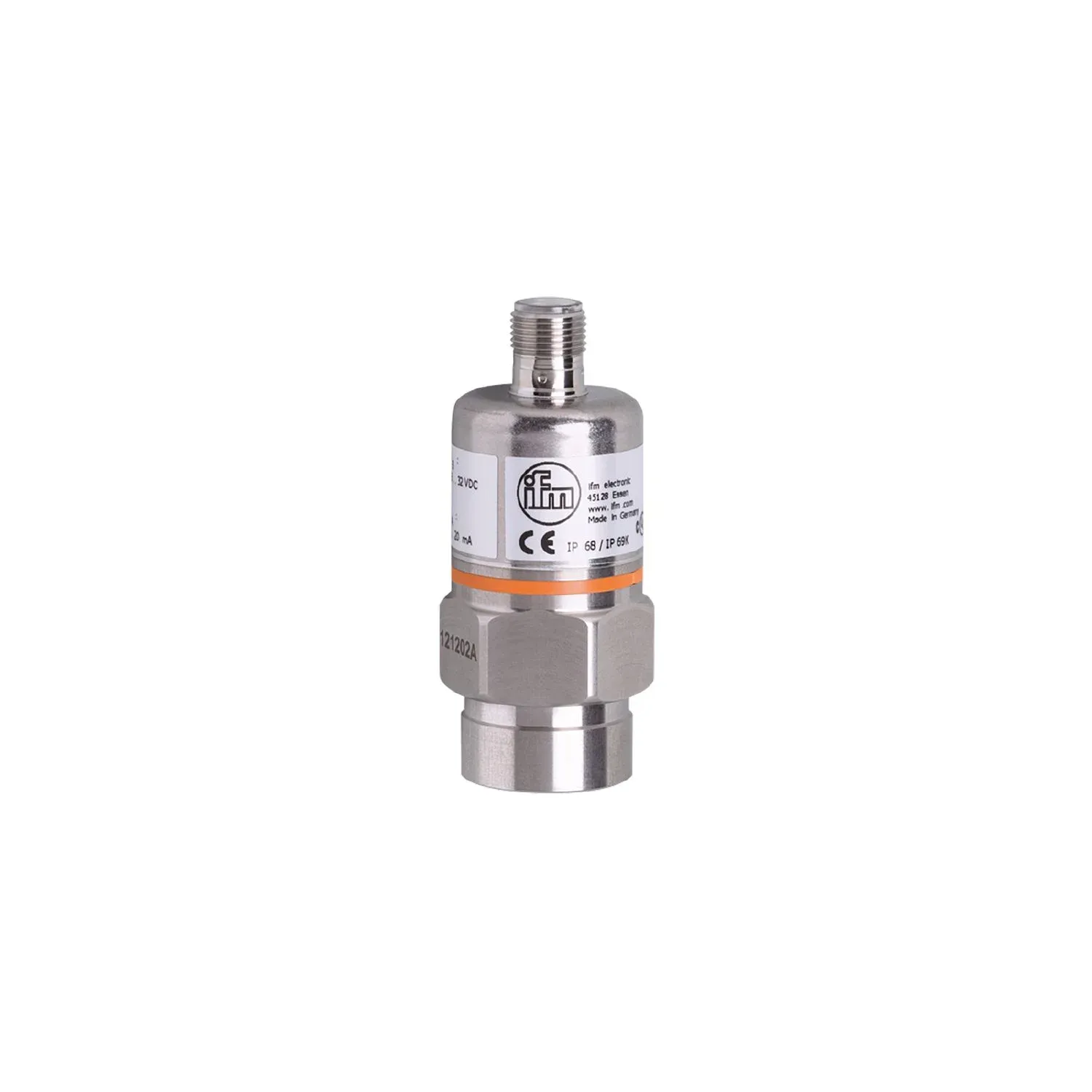

IFM PA9021
PA9021
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise linear 0…10 V output signal
High repeatability and low linearity error
With long-term stability thanks to high overload protection
Robust stainless steel housing for use in harsh industrial environments
Large operating temperature range and high protection rating
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range | 0...250 bar 0...3625 psi 0...25 MPa |
| 0...250 bar | 0...3625 psi |
| Process connection | threaded connection G 1/4 internal thread |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for industrial applications |
| Media | liquids and gases |
| Conditionally suitable for | use in gases at pressures > 25 bar only on request |
| Medium temperature[°C] [°C] | -25...90; (on request: -40...90 °C) |
| Min. burst pressure | 850 bar 12300 psi 85 MPa |
| 850 bar | 12300 psi |
| Pressure rating | 400 bar 5800 psi 40 MPa |
| 400 bar | 5800 psi |
| Type of pressure | relative pressure |
Electrical data
| Operating voltage[V] [V] | 16...32 DC |
|---|---|
| Current consumption[mA] [mA] | < 18 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue voltage output[V] [V] | 0...10 |
| Min. load resistance[Ω] [Ω] | 2000 |
| Overload protection | yes |
Measuring/setting range
| Measuring range | 0...250 bar 0...3625 psi 0...25 MPa |
|---|---|
| 0...250 bar | 0...3625 psi |
Accuracy / deviations
| Repeatability[% of the span] [% of the span] | < 0,1; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation[% of the span] [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Long-term stability[% of the span] [% of the span] | < ± 0,05; (per 6 months) |
| Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K] | 0,1; (0...80 °C) |
| Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K] | 0,2; (0...80 °C) |
Response times
| Step response time analogue output[ms] [ms] | 3 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 30 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V radiation of interference according to the automotive directive 2004/104/EC CISPR 25 immunity according to the automotive directive 2004/104/EC ISO 11452-2 HF radiated 100 V/m ISO 7637-2 pulse severity level 4 |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 30 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| radiation of interference | according to the automotive directive 2004/104/EC |
| immunity | according to the automotive directive 2004/104/EC |
| ISO 11452-2 HF radiated | 100 V/m |
| ISO 7637-2 pulse | severity level 4 |
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) DIN EN 61373 category 3 |
| DIN EN 60068-2-27 | 50 g (11 ms) |
| DIN EN 61373 | category 2 |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) DIN EN 61373 category 2 |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 478 |
| UL approval | UL approval no. J008 |
| UL approval no. | J008 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Railway applications | DIN EN 50155 / IEC 60571 Klasse T3, C1, S1 |
| DIN EN 50155 / IEC 60571 | Klasse T3, C1, S1 |
Mechanical data
| Weight[g] [g] | 224 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 30 / L = 75 |
| Materials | stainless steel (316L/1.4404); FKM; PA; EPDM/X |
| Materials (wetted parts) | stainless steel (303/1.4305); ceramics; FKM |
| Min. pressure cycles | 100 million |
| Process connection | threaded connection G 1/4 internal thread |
| Restrictor element integrated | no (can be retrofitted) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
