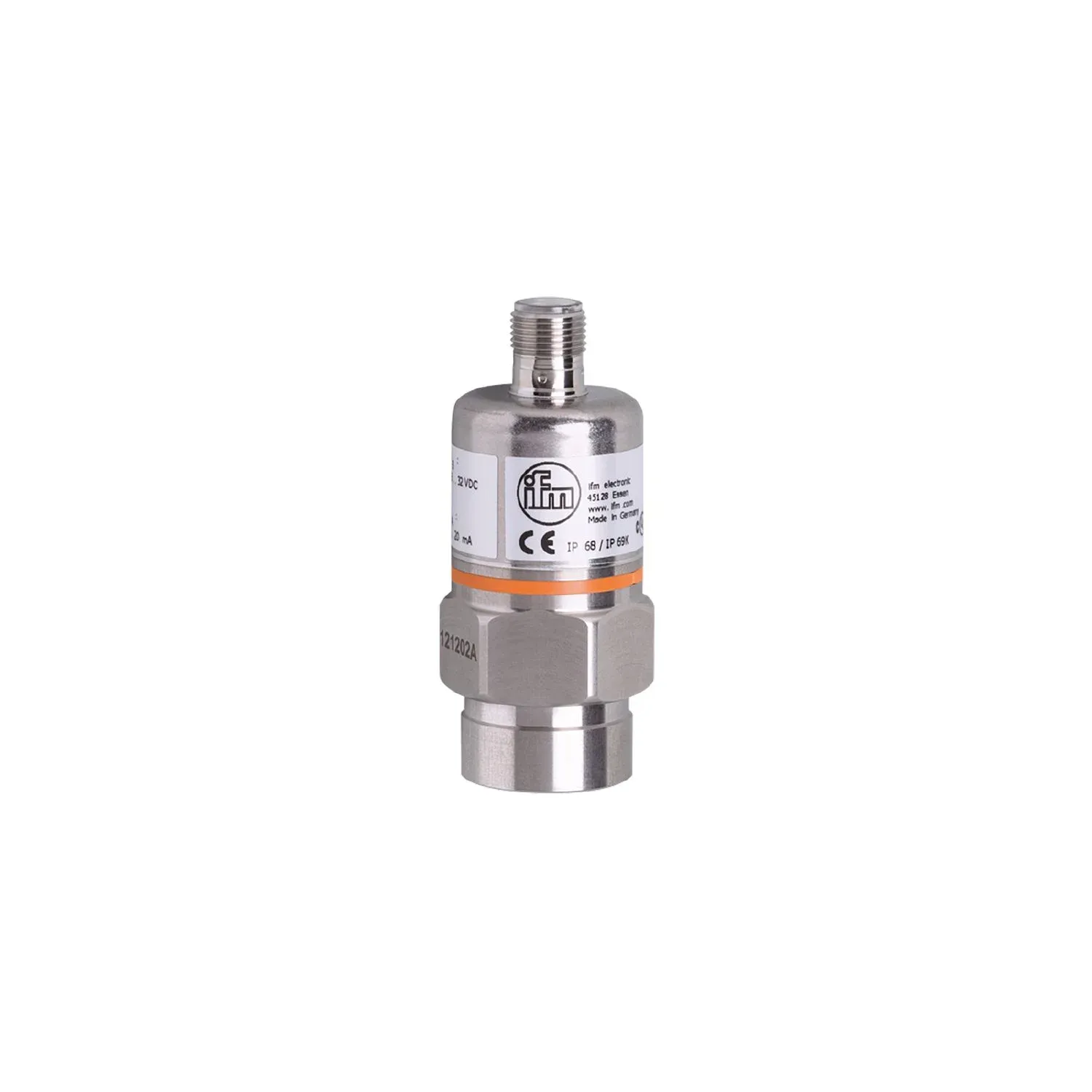

IFM PA6229
PA6229
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise linearised output signal
High repeatability and low linearity error
With long-term stability thanks to high overload protection
Robust stainless steel housing for use in harsh industrial environments
Wide operating temperature range
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Measuring range | -1...0 bar -1000...0 mbar -14.5...0 psi -100...0 kPa |
| -1...0 bar | -1000...0 mbar |
| Process connection | threaded connection 1/4" NPT internal thread |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for industrial applications |
| Media | liquids and gases |
| Medium temperature[°C] [°C] | -25...90; (on request: -40...90 °C) |
| Min. burst pressure | 30 bar 435 psi 3 MPa |
| 30 bar | 435 psi |
| Pressure rating | 10 bar 145 psi 1 MPa |
| 10 bar | 145 psi |
| Type of pressure | relative pressure; vacuum |
Electrical data
| Operating voltage[V] [V] | 9.6...32 DC |
|---|---|
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 20...4 |
| Max. load[Ω] [Ω] | 720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA) |
| Overload protection | yes |
Measuring/setting range
| Measuring range | -1...0 bar -1000...0 mbar -14.5...0 psi -100...0 kPa |
|---|---|
| -1...0 bar | -1000...0 mbar |
Accuracy / deviations
| Repeatability[% of the span] [% of the span] | < 0,1; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation[% of the span] [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Long-term stability[% of the span] [% of the span] | < ± 0,05; (per 6 months) |
| Temperature coefficient zero point[% of the span / 10 K] [% of the span / 10 K] | 0,1; (0...80 °C) |
| Temperature coefficient span[% of the span / 10 K] [% of the span / 10 K] | 0,2; (0...80 °C) |
Response times
| Step response time analogue output[ms] [ms] | 3 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 65 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 30 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V radiation of interference according to the automotive directive 2004/104/EC / CISPR 25 immunity according to the automotive directive 2004/104/EC / ISO 11452-2 HF radiated 100 V/m pulse resistance ISO 7637-2 / severity level 3 |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 30 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| radiation of interference | according to the automotive directive 2004/104/EC / CISPR 25 |
| immunity | according to the automotive directive 2004/104/EC / ISO 11452-2 |
| HF radiated | 100 V/m |
| pulse resistance | ISO 7637-2 / severity level 3 |
| Shock resistance | DIN IEC 68-2-27 50 g (11 ms) |
| DIN IEC 68-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN IEC 68-2-6 20 g (10...2000 Hz) |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 506 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 221.5 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 30 / L = 75 |
| Materials | stainless steel (316L/1.4404); FKM; PA; EPDM/X |
| Materials (wetted parts) | stainless steel (303/1.4305); ceramics; FKM |
| Min. pressure cycles | 100 million |
| Process connection | threaded connection 1/4" NPT internal thread |
| Restrictor element integrated | no (can be retrofitted) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
