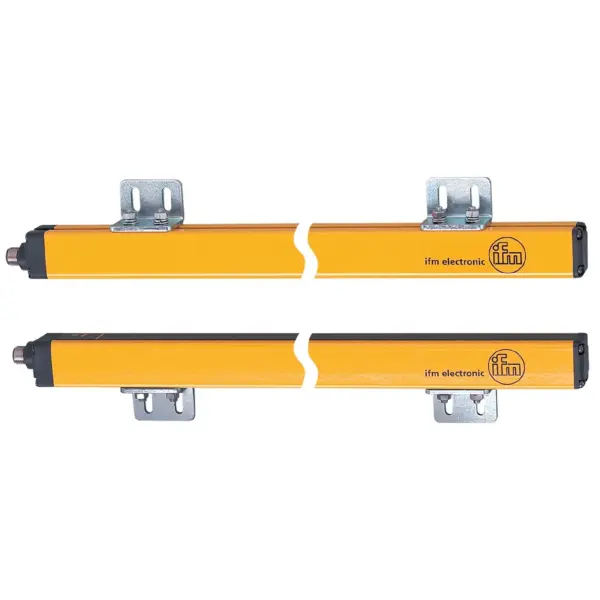

IFM OY061S
OY061S
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable protection of hazardous areas and gates
Complies with the requirements of type 4 to IEC 61496
Wide range selectable on the unit
Slim, robust design for use in harsh industrial environments
Easy connection via the tried-and-tested M12 connector
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Electrical design | PNP |
| Protection | IP 65; IP 67 |
Application
| Protective function | access prevention hand protection |
|---|
Electrical data
| Operating voltage tolerance[%] [%] | 20 |
|---|---|
| Operating voltage[V] [V] | 24 DC |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 2 |
| Type of light | infrared light |
| Wave length[nm] [nm] | 950 |
| Current consumption[mA] [mA] | 42 |
Outputs
| Electrical design | PNP |
|---|---|
| Number of OSSD outputs | 2 |
| Max. current load per OSSD output[mA] [mA] | 400; (24 V) |
| Short-circuit protection | yes |
Detection zone
| Protected area height[mm] [mm] | 160 |
|---|---|
| Resolution (detection capacity d)[mm] [mm] | 40 |
| Protection area width (low light intensity)[m] [m] | 0...4 |
| Protection area width (high light intensity)[m] [m] | 3...12 |
Response times
| Response time[ms] [ms] | 3.5 |
|---|
Operating conditions
| Applications | class C to EN 60654-1 sheltered locations |
|---|---|
| Ambient temperature[°C] [°C] | -10...55 |
| Storage temperature[°C] [°C] | -20...70 |
| Max. relative air humidity[%] [%] | 95 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | IEC 61496-1 |
|---|---|
| Shock resistance | IEC 61496-1 |
| Vibration resistance | IEC 61496-1 |
Safety classification
| ESPE type (IEC 61496-1) | 4 |
|---|---|
| Complies with the requirements | ISO 13849-1: 2015 category 4, PL e IEC 61508 SIL 3 IEC 62061 SIL 3 |
| Mission time TM[h] [h] | 175200 |
| PFH[1/h] [1/h] | 6,8E-09 |
Mechanical data
| Weight[g] [g] | 1300 |
|---|---|
| Dimensions[mm] [mm] | 213 x 28 x 30 |
| Materials | housing: aluminium; front pane: PC |
| Length L[mm] [mm] | 213 |
Displays / operating elements
| Display | transmitter 1 x LED receiver 2 x LED |
|---|---|
| transmitter | 1 x LED |
| receiver | 2 x LED |
Accessories
| Items supplied | mounting bracket: 4 slot nuts: 4 Nuts |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - receiver
| Connector | 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 0.34 mm² |
|---|
Electrical connection - transmitter
| Connector | 1 x M12; coding: A |
|---|
