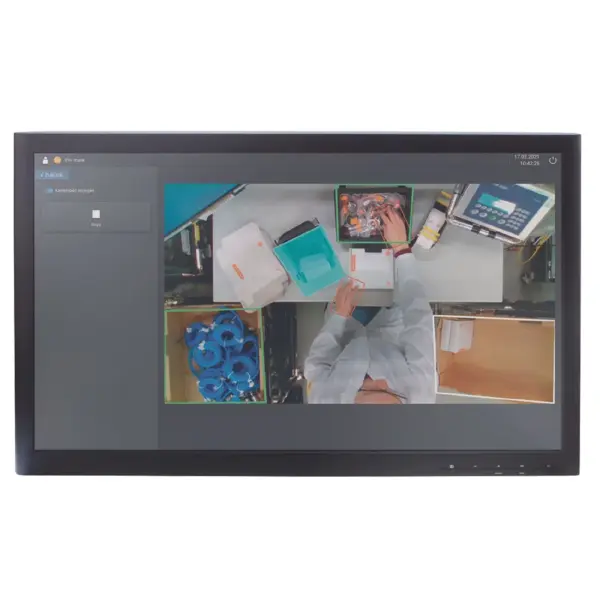

IFM OXZ100
OXZ100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Simple and intuitive set-up of the complete software and hardware package
Simple fitting and retrofitting of manual workstations
Special accessories such as tracking bracelets or VR glasses not required
Individual real-time support during packaging and assembly and for training workers
Visualisation of manual gripping processes and work steps
Specification
Application
| Application | packaging, Montieren und Trainieren an Handarbeitsplätzen |
|---|---|
| Packaging | Visualisation of defined work steps in real time Warning in case of deviation from the defined workflow Individual guidance through the process, oriented to the speed and working method of the worker |
| Assembling | Guidance for manual gripping processes in real time Showing digital assembly information matching the current gripping sequence Warning in case of non-compliance with the specified workflow Flexible deployment of employees in various assembly processes |
| Training | Guiding the employee through the complete workflow Providing detailed work instructions matching the gripping sequence Individual adaptation of the system speed to the worker's learning progress |
| Content description | matching components incl. wiring and power supply |
Outputs
| Number of video outputs | 1; (HDMI: 1) |
|---|
Detection zone
| Field of view size[mm] [mm] | Operating distance field of view 1000 1300 x 700 1500 2000 x 1100 2000 2700 x 1500 |
|---|---|
| Operating distance | field of view |
| 1000 | 1300 x 700 |
| 1500 | 2000 x 1100 |
| 2000 | 2700 x 1500 |
| Operating distance[mm] [mm] | 1000...2000 |
Software / programming
| Language | German; English |
|---|
Interfaces
| Communication interface | Ethernet; USB |
|---|---|
| Number of Ethernet interfaces | 3; (POE: 2x; LAN: 1x) |
| Number of USB interfaces | 5; (4 x USB 3.2; 1 x Micro USB 2.0 (OS-flash)) |
Operating conditions
| Ambient temperature[°C] [°C] | 0...55 |
|---|---|
| Storage temperature[°C] [°C] | -40...70 |
| Max. relative air humidity[%] [%] | 90; (40 °C non condensing) |
| Protection | IP 66; (2D/3D camera) |
Mechanical data
| Weight[g] [g] | 2775 |
|---|
Hardware
| Chip set | NVIDIA Jetson XAVIER NX |
|---|---|
| Processor | 6 Core ARM Carmel V8.2 64bit CPU 6MB L2 + 4MB L3 |
| RAM | 8 GB LPDDR4x |
| Mass storage | 16 GB eMMC |
Accessories
| Items supplied | Box PC; 1, including preinstalled ifm mate software and power supply, ZJF026 2D/3D camera: 1, E21334 Ethernet cable: 1 x M12 - RJ45; 5 m, PUR, E12632 |
|---|
Remarks
| Remarks | For using the system a touch monitor is required which can be ordered as an option. |
|---|---|
| Pack quantity | 1 pcs. |
