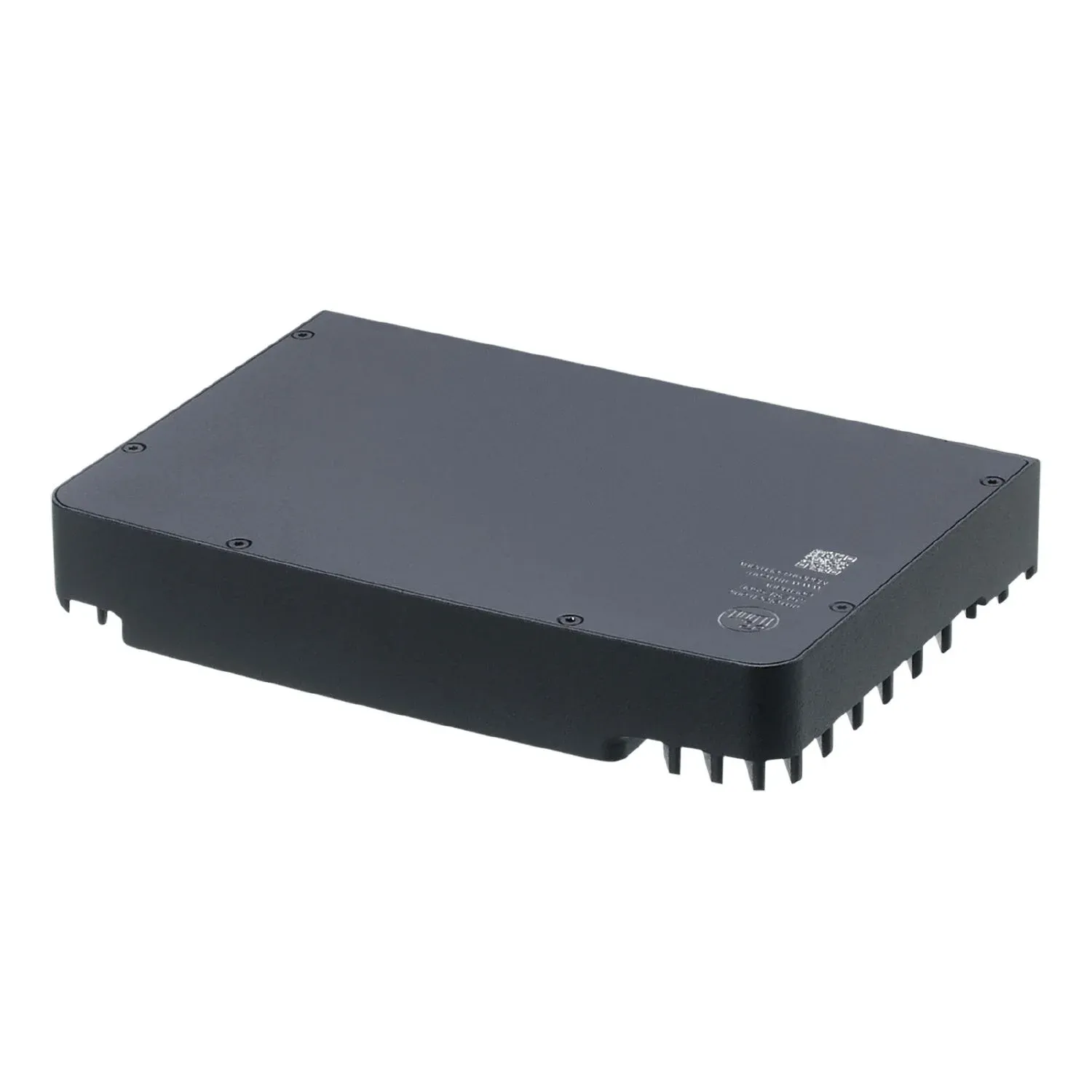

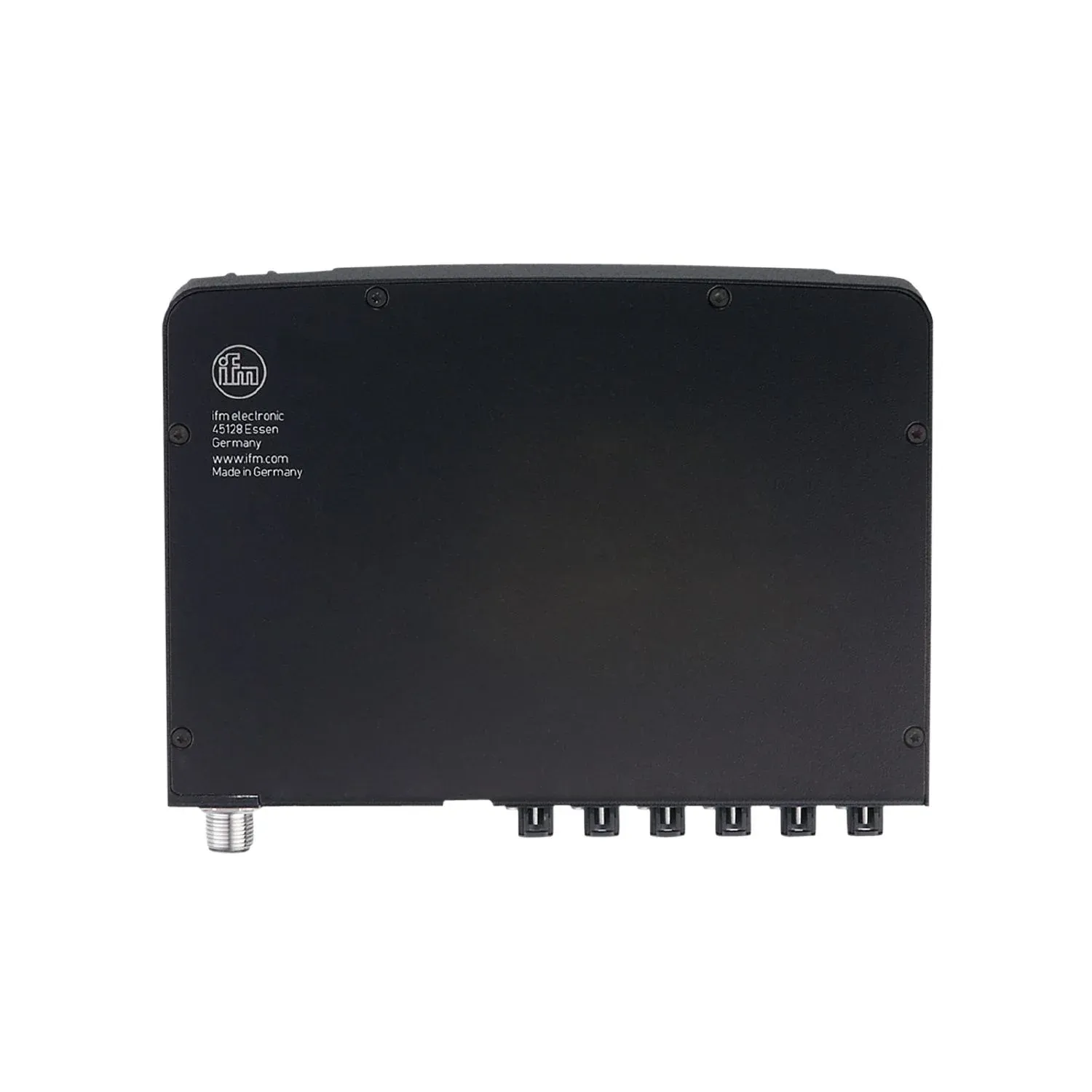

IFM OVP810
OVP810
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Central processing of image and sensor information
Synchronisation of several camera heads for all-round coverage
Standardised SDKs for Docker architecture as well as Python, C++, CUDA and ROS
Latest time-of-flight imager with high extraneous light stability
Specification
Application
| Application | Industrial imaging |
|---|
Electrical data
| Operating voltage[V] [V] | 19.2...28.8 DC |
|---|---|
| Max. current consumption[mA] [mA] | 710 |
| Power consumption[W] [W] | 15.4; (Base value of the VPU. Increase the current/power consumption for each sensor head according to its data sheet. With 3 O3R222 cameras, at 20fps, the maximum current consumption of the system is 2270mA, the average power consumption is 35.8W.) |

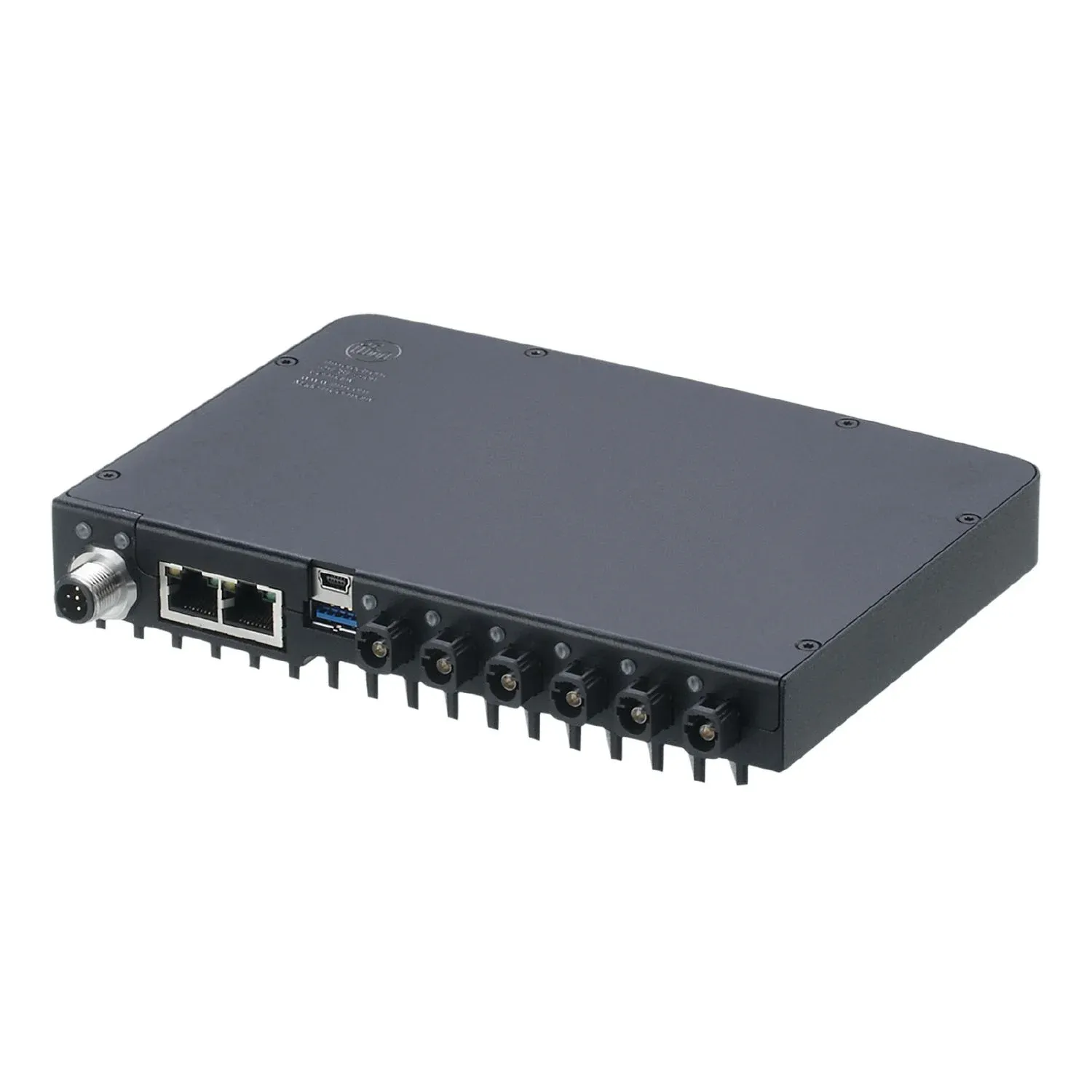

Interfaces
| Number of CAN interfaces | 1 |
|---|---|
| Number of Ethernet interfaces | 2 |
| Number of USB interfaces | 2 |
| Protocol | TCP/IP |
| Transmission standard | FPD-Link |
| Transmission rate | 1000 MBit/s |
| Connector type | Mini-USB; type A |
| Factory settings | IP address: 192.168.42.69 subnet mask: 255.255.255.0 (Class C) gateway IP address: 0.0.0.0 MAC address: see type label |
| Note on interfaces | maximum number of cameras: see operating instructions |
| Version | 2.0; 3.0 |
Operating conditions
| Ambient temperature[°C] [°C] | -10...40 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 50 |
Tests / approvals
| EMC | EN IEC 61000-6-4 radiation of interference / industrial environments EN IEC 61000-6-2 immunity / industrial environments |
|---|---|
| EN IEC 61000-6-4 | radiation of interference / industrial environments |
| EN IEC 61000-6-2 | immunity / industrial environments |
| Shock resistance | DIN EN 60068-2-27 50 g / (11 ms) not repetitive DIN EN 60068-2-27 40 g / (6 ms) repetitive |
| DIN EN 60068-2-27 | 40 g / (6 ms) repetitive |
| Vibration resistance | DIN EN 60068-2-6 2 g / (10...150 Hz) DIN EN 60068-2-64 2.3 g RMS / (10...500 Hz) |
| DIN EN 60068-2-6 | 2 g / (10...150 Hz) |
| DIN EN 60068-2-64 | 2.3 g RMS / (10...500 Hz) |
| Electrical safety | DIN EN 61010-2-201 electrical supply only via PELV circuits |
| DIN EN 61010-2-201 | electrical supply only via PELV circuits |
| MTTF[years] [years] | 44 |
Mechanical data
| Weight[g] [g] | 1285 |
|---|---|
| Dimensions[mm] [mm] | 126.5 x 29 x 180.4 |
| Materials | housing: aluminium |
| Tightening torque[Nm] [Nm] | < 5.5 |
Hardware
| Processor | SOM: NVIDIA Jetson TX2NX 4GB Module CPU: Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor; GPU: 256-core NVIDIA Pascal™ architecture GPU |
|---|---|
| RAM | 4GB 128-bit LPDDR4, 1600 MHz - 51.2 GB/s |
| Mass storage | 32GB eMMC 5.1 Flash (16GB for docker) |
Remarks
| Pack quantity | 1 pcs. |
|---|
