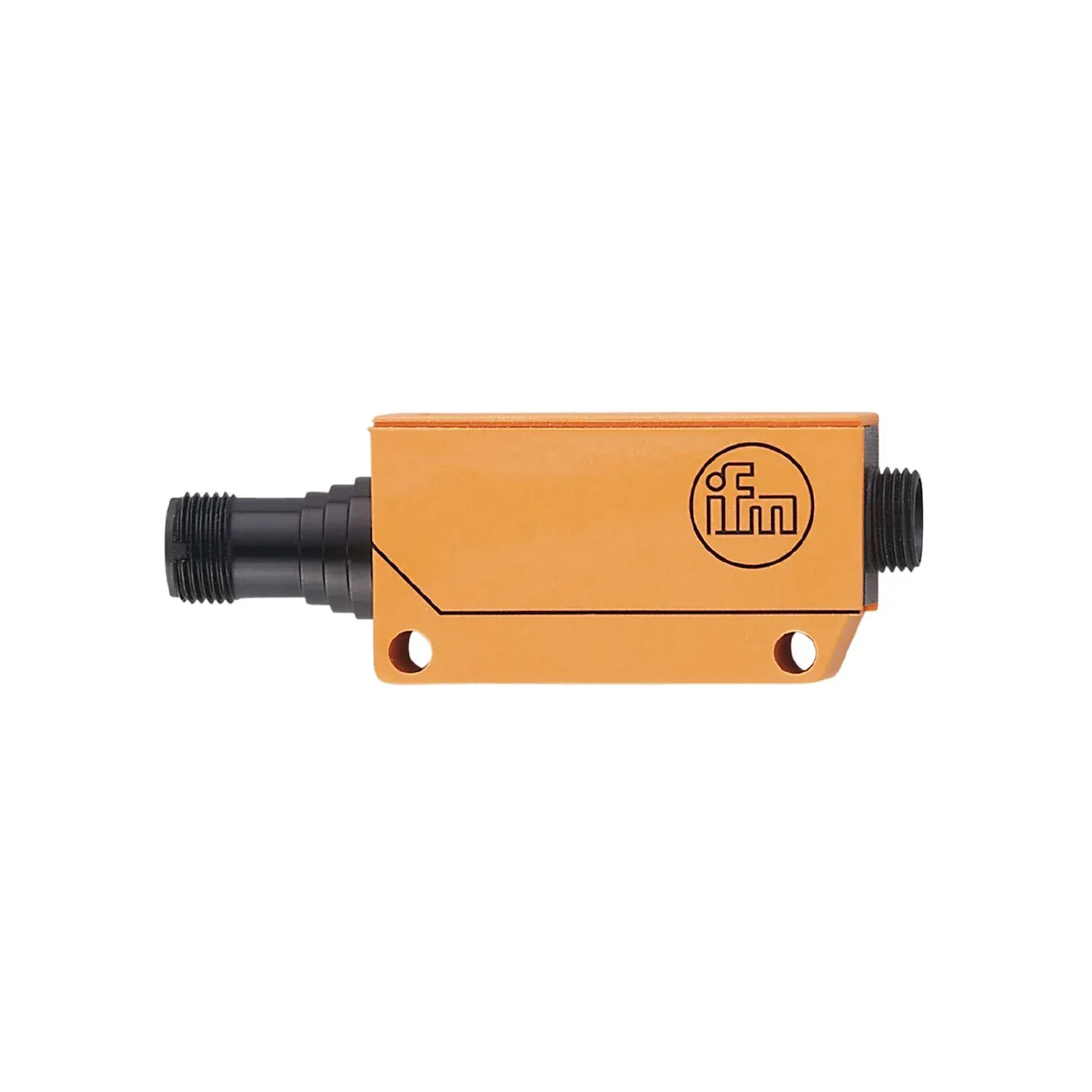

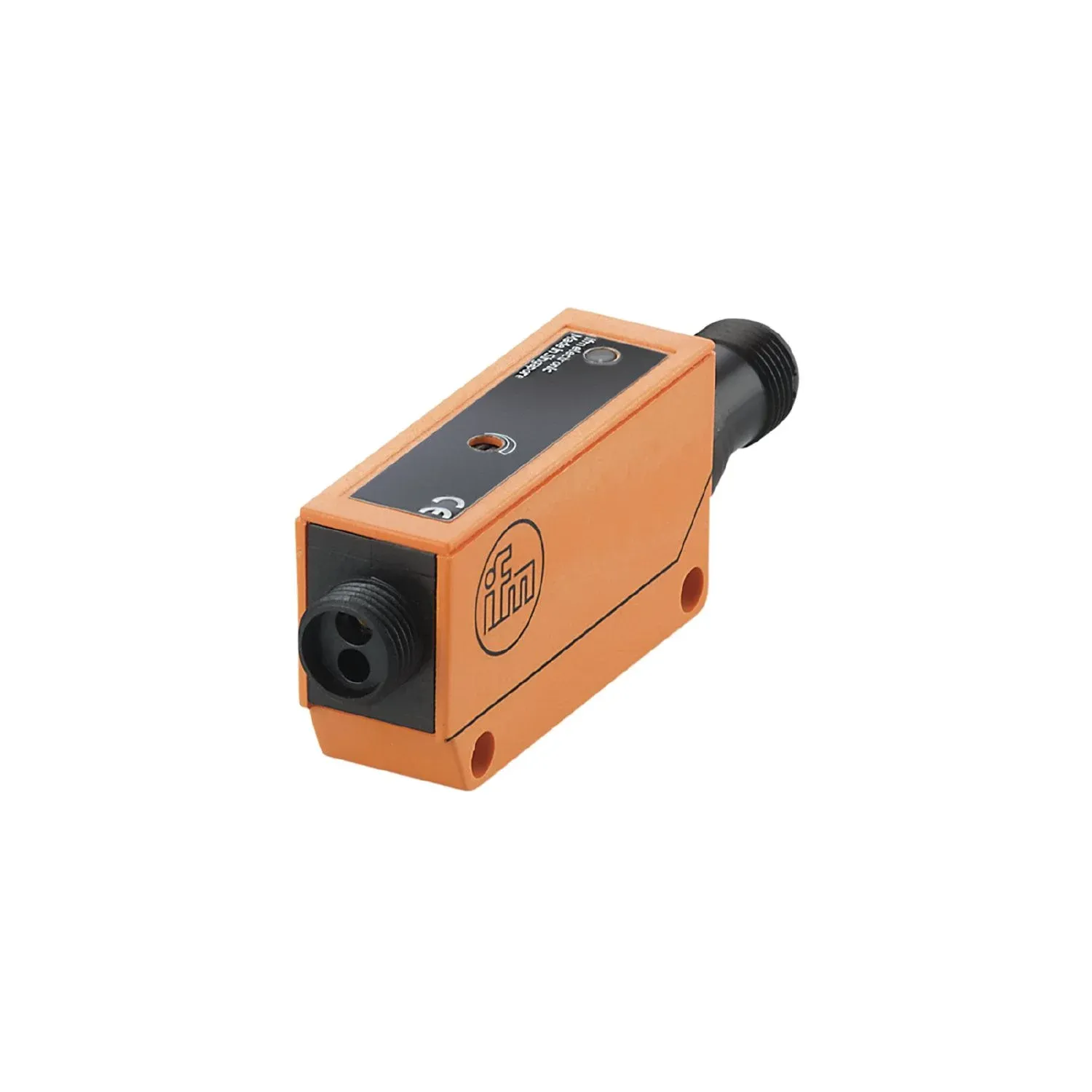

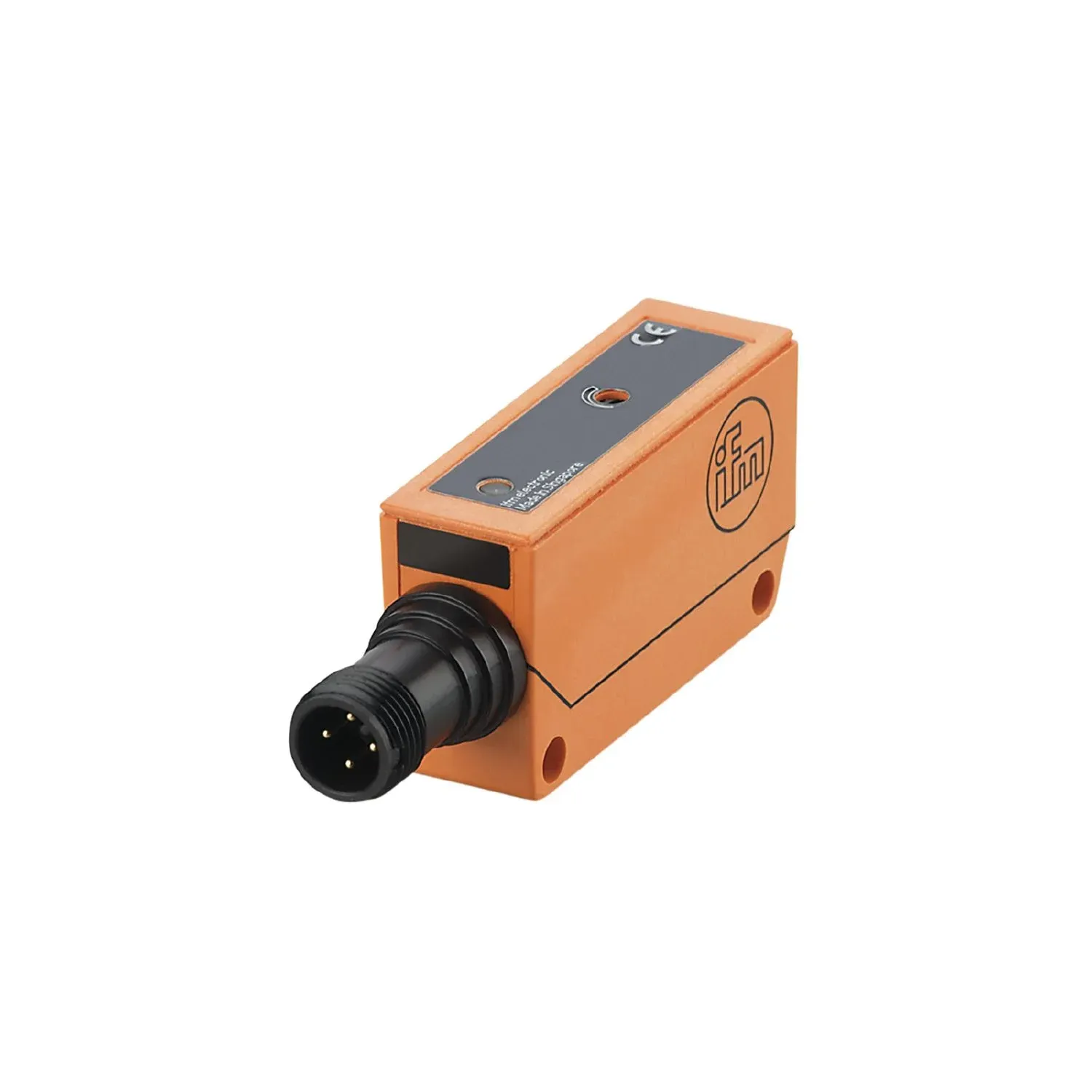

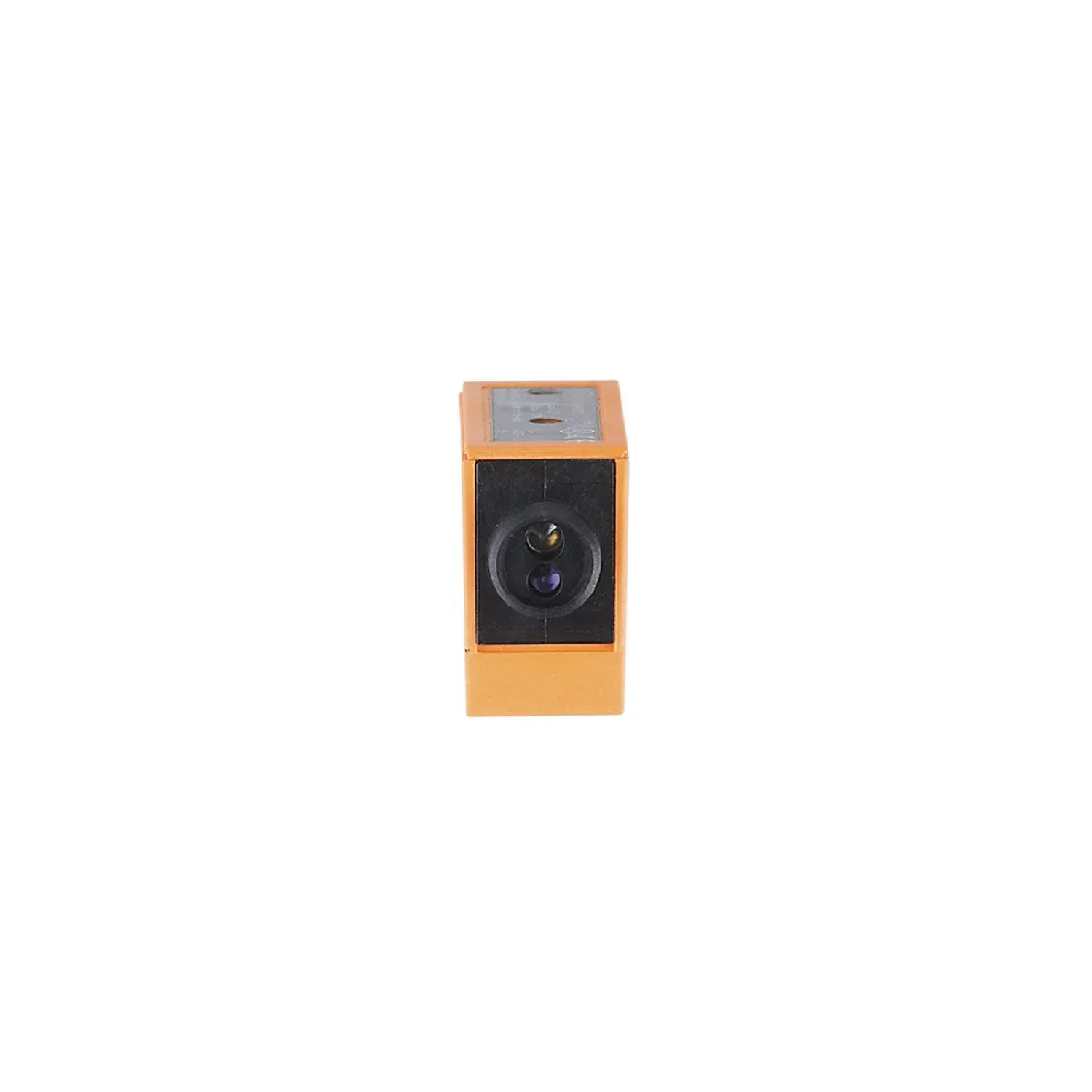

IFM OU5043
OU5043
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Simple connection of the fibre optics to an amplifier
Operation with inexpensive acrylic fibre optics or high-quality glass fibre optics
Clearly visible indication of the switching status
Intuitive setting of the sensitivity via potentiometer
Compact housing for use where space is restricted
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | rectangular |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 35; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length[nm] [nm] | 880 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on mode |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Switching frequency DC[Hz] [Hz] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range[m] [m] | 0...0.12; (Through-beam sensor) |
|---|---|
| Range[mm] [mm] | 0...40; (Diffuse reflection sensor) |
| Range adjustable | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 653 |
Mechanical data
| Weight[g] [g] | 75.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 28 x 16 x 56 |
| Number of channels | 1 |
| Materials | PPO modified |
| Lens material | glass |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | Angle bracket: 1, E20211 screwdrivers |
|---|
Remarks
| Remarks | light-on mode corresponds to the NC output function for through-beam fibre optics corresponds to the NO output function for diffuse-reflection fibre optics |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
