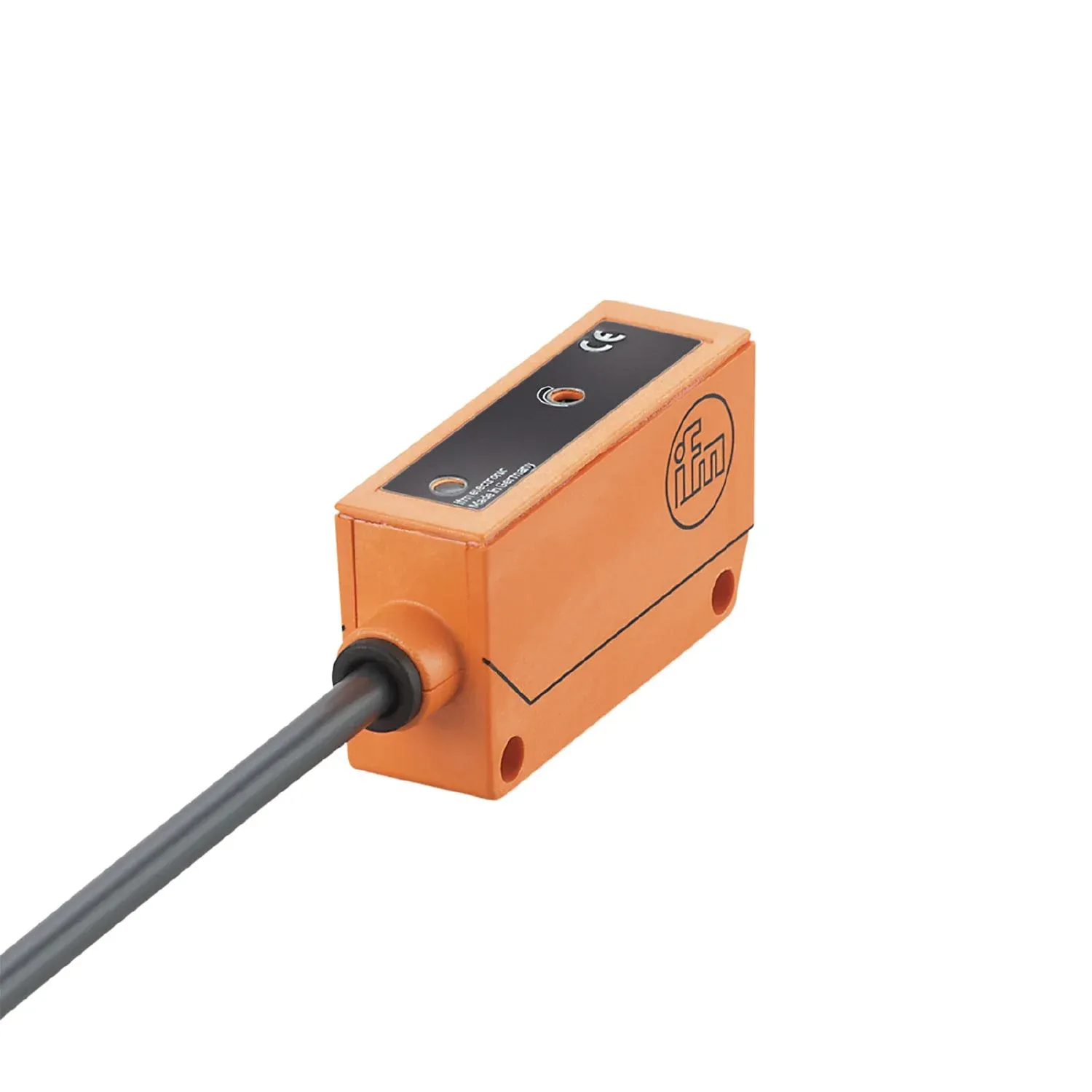

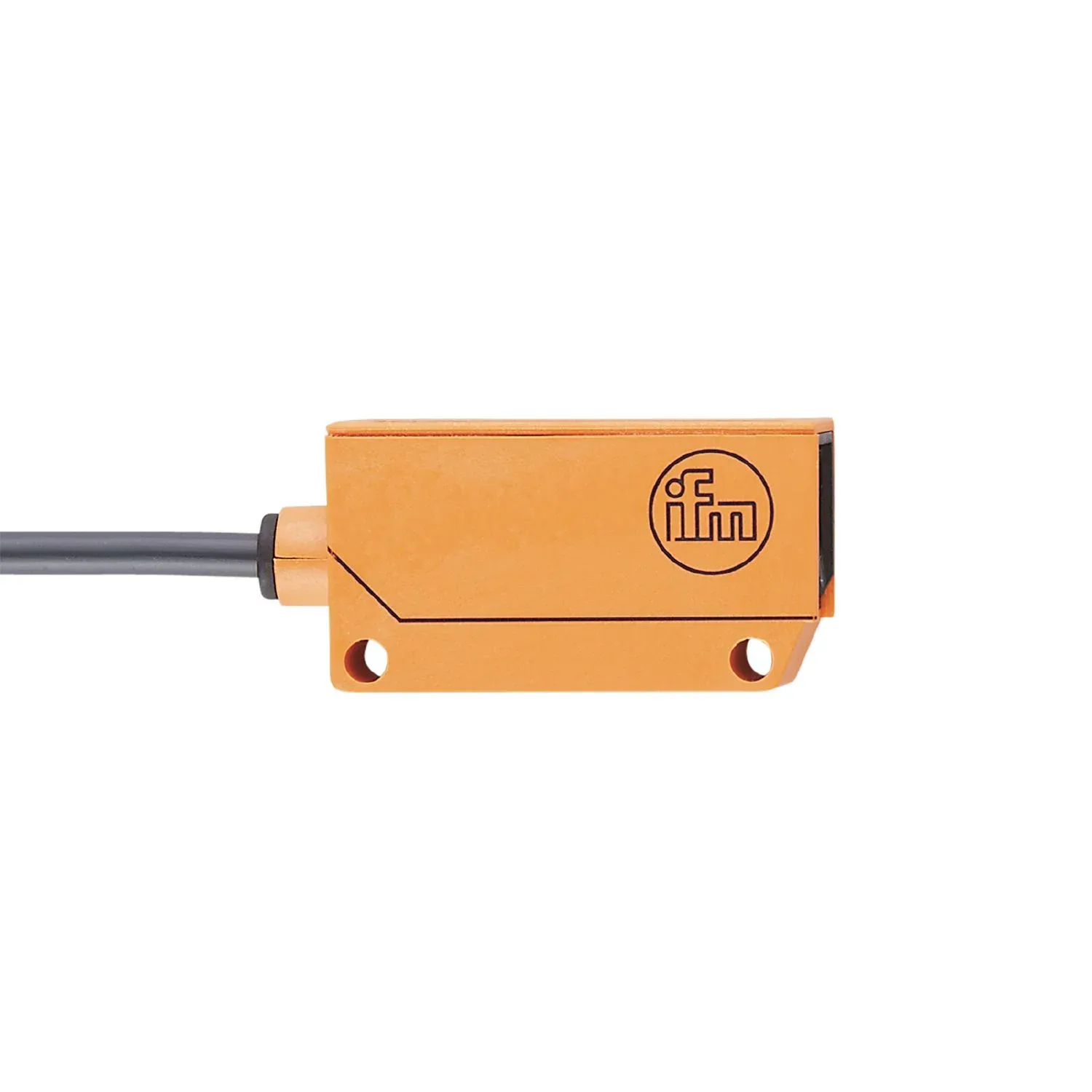

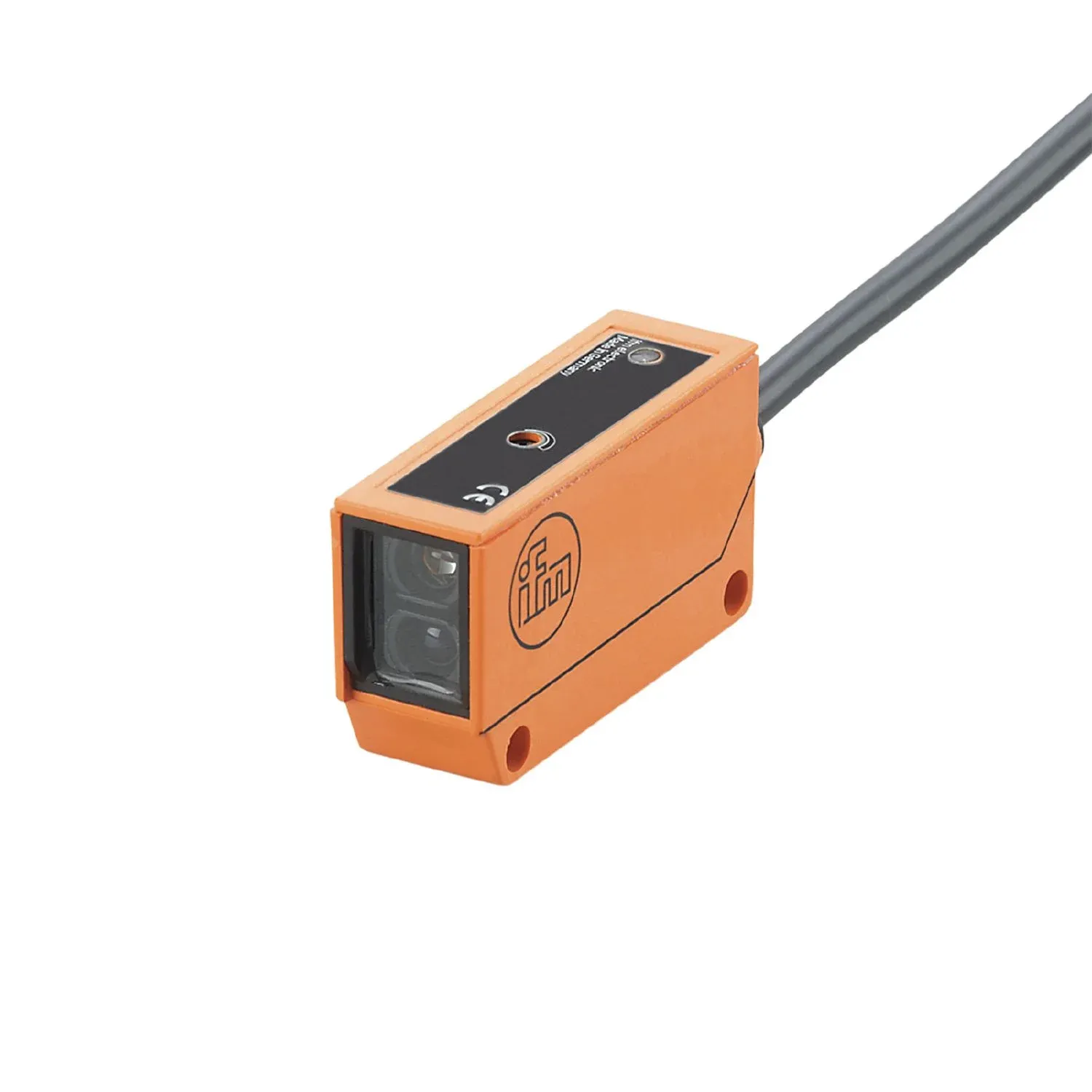

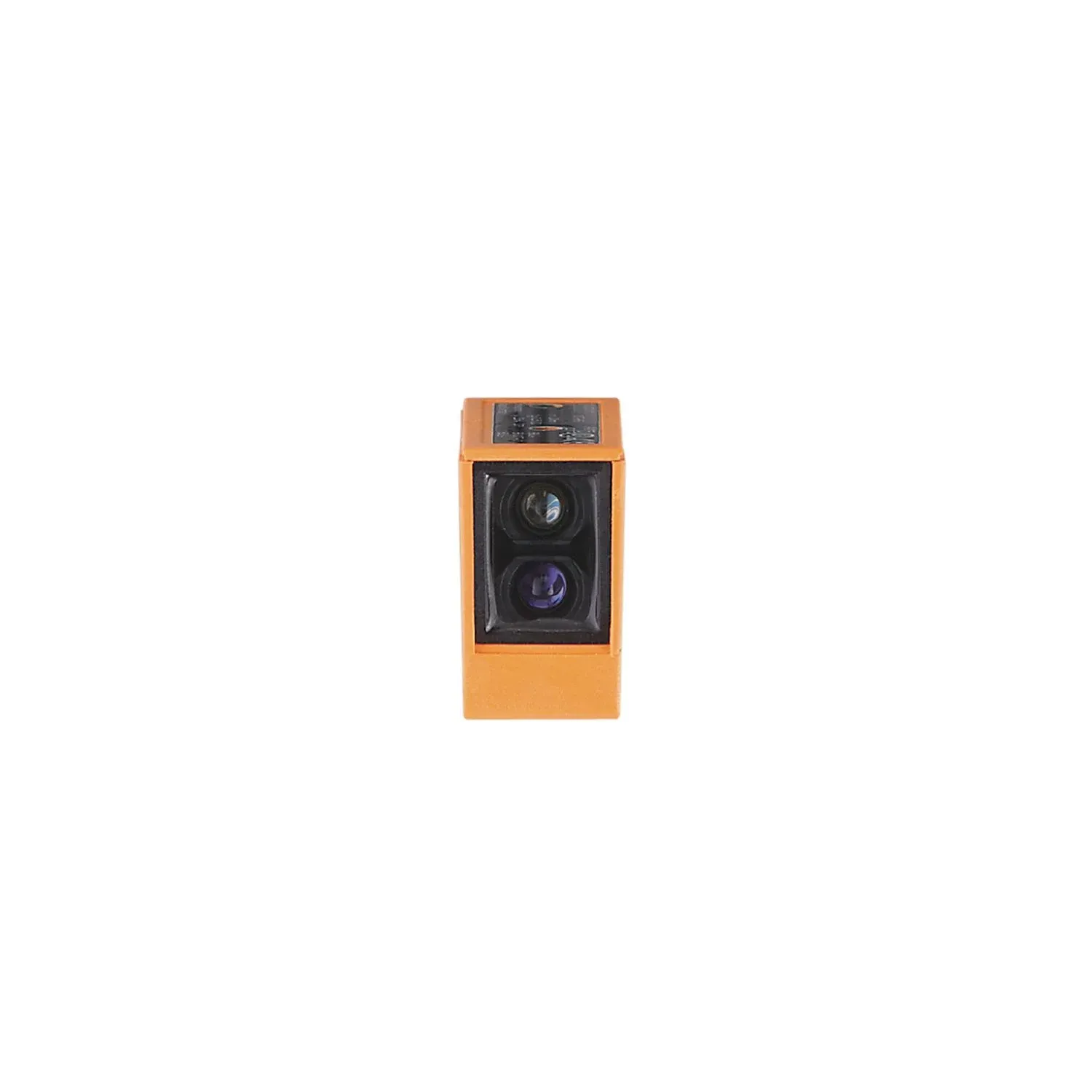

IFM OU5006
OU5006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
Compact housing for use where space is restricted
Intuitive setting of the sensitivity via potentiometer
Clearly visible indication of the switching status
Large operating voltage range
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...55 DC |
|---|---|
| Current consumption[mA] [mA] | 20; ((24 V)) |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length[nm] [nm] | 880 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Switching frequency DC[Hz] [Hz] | 140 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Transmitter / receiver | receiver |
|---|---|
| Range[m] [m] | < 6 |
| Range adjustable | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 618 |
Mechanical data
| Weight[g] [g] | 149.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 28 x 16 x 51 |
| Number of channels | 1 |
| Materials | PPO modified |
| Lens material | glass |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | Angle bracket: 1, E20211 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PVC; 3 x 0.34 mm² |
|---|
