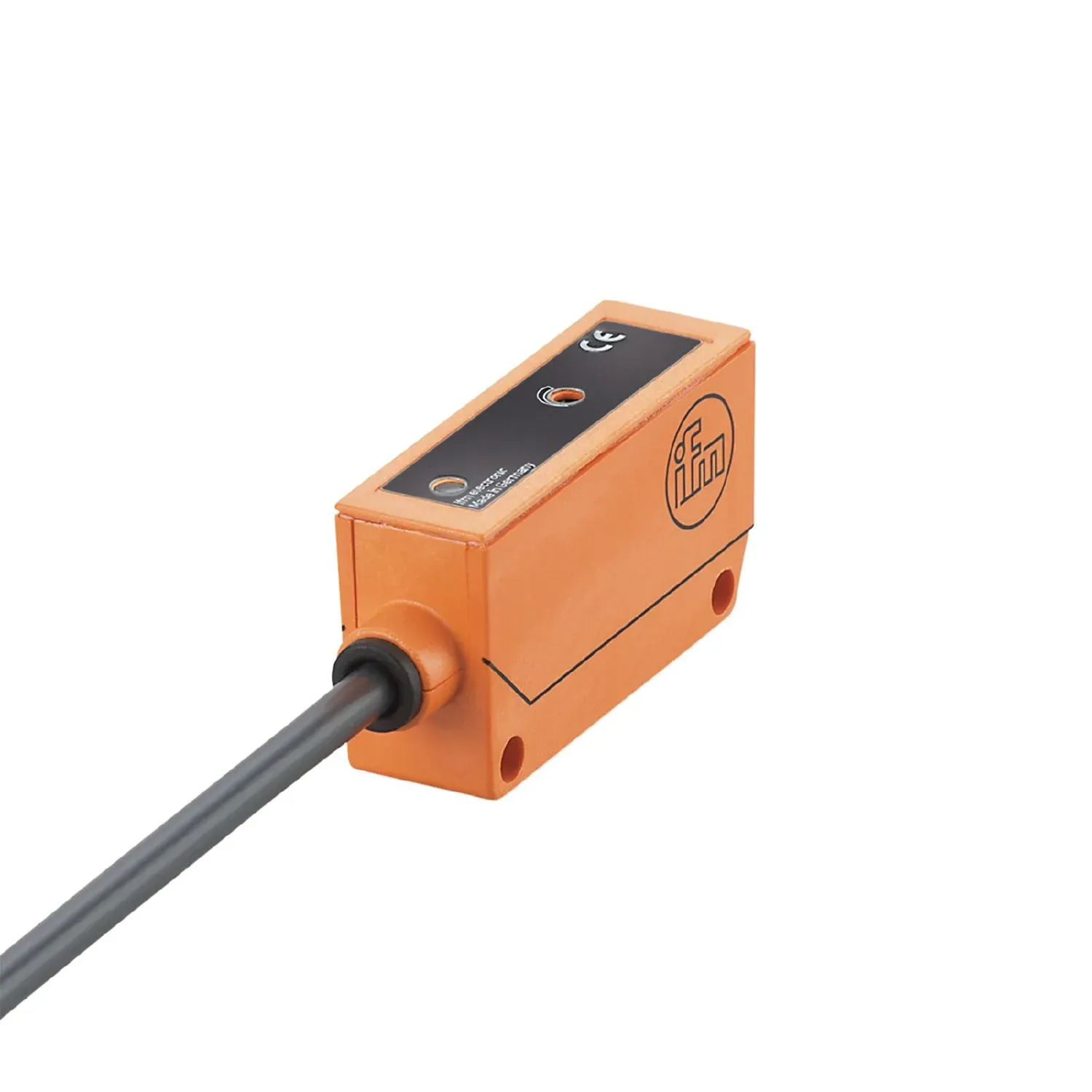

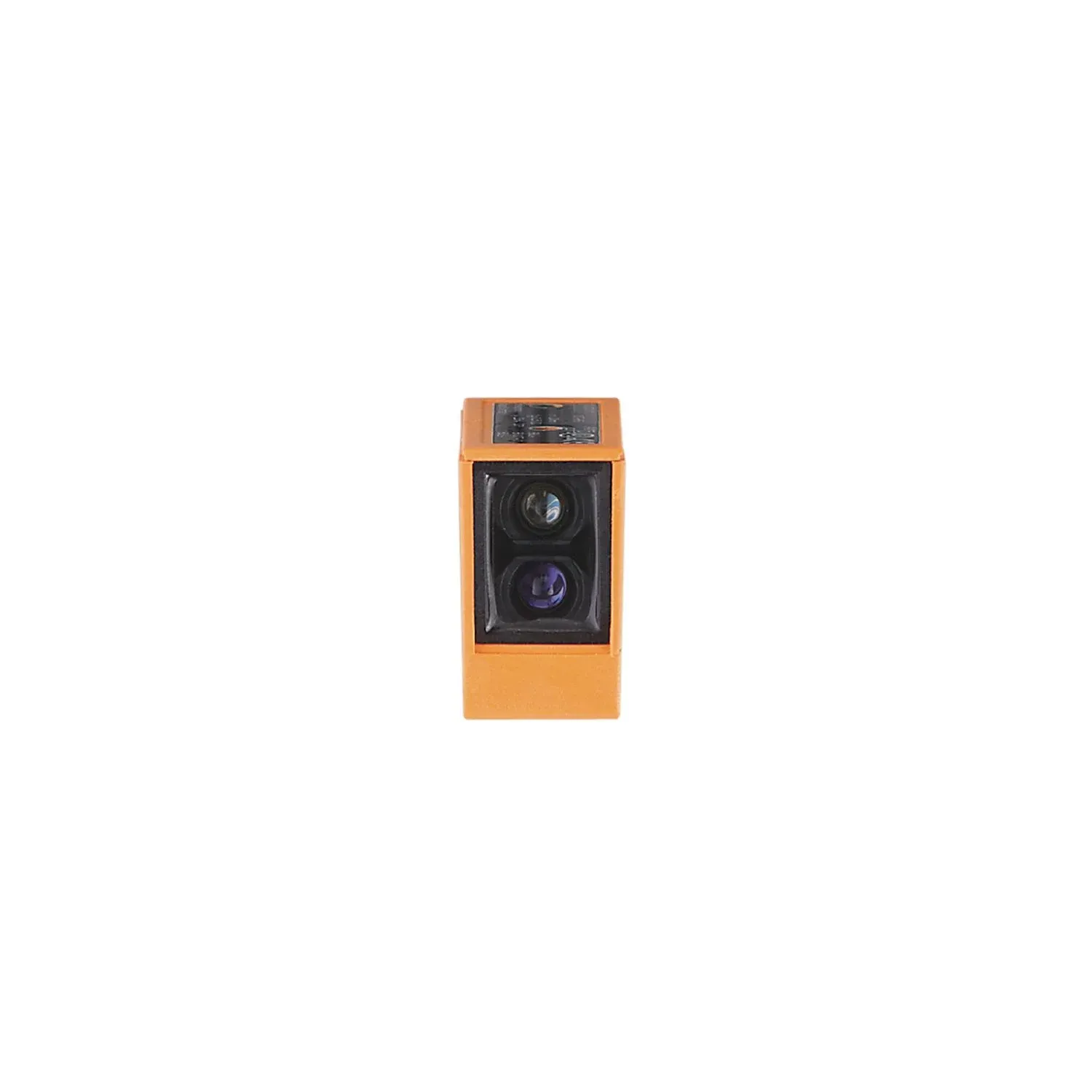

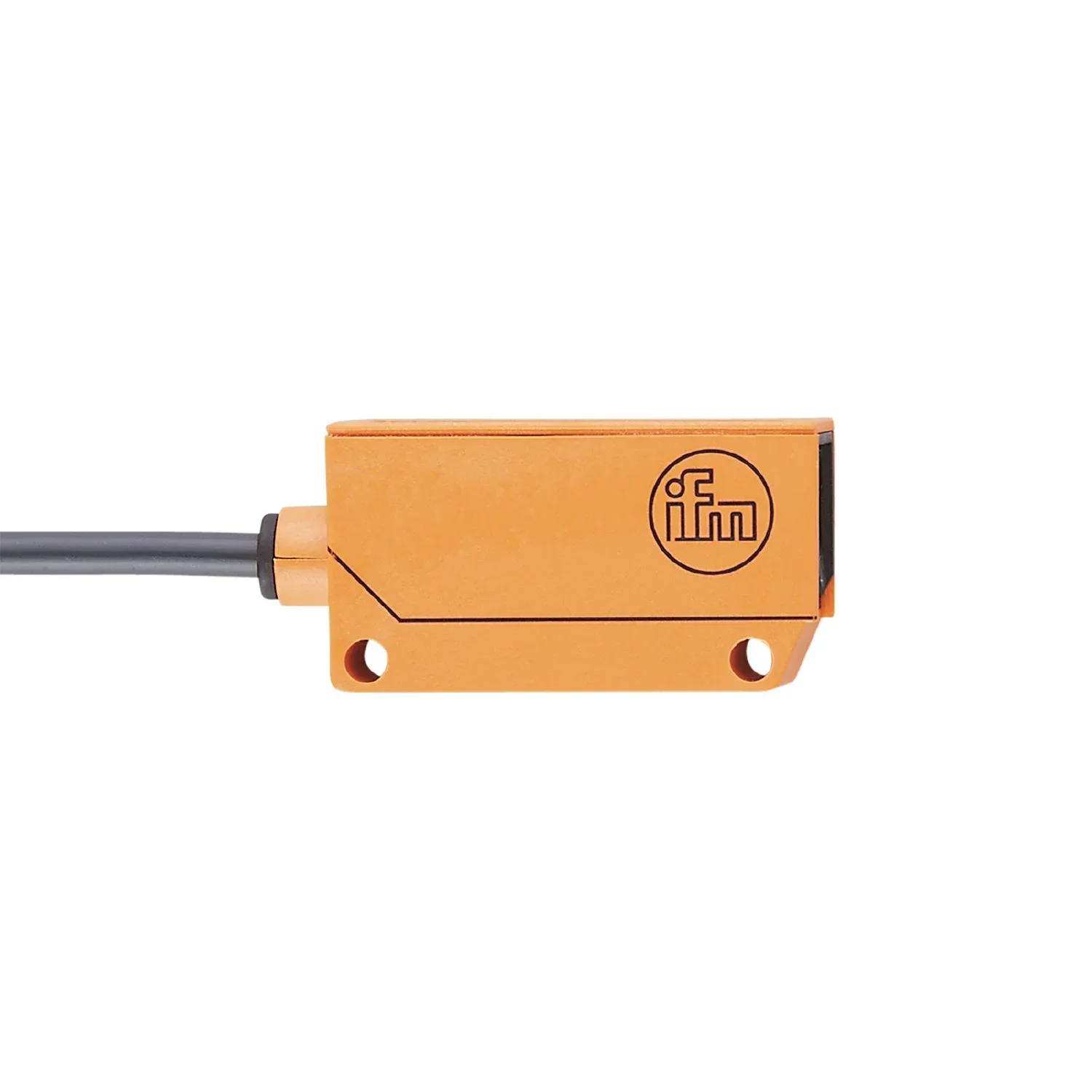

IFM OU5005
OU5005
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
Compact housing for use where space is restricted
High protection rating for the requirements of harsh industrial environments
Large operating voltage range
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...55 DC |
|---|---|
| Current consumption[mA] [mA] | 20; ((24 V)) |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length[nm] [nm] | 880 |
Outputs
| Short-circuit protection | yes |
|---|---|
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range[m] [m] | < 6 |
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 734 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 1801 |
Mechanical data
| Weight[g] [g] | 138 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 28 x 16 x 51 |
| Number of channels | 1 |
| Materials | PPO modified |
| Lens material | glass |
Displays / operating elements
| Display | operation 1 x LED, yellow |
|---|---|
| operation | 1 x LED, yellow |
Accessories
| Items supplied | Angle bracket: 1, E20211 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PVC; 2 x 0.34 mm² |
|---|
