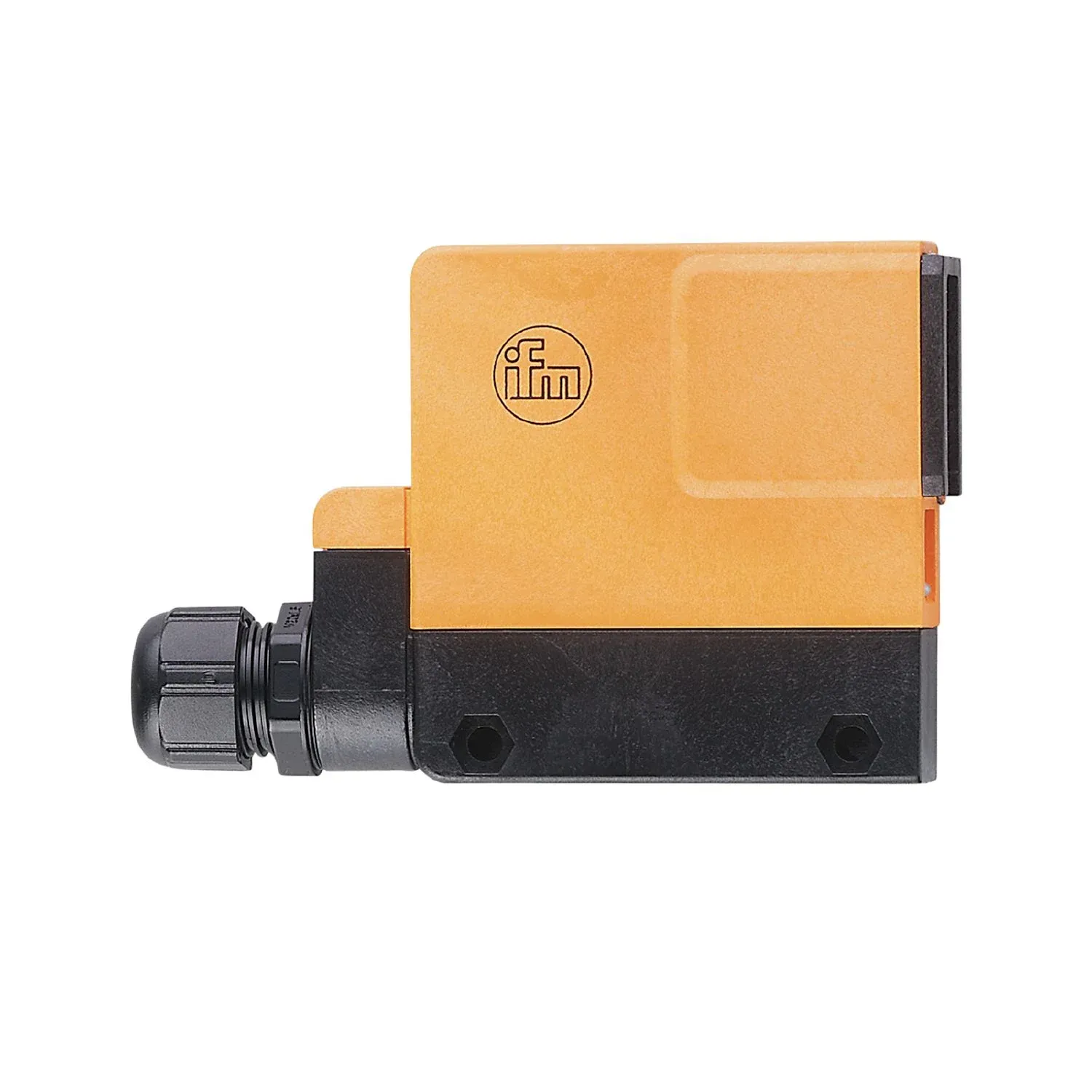

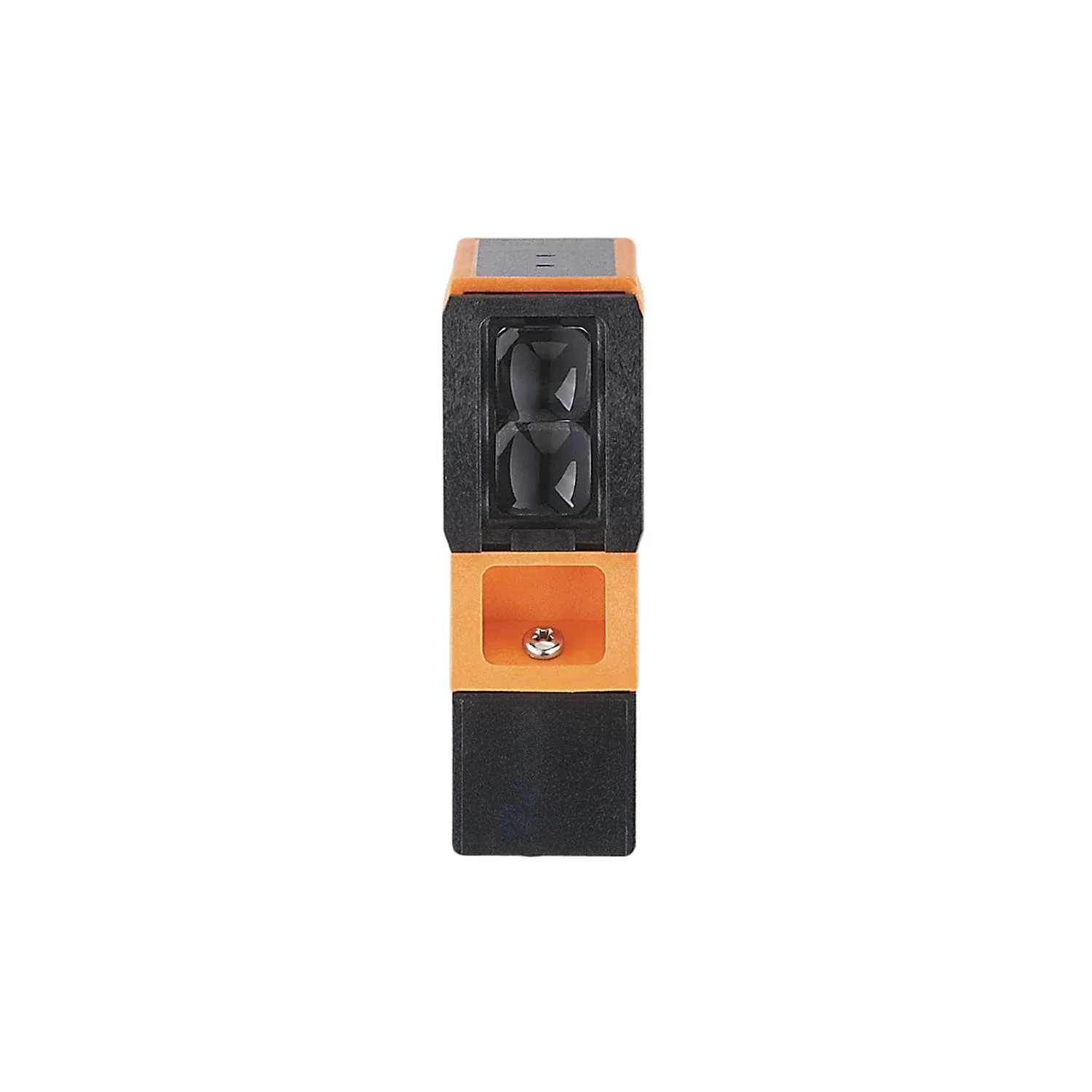

IFM OS0025
OS0025
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
Programmable light-on/dark-on mode
With combined AC/DC output and two-wire technology
Robust housing for use in harsh industrial environments
Intuitive setting of the sensitivity via potentiometer
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Retro-reflective sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 20...250 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | no |
| Type of light | infrared light |
| Wave length[nm] [nm] | 950 |
Outputs
| Output function | light-on/dark-on mode; (programmable) |
|---|---|
| Minimum load current[mA] [mA] | 15 |
| Max. leakage current[mA] [mA] | 6 |
| Permanent current rating of switching output AC[mA] [mA] | 250; (350 (...50 °C)) |
| Permanent current rating of switching output DC[mA] [mA] | 250; (350 (...50 °C)) |
| Short-time current rating of switching output[mA] [mA] | 2200; (10 ms / 0,5 Hz) |
| Switching frequency AC[Hz] [Hz] | 250 |
| Switching frequency DC[Hz] [Hz] | 250 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Range referred to prismatic reflector[m] [m] | 10; (Prismatic reflector Ø 80 E20005) |
|---|---|
| Range adjustable | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 302 |
Mechanical data
| Weight[g] [g] | 268 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 80 x 28 x 95 |
| Materials | PPO modified |
| Lens material | glass |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Accessories

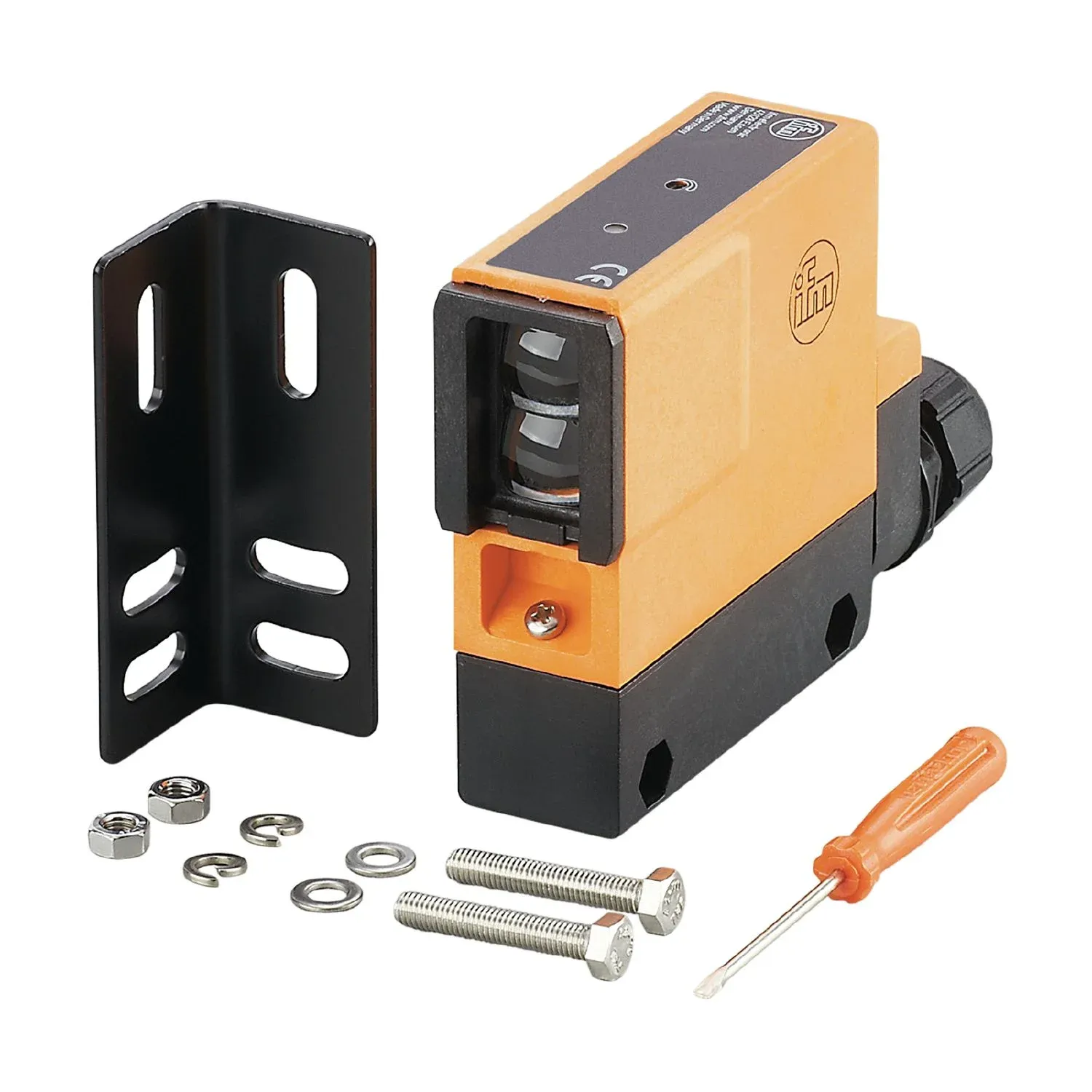

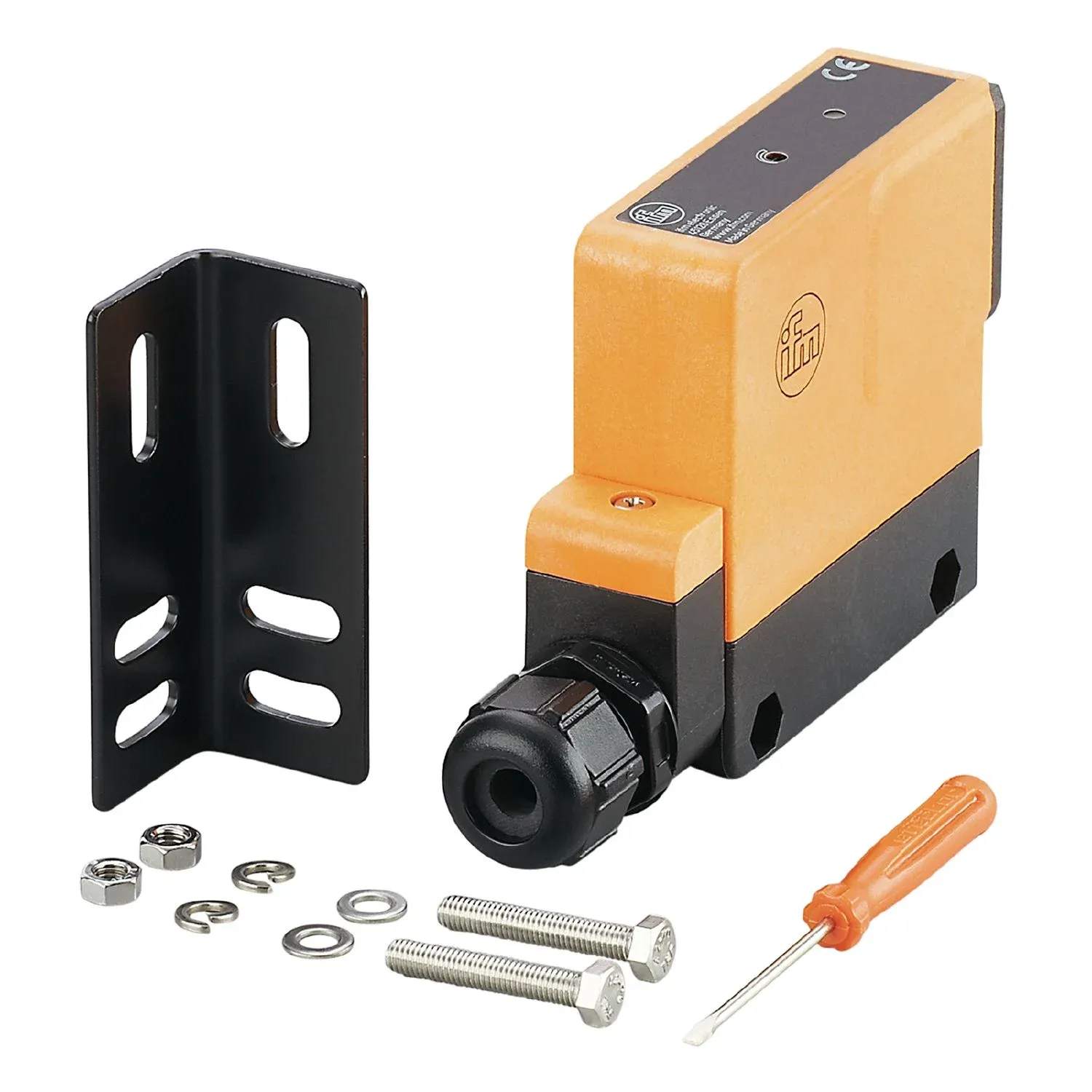

| Items supplied | Angle bracket: 1, E20210 screwdrivers |
|---|
Remarks
| Remarks | Recommendation: Check the safe functioning of the unit after a short circuit. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| terminals | ...1.5 mm²; Cable gland: M20 X 1.5 |
|---|
