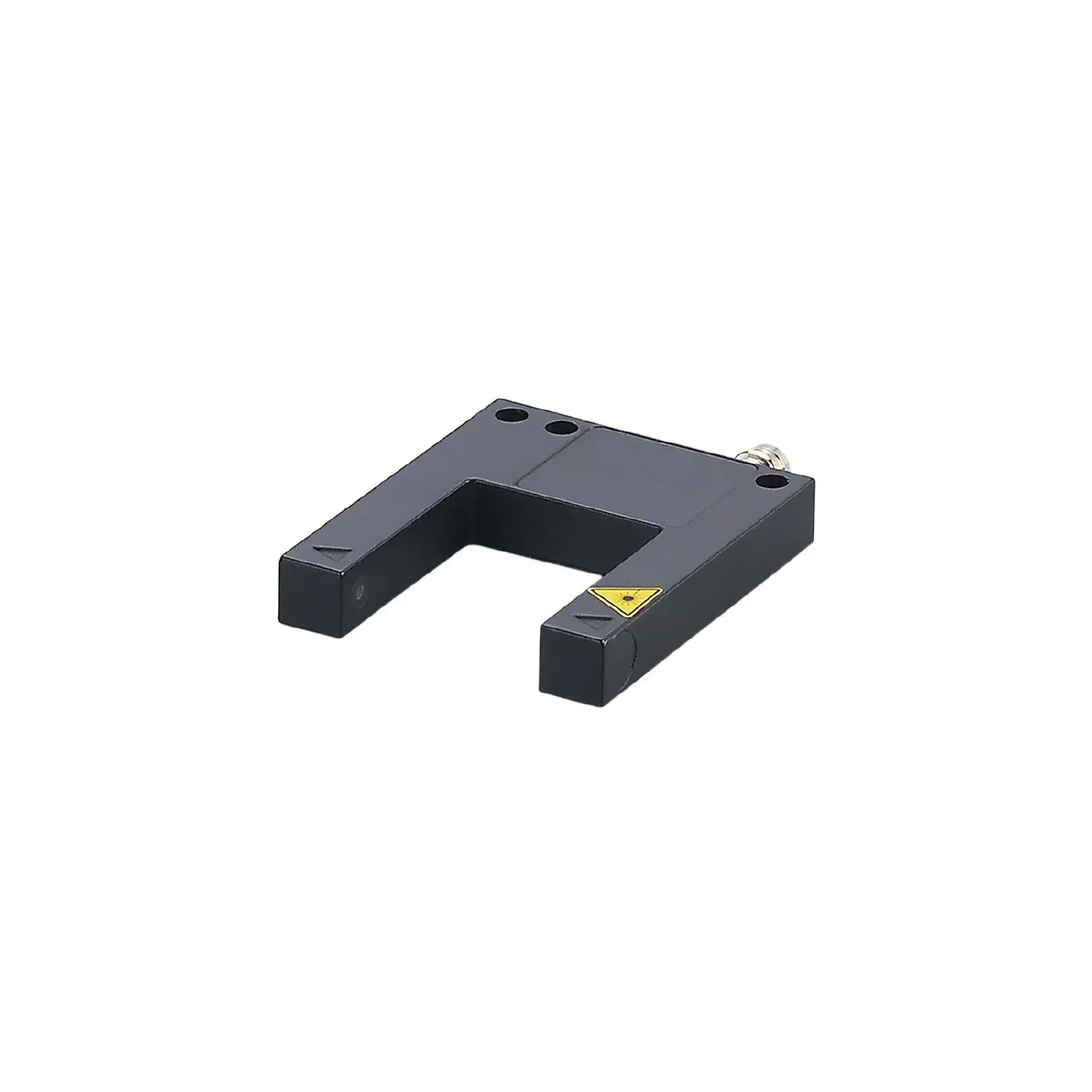

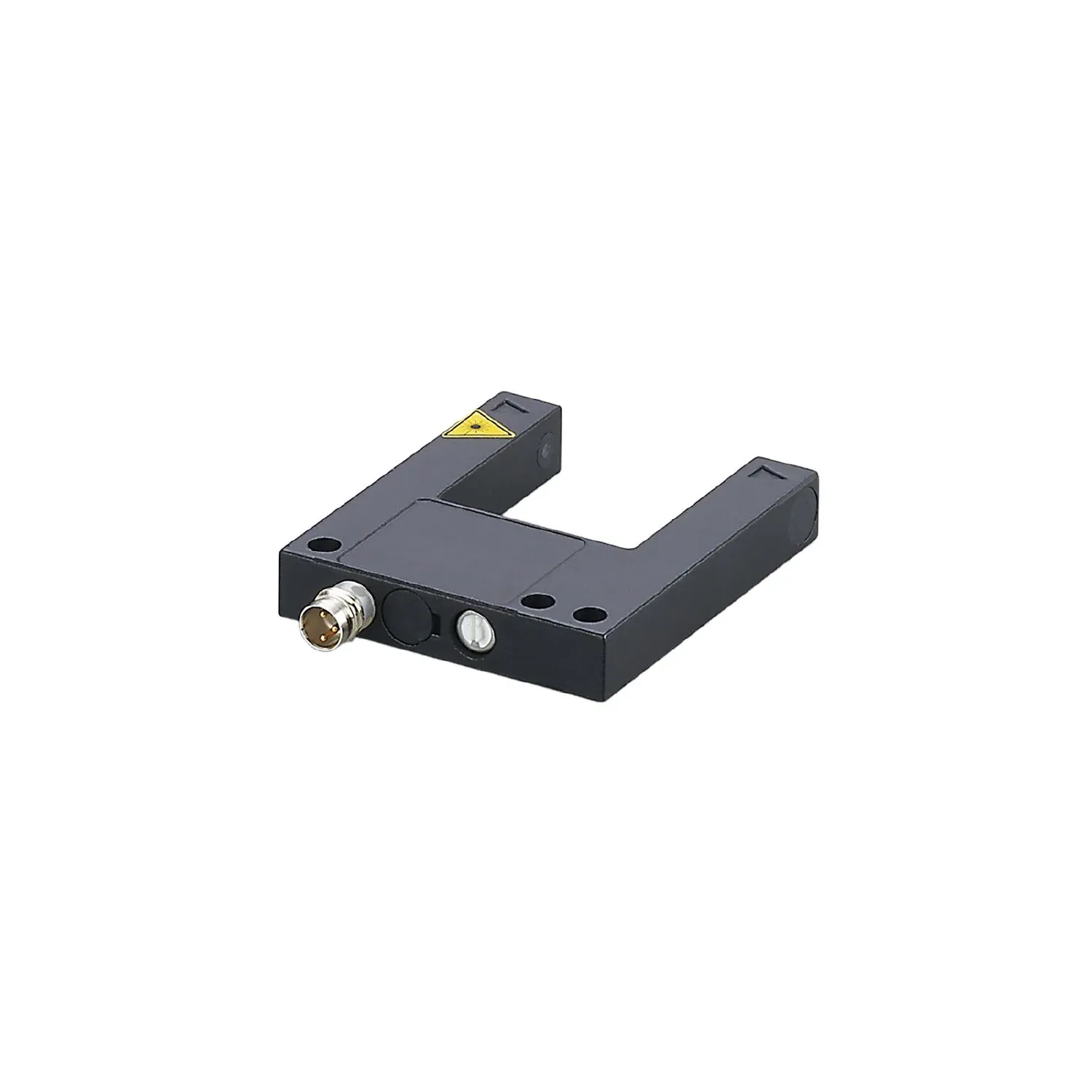

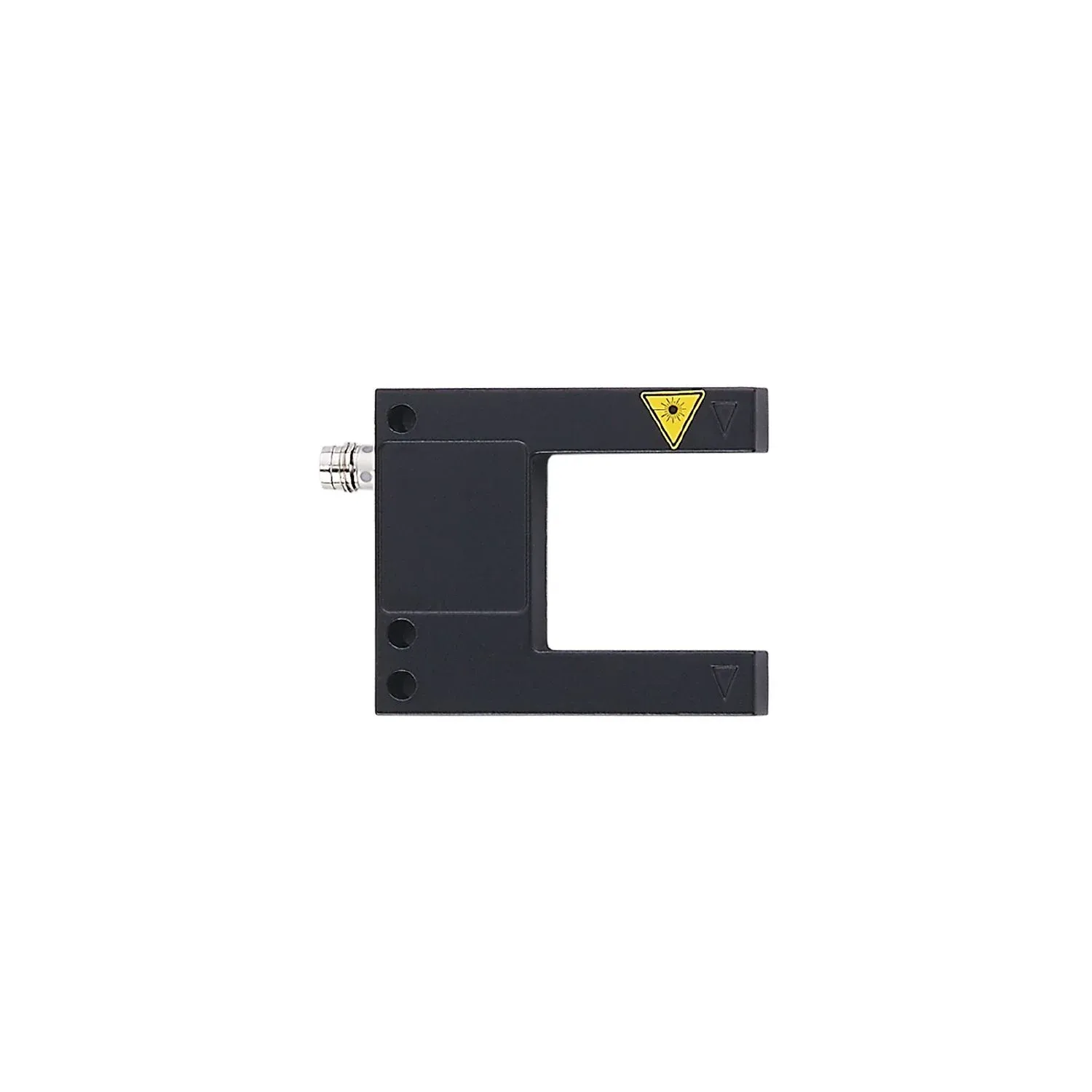

IFM OPU700
OPU700
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable detection of tiny objects
Quick set-up: no need to align transmitter and receiver
Soiling is signalled by permanent monitoring of the quantity of light
Operating modes can be set in accordance with the specific application
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Laser protection class | 1 |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Insulation rating[V] [V] | 500 |
| Current consumption[mA] [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 150 |
| Type of light | red light |
| Wave length[nm] [nm] | 655 |
Outputs
| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Output function | light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 1 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Diameter of the smallest detectable object[mm] [mm] | 0.05 |
|---|
Accuracy / deviations
| Repeatability[mm] [mm] | 0.01 |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Multiple switching signal Function Process data variable Function Device diagnosis Function Teach channel |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Teach channel |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 3.2 |
| IO-Link process data (cyclical) | process value 16 device status 4 binary switching information 1 |
| process value | 16 |
| device status | 4 |
| binary switching information | 1 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter; Min./Max. Signalspeicher; Operating mode |
| Supported DeviceIDs | default 1209 |
| default | 1209 |
| Note | For further information please see the IODD PDF file under "Downloads" |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | DIN EN 61000-4-2 ESD 4 kV CD / 8 kV AD DIN EN 61000-4-3 HF radiated 10 V/m DIN EN 61000-4-4 Burst 2 kV DIN EN 61000-4-6 HF conducted 10 V DIN EN 55011 Class A |
|---|---|
| DIN EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| DIN EN 61000-4-3 HF radiated | 10 V/m |
| DIN EN 61000-4-4 Burst | 2 kV |
| DIN EN 61000-4-6 HF conducted | 10 V |
| DIN EN 55011 | Class A |
| Vibration resistance | EN 60068-2-6 Fc (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| EN 60068-2-6 Fc | (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| Shock resistance | EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| Laser protection class | 1 |
| Notes on laser protection | Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
| Caution: | laser light |
| laser class: | 1 |
| MTTF[years] [years] | 548 |
Mechanical data
| Weight[g] [g] | 81.5 |
|---|---|
| Dimensions[mm] [mm] | 50 x 10 x 60 |
| Fork depth D[mm] [mm] | 35 |
| Fork width W[mm] [mm] | 30 |
| Materials | housing: diecast zinc powder-coated; lens: glass |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M8; coding: A |
|---|
