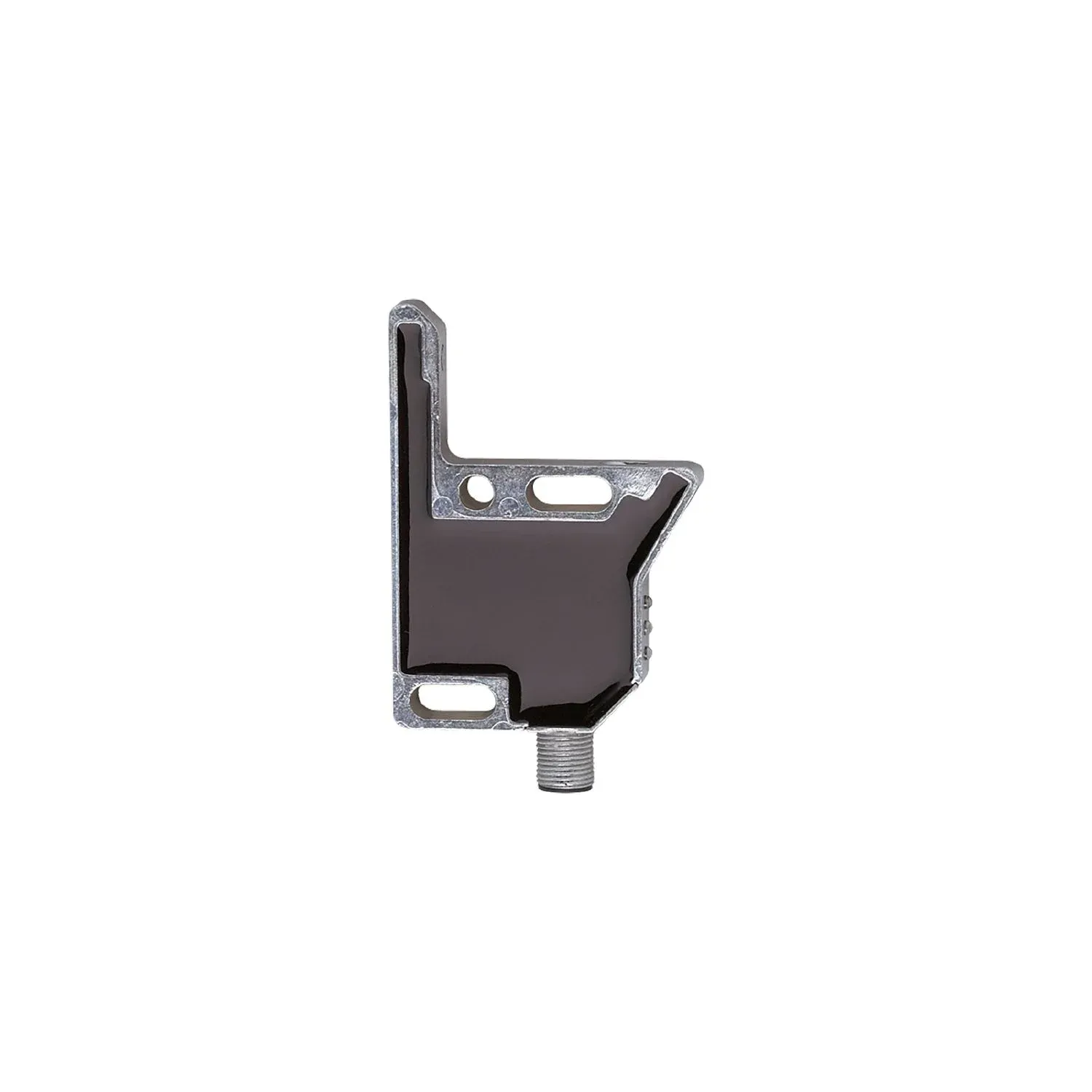

IFM OPL205
OPL205
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Quick set-up: no need to align transmitter and receiver
Fine and precise light beam across the whole fork width
Metal housing reduces distortion
Light-on/dark-on mode selectable via rotary switch
Intuitive setting of the sensitivity via potentiometer
Specification
Product characteristics
| Type of light | infrared light |
|---|
Application
| Special feature | Function check output |
|---|
Electrical data
| Operating voltage[V] [V] | 10...35 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 45 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length[nm] [nm] | 870 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Function check output | yes |
| Max. current load for function check output[mA] [mA] | 200 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 200 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -10...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 951 |
Mechanical data
| Weight[g] [g] | 134.5 |
|---|---|
| Dimensions[mm] [mm] | 60 x 10 x 83 |
| Side length X[mm] [mm] | 31 |
| Side length Y[mm] [mm] | 50 |
| Sensor width Z[mm] [mm] | 40.31 |
| Materials | housing: diecast zinc; lens: glass |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| function | 1 x LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
