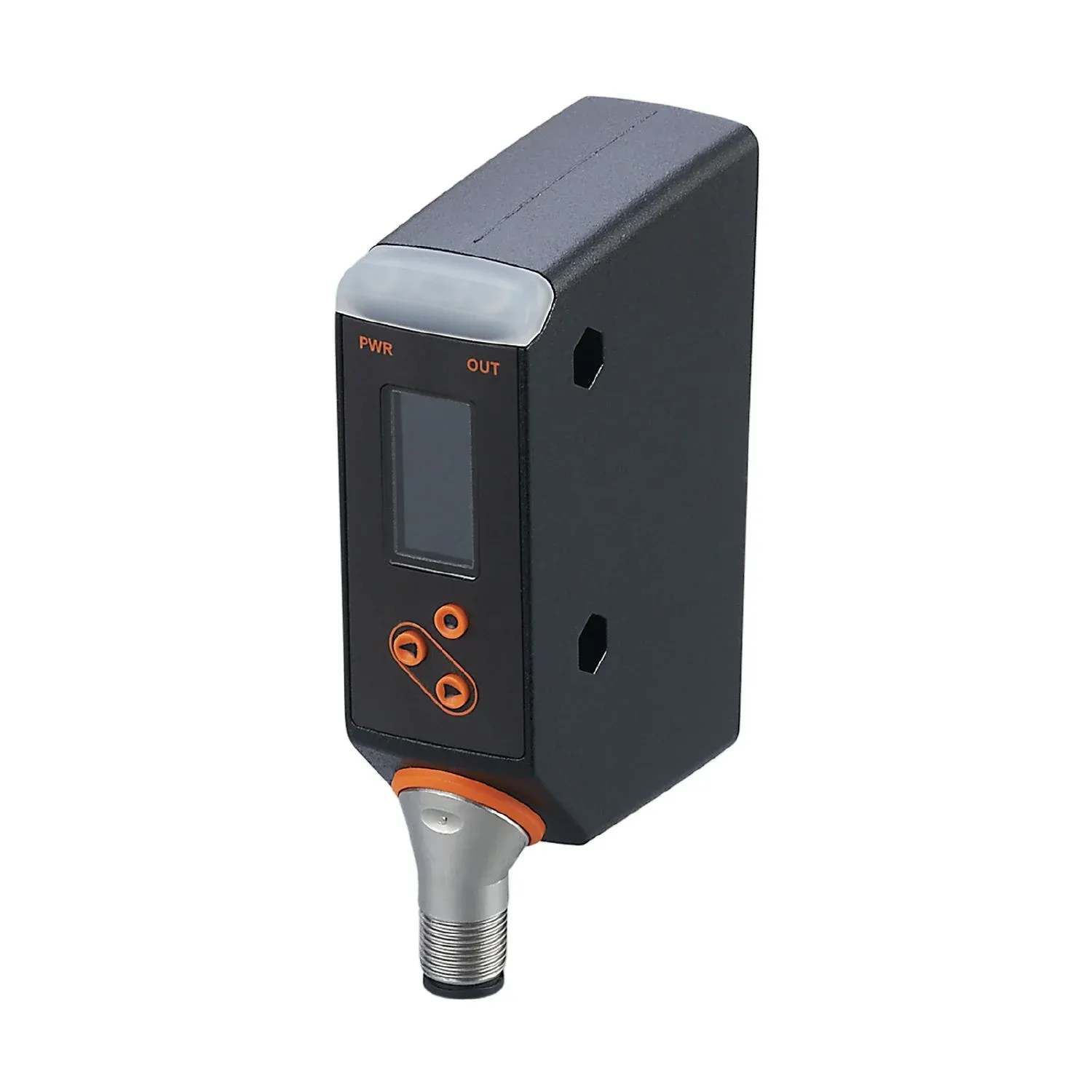

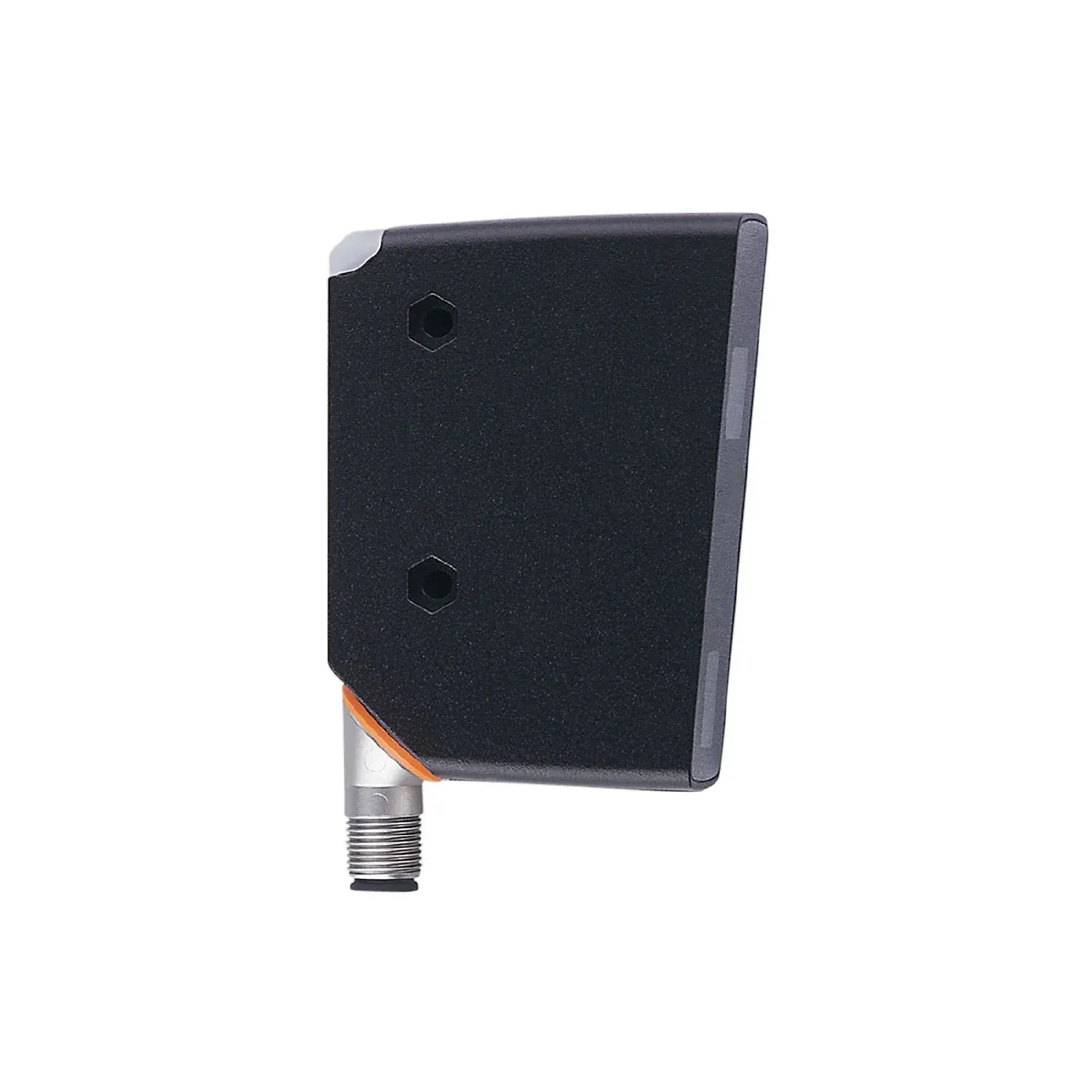

PMD Profiler for object profile checking
Inline quality control checks to ensure correct assembly of parts
Quick set-up without software
Distance-independent measurement for high tolerance on object positioning
Immunity to extraneous light – no screening or external illumination required
Optional profile visualisation via software
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Laser protection class | 1 |
| Housing | rectangular |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 200; (10 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 2 |
| Type of light | red light |
| Wave length[nm] [nm] | 650 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 1; Number of digital outputs: 2 |
|---|
Inputs
| Trigger | external |
|---|---|
| Number of digital inputs | 1 |
Outputs
| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Number of digital outputs | 2 |
| Output function | 2 x normally open / normally closed; (parameterisable) |
| Max. current load per output[mA] [mA] | 100 |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Measuring distance (Z-direction)[mm] [mm] | 150...300 |
|---|---|
| Width of the measuring range (X-direction) at min. measuring distance[mm] [mm] | 45; (distance = 150mm) |
| Width of the measuring range (X-direction) at max. measuring distance[mm] [mm] | 90; (distance = 300mm) |
| Sampling rate[Hz] [Hz] | 5 |
Accuracy / deviations
| Measured value resolution | Z-direction 200 µm X-direction 250 µm |
|---|---|
| Accuracy | Z-direction ± 500 µm X-direction ± 500 µm background white (90 % remission) |
Software / programming
| Number of profiles which can be stored | 1 |
|---|---|
| Number of regions of interest | 1 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Common - I&D Identification and Diagnosis Function Multiple switching signal Function Measurement data, standard resolution |
| Common - I&D | Identification and Diagnosis |
| Function | Measurement data, standard resolution |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 2.3 |
| IO-Link process data (cyclical) | process value 16 device status 4 binary switching information 1 |
| process value | 16 |
| device status | 4 |
| binary switching information | 1 |
| IO-Link functions (acyclical) | operating hours counter; number of trigger events; ROI setting |
| Supported DeviceIDs | default 1260 |
| default | 1260 |
| Note | For further information please see the IODD PDF file under "Downloads" |
Operating conditions
| Ambient temperature[°C] [°C] | -10...55 |
|---|---|
| Storage temperature[°C] [°C] | -40...60 |
| Protection | IP 65 |
| Max. immunity to extraneous light[klx] [klx] | 20 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| Laser protection class | 1 |
| Notes on laser protection | Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
| Caution: | laser light |
| laser class: | 1 |
| MTTF[years] [years] | 155 |
| UL approval | Ta -10...55 °C Enclosure type Type 1 power supply Class 2 File number UL E174191 |
| Ta | -10...55 °C |
| Enclosure type | Type 1 |
| power supply | Class 2 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 535.8 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 88 x 28.5 x 65 |
| Materials | housing: diecast zinc; PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: PMMA |
Displays / operating elements
| Display | switching status 1 x LED, yellow Display operation 1 x LED, green colour display |
|---|---|
| switching status | 1 x LED, yellow |
| Display operation | 1 x LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
