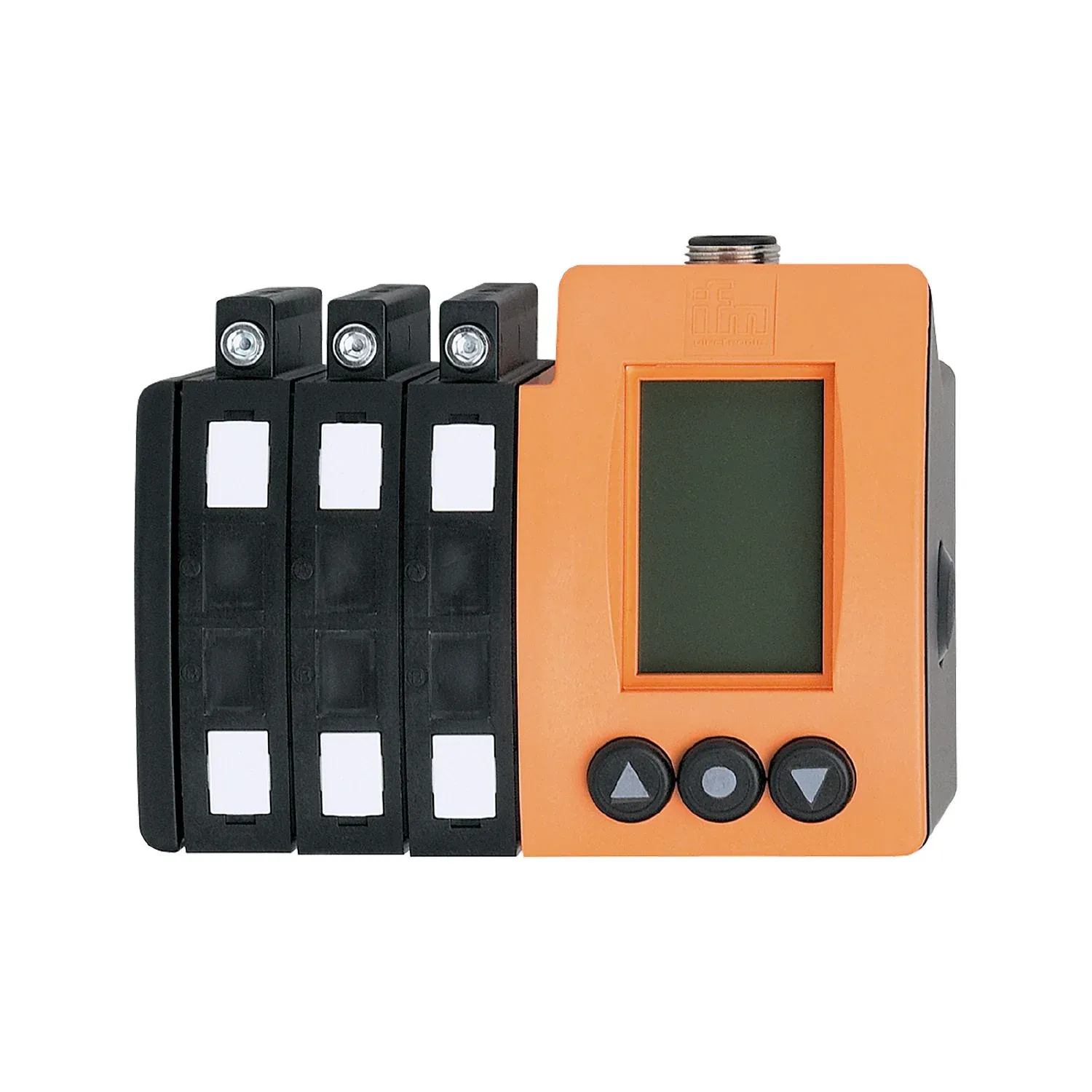

IFM OO5002
OO5002
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in which several fibre optics are required for position detection
Compact housing for use where space is restricted
For the precise detection of small parts
Display with graphic capability for easy set-up
For operation with inexpensive acrylic fibre optics
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Special feature | Function check output |
|---|
Electrical data
| Operating voltage[V] [V] | 12...36 DC |
|---|---|
| Current consumption[mA] [mA] | 50; ((24 V)) |
| Max. power consumption[VA] [VA] | 1.2 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 630 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Function check output | yes |
| Max. current load for function check output[mA] [mA] | 200 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Notes on switching frequency[Hz] [Hz] | typical |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Time function[s] [s] | 0.001...0.1 |
Detection zone
| Range[m] [m] | < 3.8; (Through-beam sensor) |
|---|---|
| Range[mm] [mm] | 0...300; (Diffuse reflection sensor) |
| Range adjustable | yes |
Software / programming
| Parameter setting options | automatic and manual switch point setting; logic functions AND, OR; second switch point |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
Mechanical data
| Weight[g] [g] | 521 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 76.5 x 92.4 x 70.7 |
| Number of channels | 6 |
| Fibre optic connection | FE-11 / FT-11 |
| Materials | housing: ABS; display window: PMMA; LED window: SEPS; cover: diecast zinc plastic coated (PA) |
| Lens alignment | side lens |
Displays / operating elements
| Display | full graphic LCD display, rotation of the display by 180° possible language selection (German, English, French) switching status 6 x LED, yellow |
|---|---|
| switching status | 6 x LED, yellow |
| Electronic lock | yes |
Accessories
| Items supplied | rail: 1 x 81 mm, EN 60715 |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M16 |
|---|
