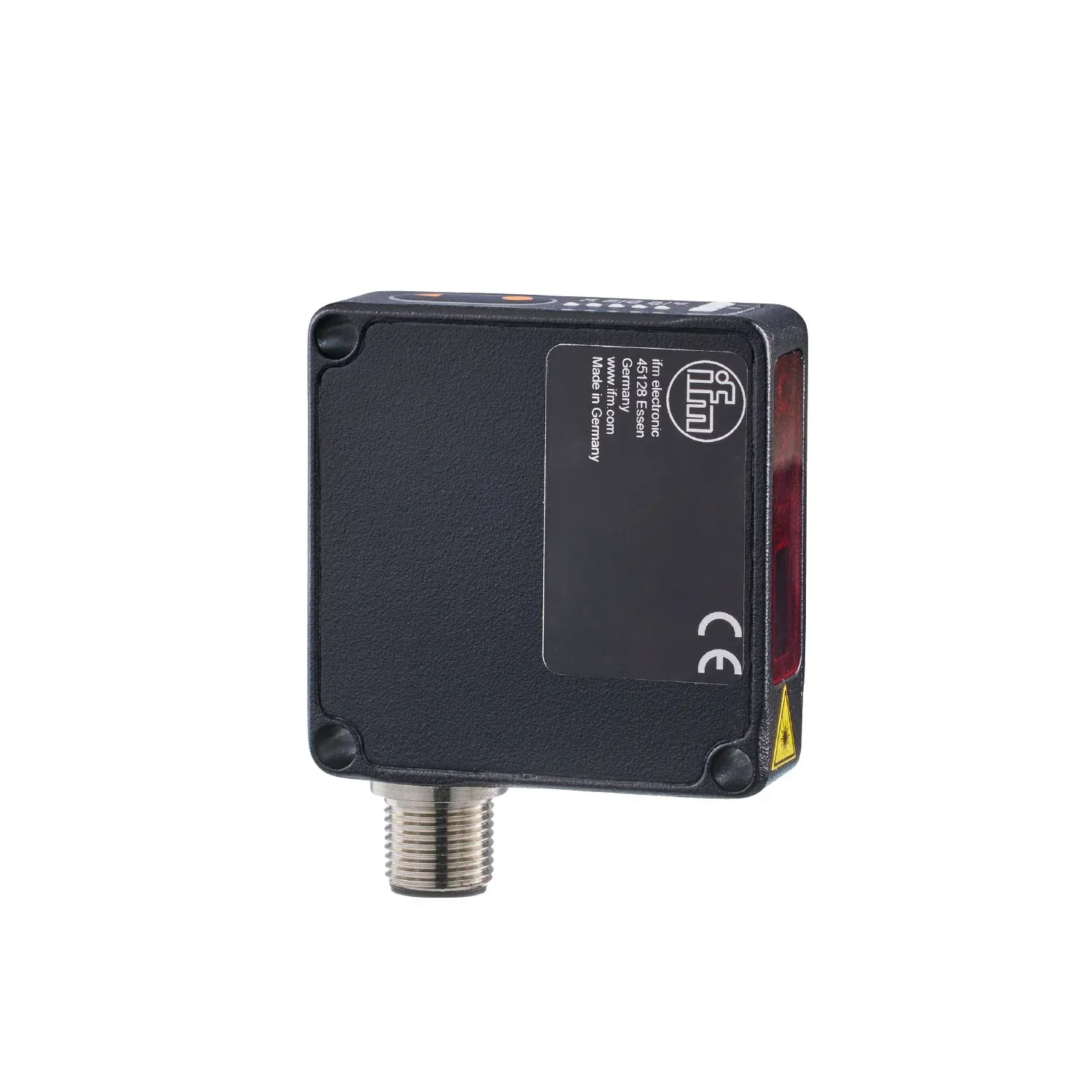

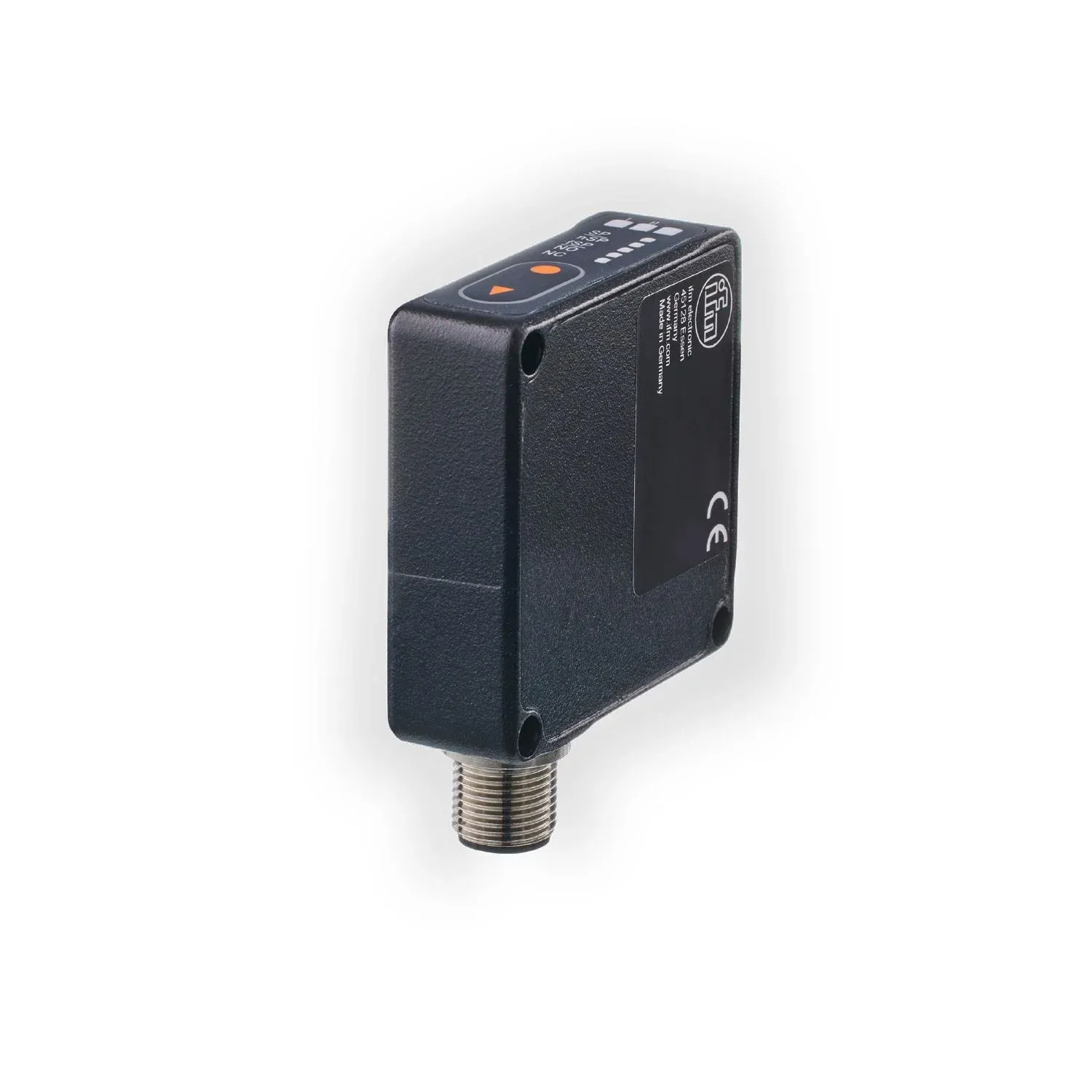

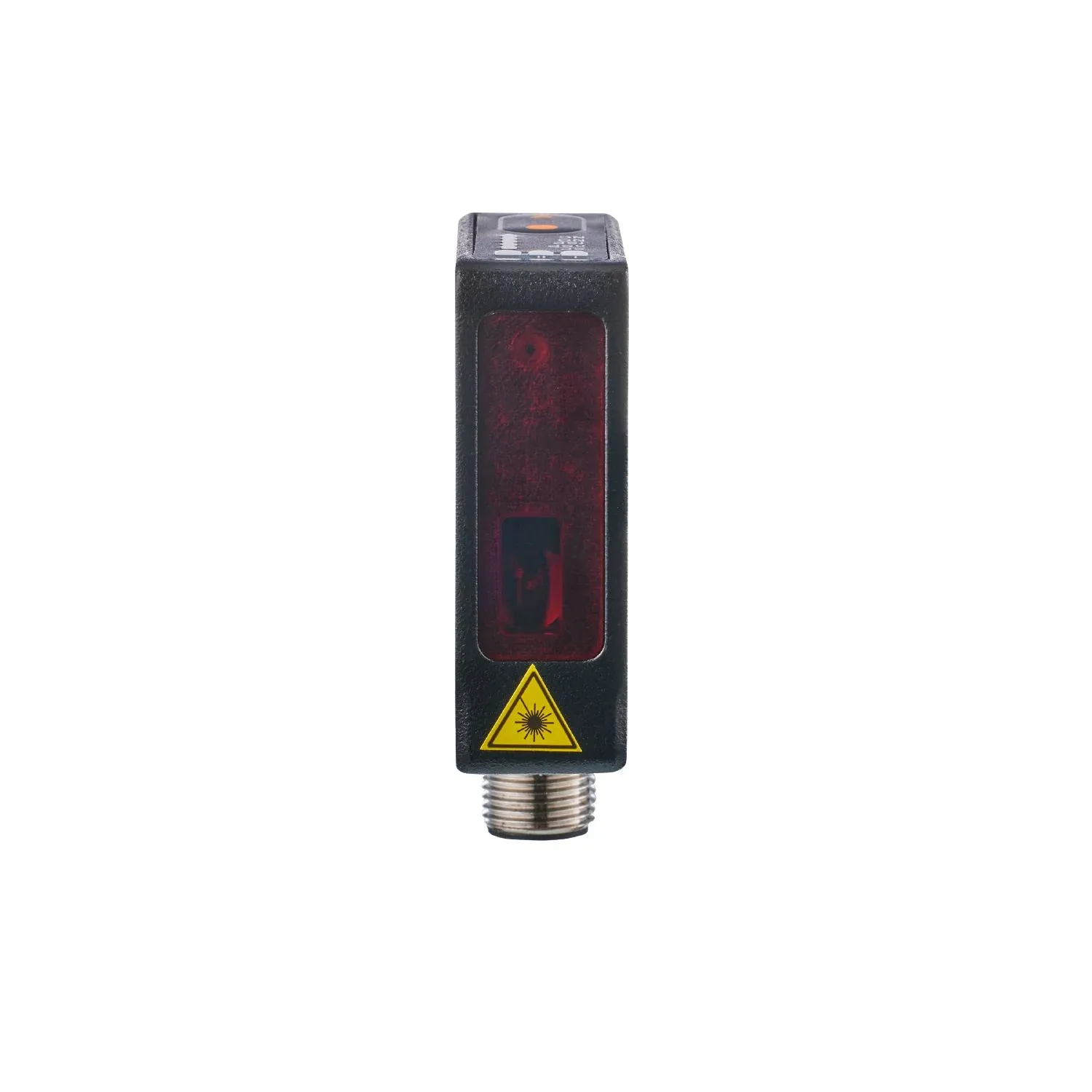

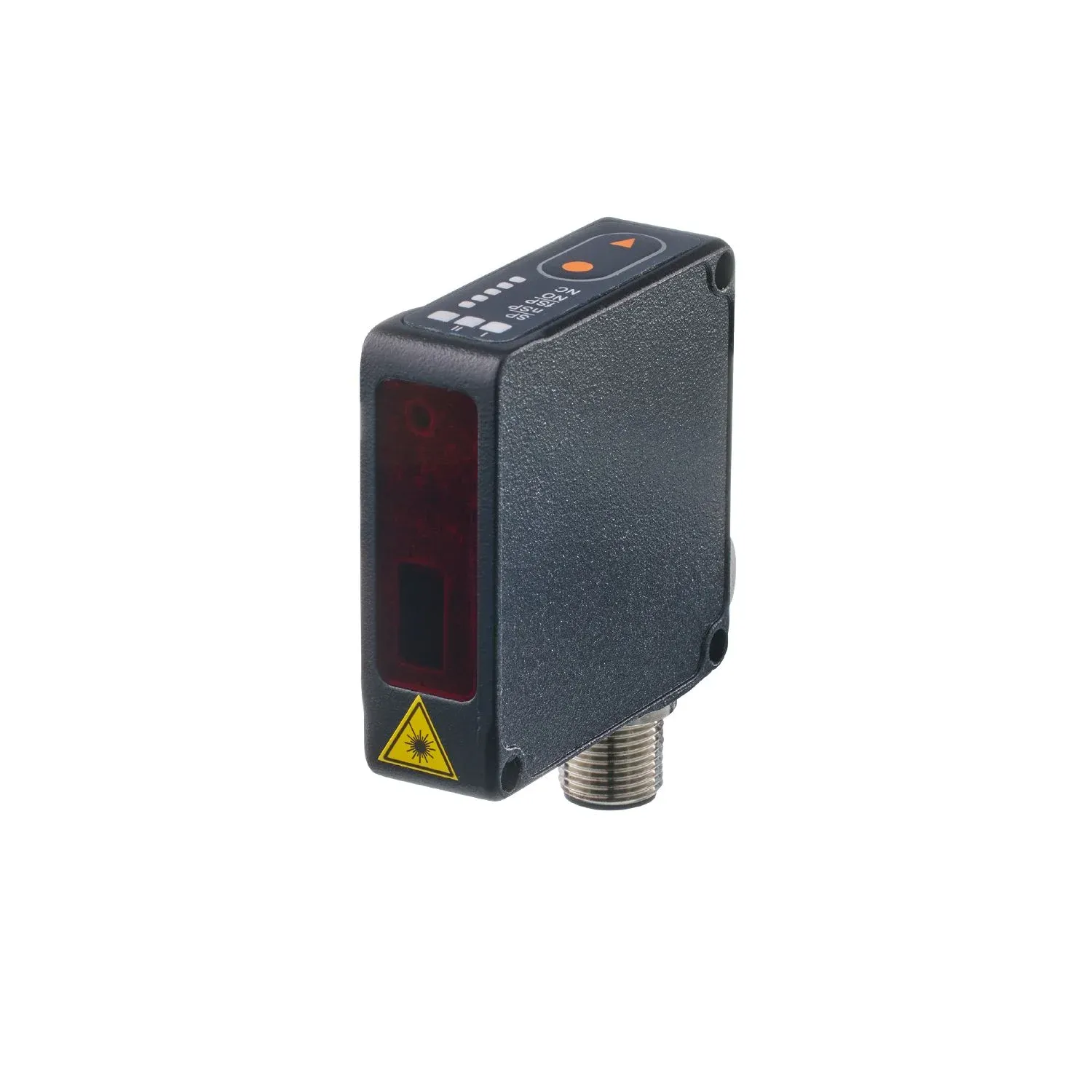

IFM OMH554
IFM OMH554 - Image 2
IFM OMH554 - Image 3
IFM OMH554 - Image 4
IFM OMH554 - Image 5
IFM OMH554 - Image 6
IFM OMH554 - Image 7
IFM OMH554 - Image 8

Fast delivery within 72 Hours

IFM OMH554

OMH554

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Optical distance measurement in the micrometre range
Two switching outputs
Suitable for high-frequency applications
Three operating modes and a robust, compact design enable a wide range of applications
Visualisation of the distance value via IO-Link
Convenient operation via buttons or parameter setting via IO-Link

Specification

Product characteristics

Type of lightred light
Laser protection class1
Housingrectangular

Electrical data

Operating voltage[V] [V]18...30 DC; ("supply class 2" to cULus)
Current consumption[mA] [mA]< 60
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s] [s]< 0.3
Type of lightred light
Wave length[nm] [nm]630
Typ. lifetime[h] [h]50000

Inputs / outputs

Number of inputs and outputsNumber of digital inputs: 1; Number of digital outputs: 2

Inputs

InputsLaser On/ Off
Number of digital inputs1

Outputs

Total number of outputs2
Electrical designPNP/NPN; (parameterisable)
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]2.2
Permanent current rating of switching output DC[mA] [mA]100
Switching frequency DC[Hz] [Hz]150
Notes on switching frequency[Hz] [Hz]standard
Short-circuit protectionyes
Overload protectionyes

Detection zone

Range adjustableyes
Max. light spot diameter[mm] [mm]1
Light spot dimensions refer toat maximum range

Measuring/setting range

Measuring range[m] [m]0.05...0.5; (6...90% remission)

Accuracy / deviations

Temperature compensationyes
Notes on the accuracy / deviationThe indicated values are reached after a warm-up time of 20 minutes.
Repeatability[mm] [mm]1
Resolution[mm] [mm]0,5

Software / programming

Parameter setting optionshysteresis / window / 2-point; Switch-on and switch-off delay; switch-on operations; Teach function; filter; light-on/dark-on mode; laser switch-off; Type of operation

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesSmart Sensor - SSP 4.1.1
Measuring and Switching Sensor, 1 channel
Common - I&D
Identification and Diagnosis
Extension
Sensor control
Extension
Teach two point
Function
Locator
Function
ProductURI
Smart Sensor - SSP 4.1.1Measuring and Switching Sensor, 1 channel
Common - I&DIdentification and Diagnosis
ExtensionTeach two point
FunctionProductURI
SIO modeyes
Required master port typeA
Min. process cycle time[ms] [ms]3.2
IO-Link process data (cyclical)process value
16
device status
4
binary switching information
2
process value16
device status4
binary switching information2
IO-Link functions (acyclical)application specific tag; operating hours counter
Supported DeviceIDsdefault
1570
default1570
NoteFor further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature[°C] [°C]0...60
Storage temperature[°C] [°C]-10...65
ProtectionIP 65; IP 67

Tests / approvals

EMCEN 61000-4-2 ESD
4 kV CD / plastics
8 kV AD / metal
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-6 HF conducted
10 V
EN 61000-4-4 Burst
2 kV
EN 55011
class B
EN 61000-4-2 ESD4 kV CD / plastics
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-6 HF conducted10 V
EN 61000-4-4 Burst2 kV
EN 55011class B
Vibration resistanceEN 60068-2-6 Fc
(10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
EN 60068-2-6 Fc(10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistanceEN 60068-2-27 Ea
30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
EN 60068-2-27 Ea30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Laser protection class1
Notes on laser protectionCaution:
laser light
laser class:
1
EN/IEC 60825-1 2007
EN/IEC 60825-1 2014
Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
Caution:laser light
laser class:1
MTTF[years] [years]572
UL approvalpower supply
Class 2
power supplyClass 2

Mechanical data

Weight[g] [g]127.5
Housingrectangular
Dimensions[mm] [mm]51 x 51 x 17
Materialshousing: diecast zinc; front pane: plastics
Tightening torque[Nm] [Nm]5

Displays / operating elements

Displayswitching status
2 LED, yellow
supply voltage
1 LED, green
Operating mode
5 LED, white
switching status2 LED, yellow
supply voltage1 LED, green
Operating mode5 LED, white
Teach functionyes

Remarks

Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A
