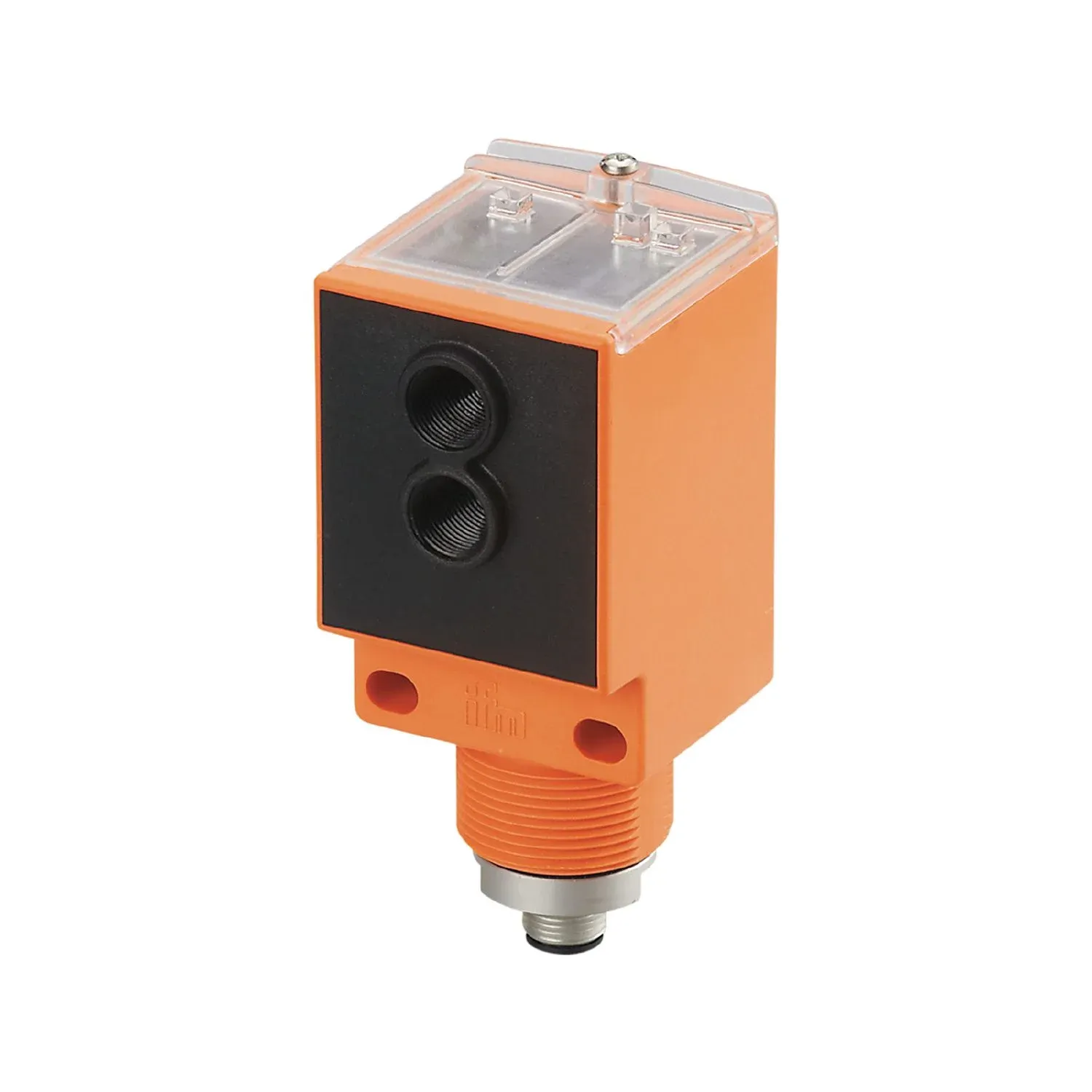

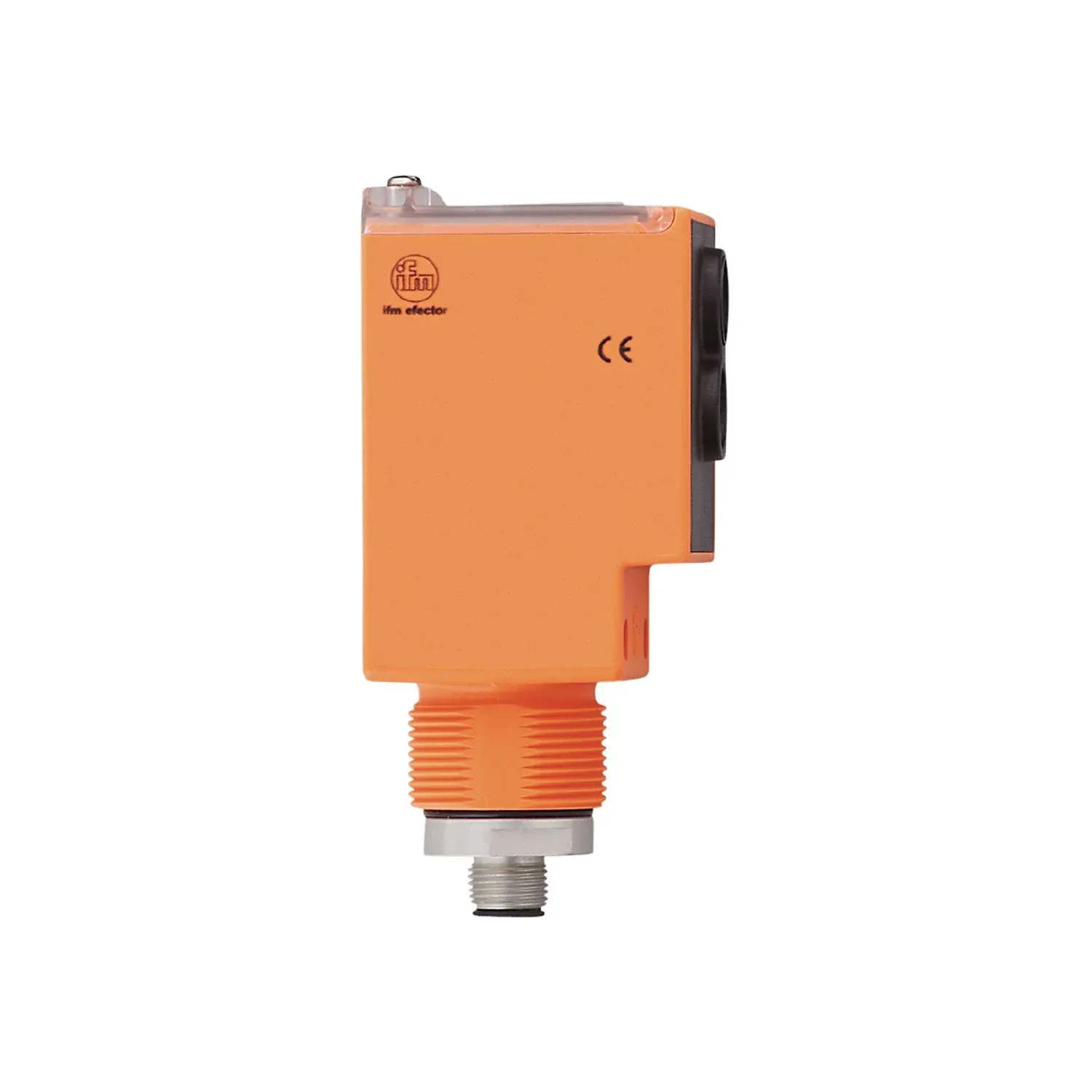

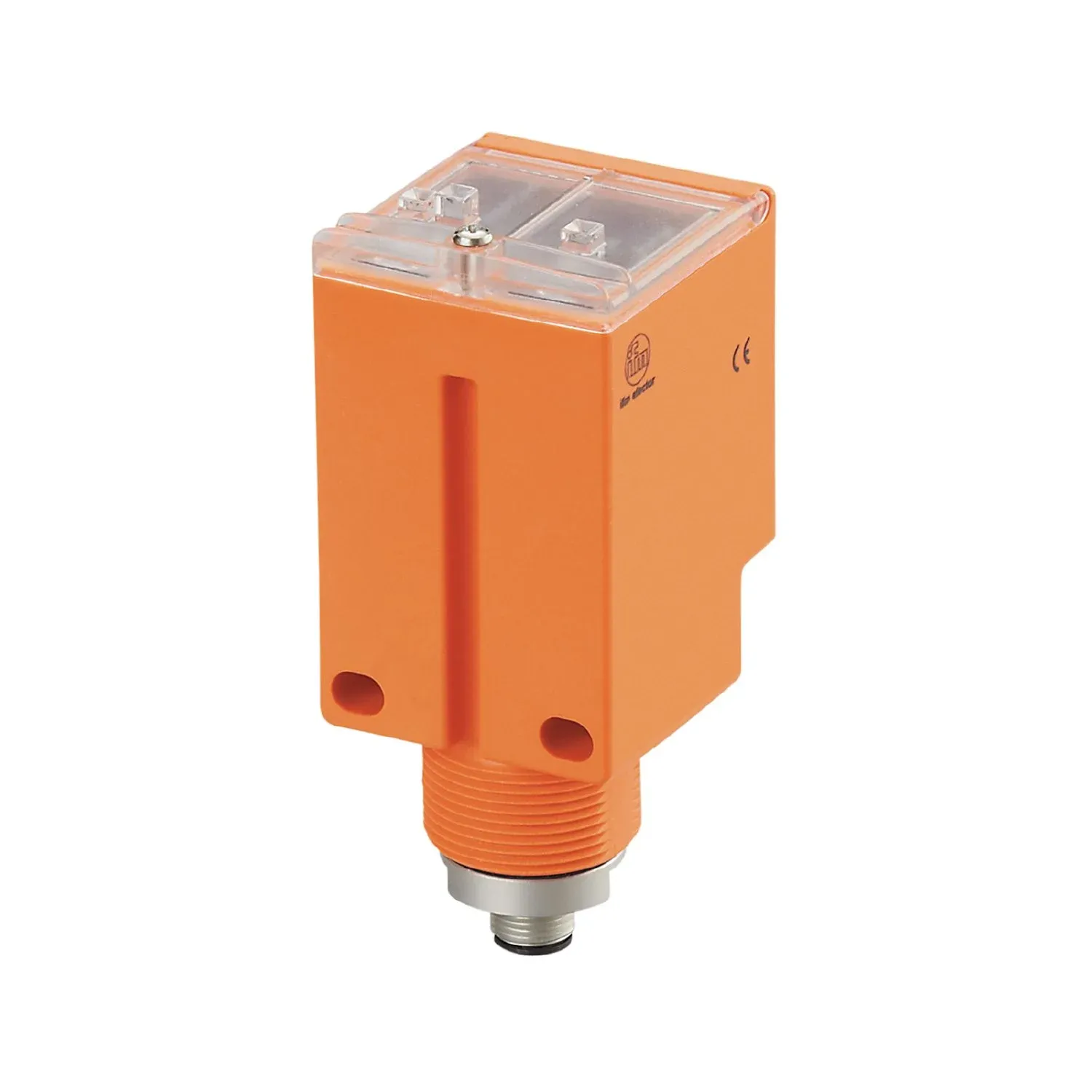

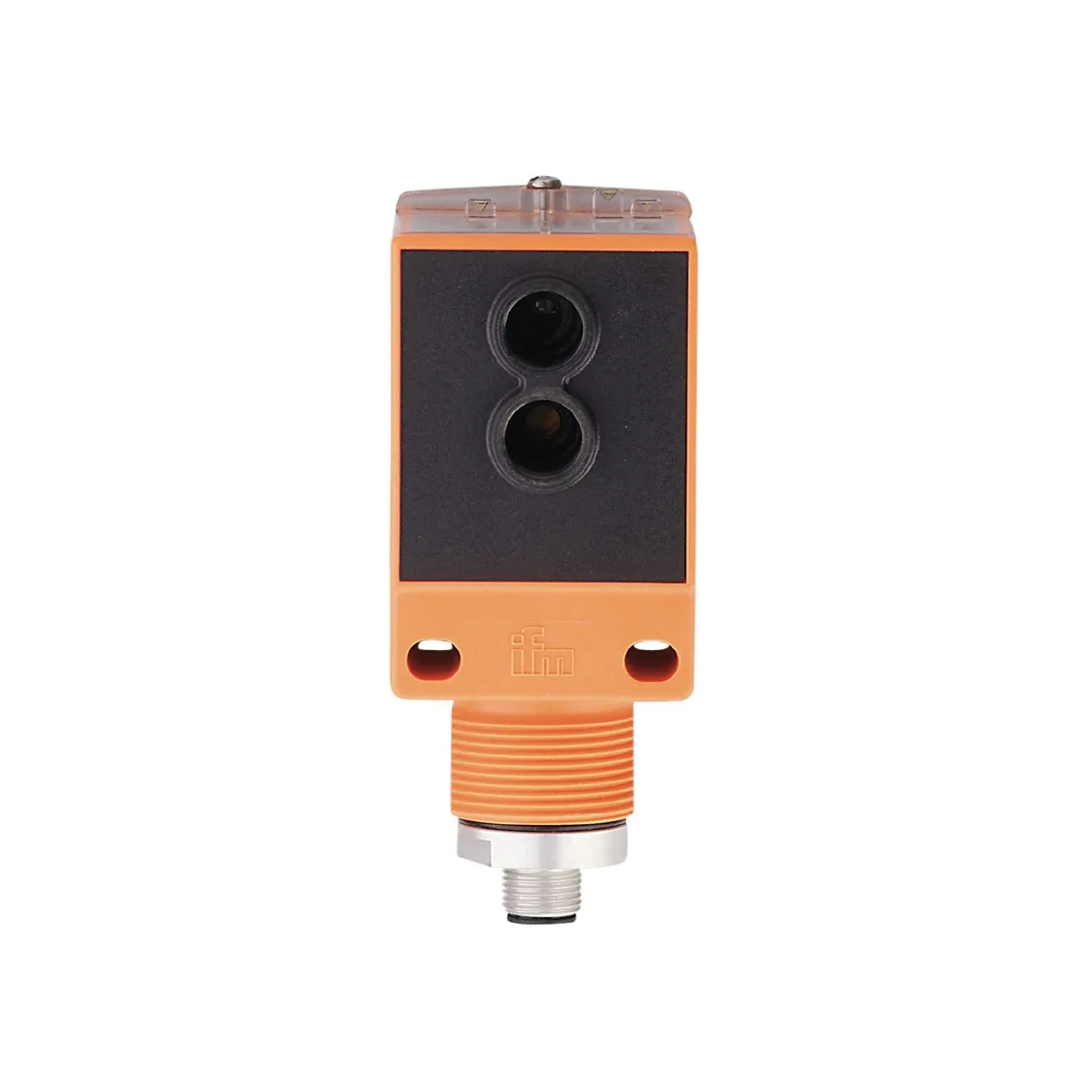

IFM OM5005
OM5005
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Operation as through-beam sensor or diffuse reflection sensor
Very long ranges
Programmable light-on/dark-on mode via pushbutton
Robust housing for use in harsh industrial environments
LED display to check operation, switching status and function
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 80 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 660 |
| Typ. lifetime[h] [h] | 100000 |
| Reference temperature for service life[°C] [°C] | 25 |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] [V] | 2 |
| Max. voltage drop of function check output[V] [V] | 2 |
| Max. current load for function check output[mA] [mA] | 100 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range[m] [m] | < 0.8; (Through-beam sensor) |
|---|---|
| Range[mm] [mm] | < 175; (in diffuse reflection mode) |
| Range adjustable | yes |
Response times
| Response time[s] [s] | < 1 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...40 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | IEC 1000-4-2/3/4/5/6 |
|---|
Mechanical data
| Weight[g] [g] | 199 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 73 x 45 x 49 |
| Materials | ABS glass fibre reinforced |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| function | 1 x LED, red |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A; Locking: aluminium, uncoloured anodised |
|---|
