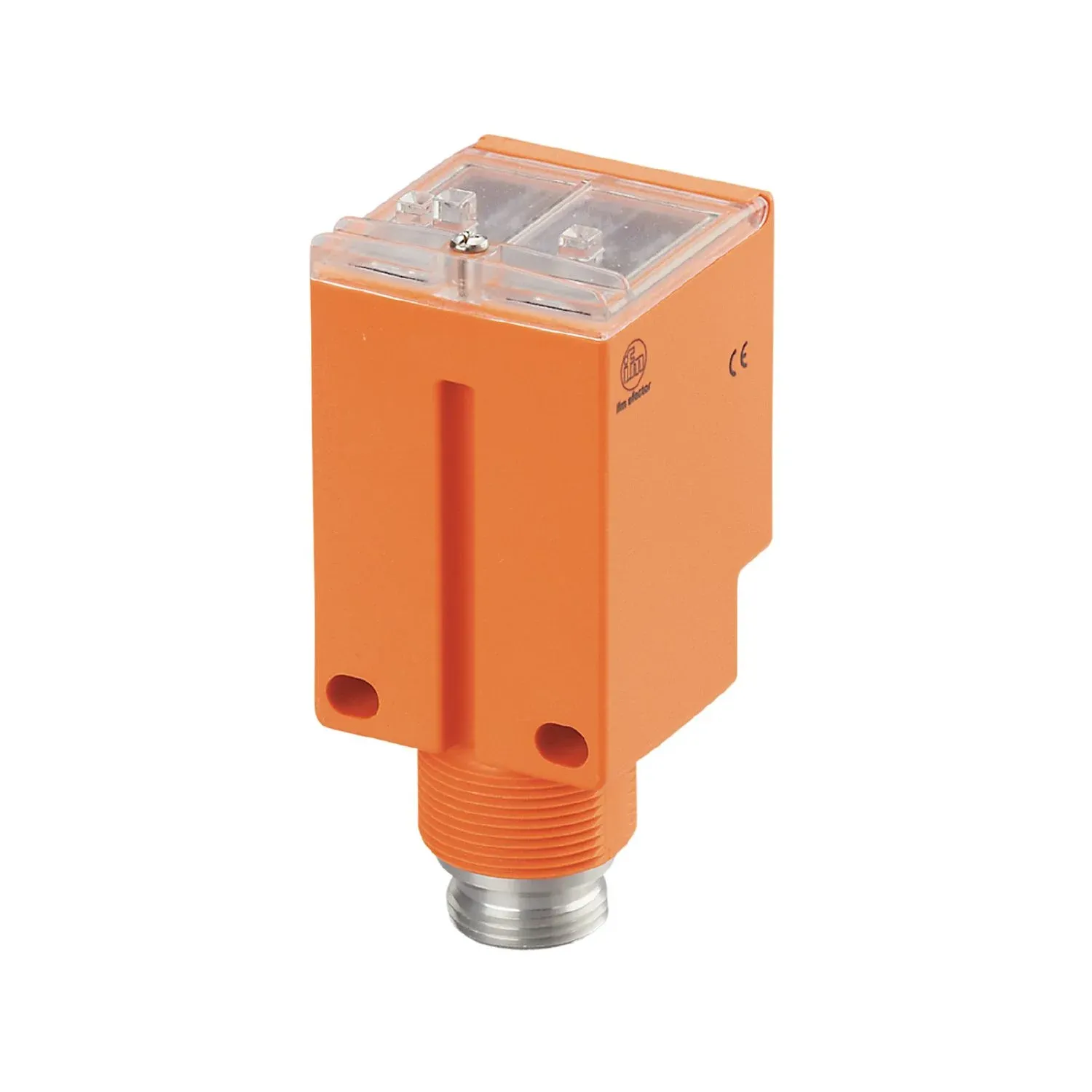

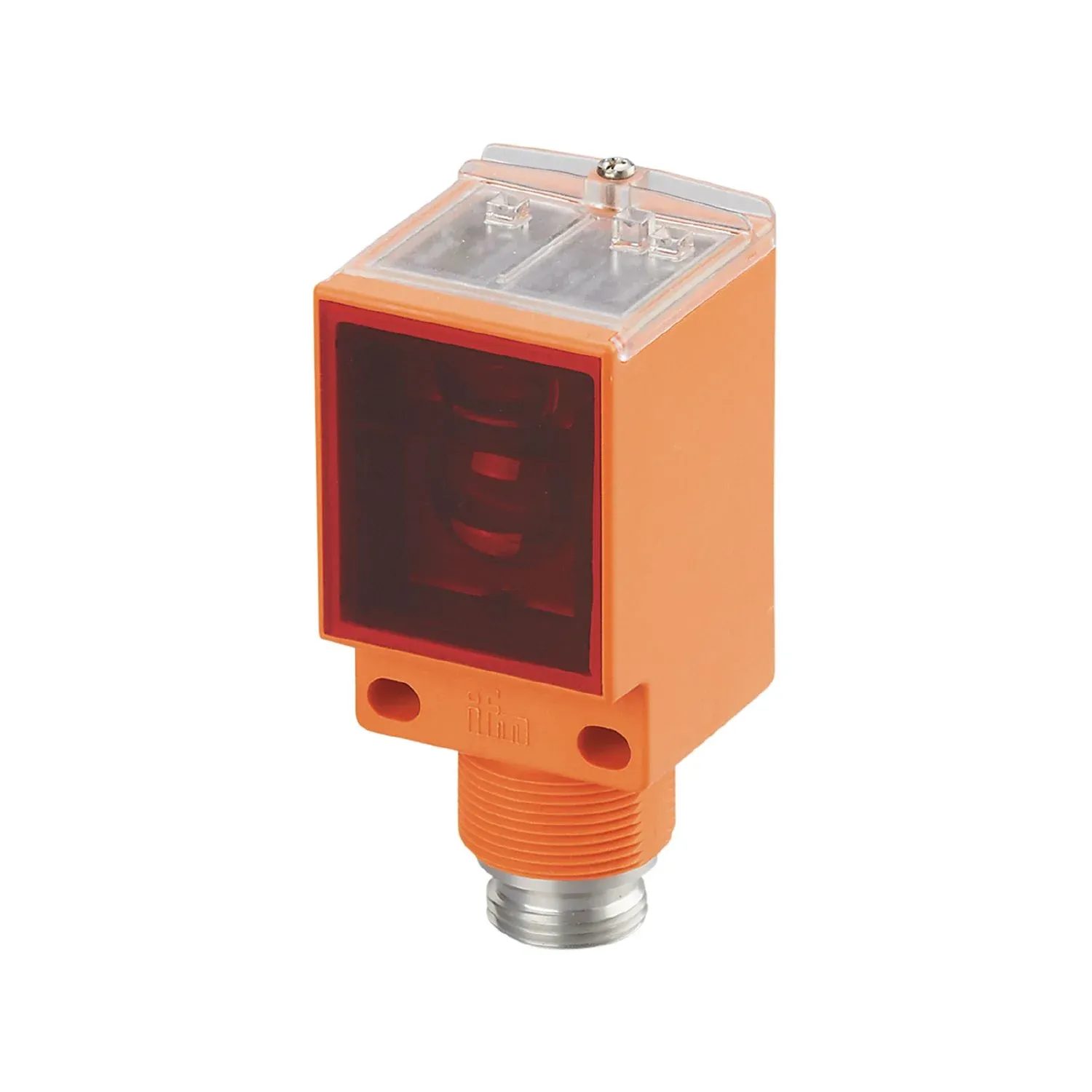

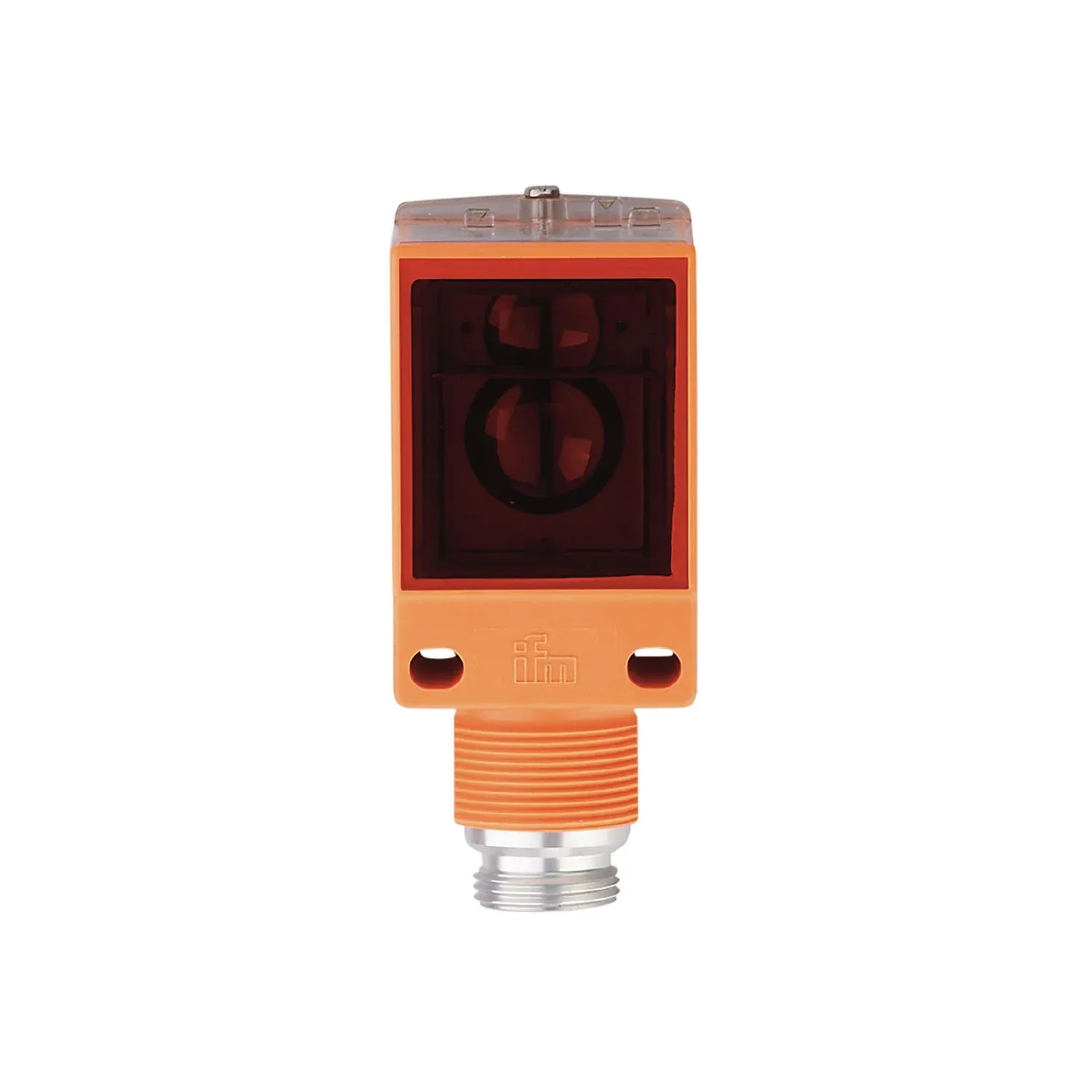

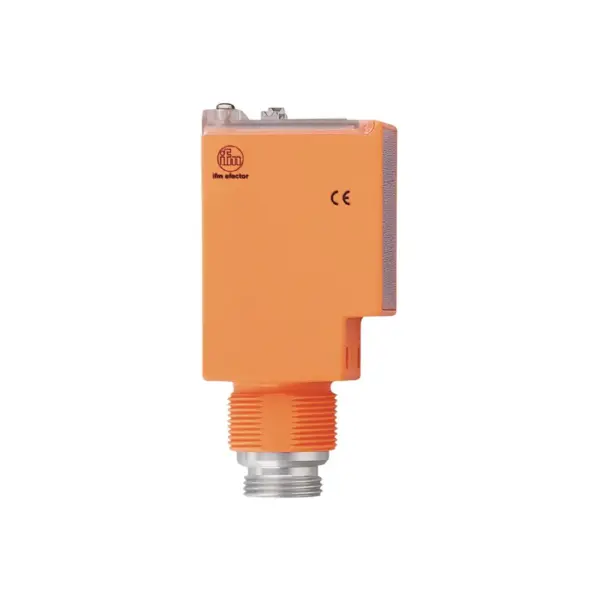

IFM OM0008
OM0008
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
Programmable light-on/dark-on mode via pushbutton
With combined AC/DC output and relay output
LED display to check operation, switching status and function
Robust housing for use in harsh industrial environments
Specification
Product characteristics
| Housing | rectangular |
|---|
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Frequency AC[Hz] [Hz] | 47...63 |
|---|---|
| Operating voltage[V] [V] | 24...240 AC/DC |
| Max. power consumption[VA] [VA] | 6 |
| Protection class | II |
Outputs
| Electrical design | relay |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Contact rating | 3A / 250 V AC |
| Switching frequency AC[Hz] [Hz] | 10 |
| Switching frequency DC[Hz] [Hz] | 10 |
| Short-circuit protection | no |
| Time function[s] [s] | 0 / 1 / 5 / 10 / 14 |
Detection zone
| Transmitter / receiver | receiver |
|---|---|
| Range[m] [m] | < 50 |
| Range adjustable | yes |
Response times
| Response time[s] [s] | < 10 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...40 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 204.12 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 73 x 45 x 49 |
| Materials | ABS glass fibre reinforced |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green unsafe zone 1 x LED, red |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| unsafe zone | 1 x LED, red |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x 7/8"; coding: A; Locking: aluminium, uncoloured anodised |
|---|
