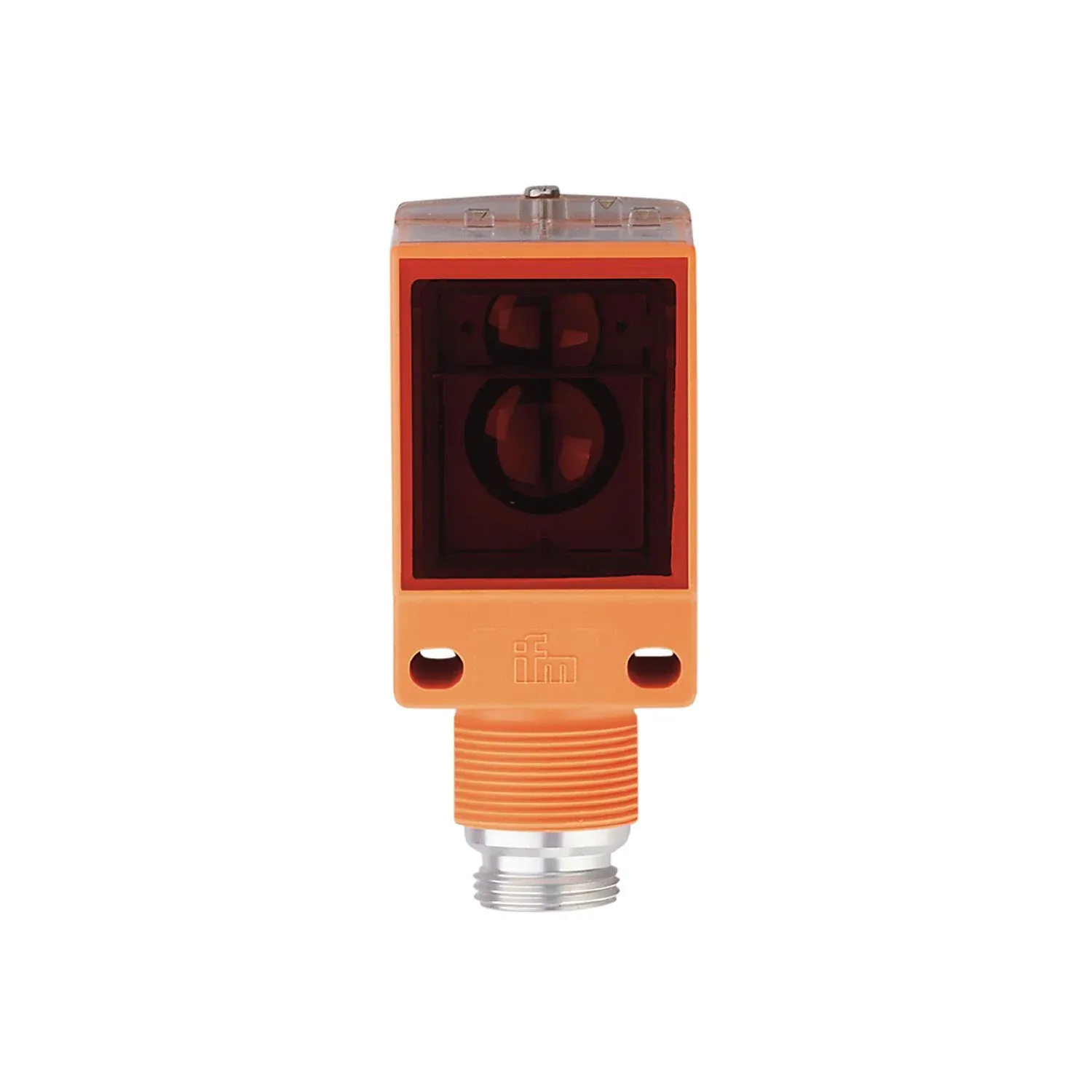

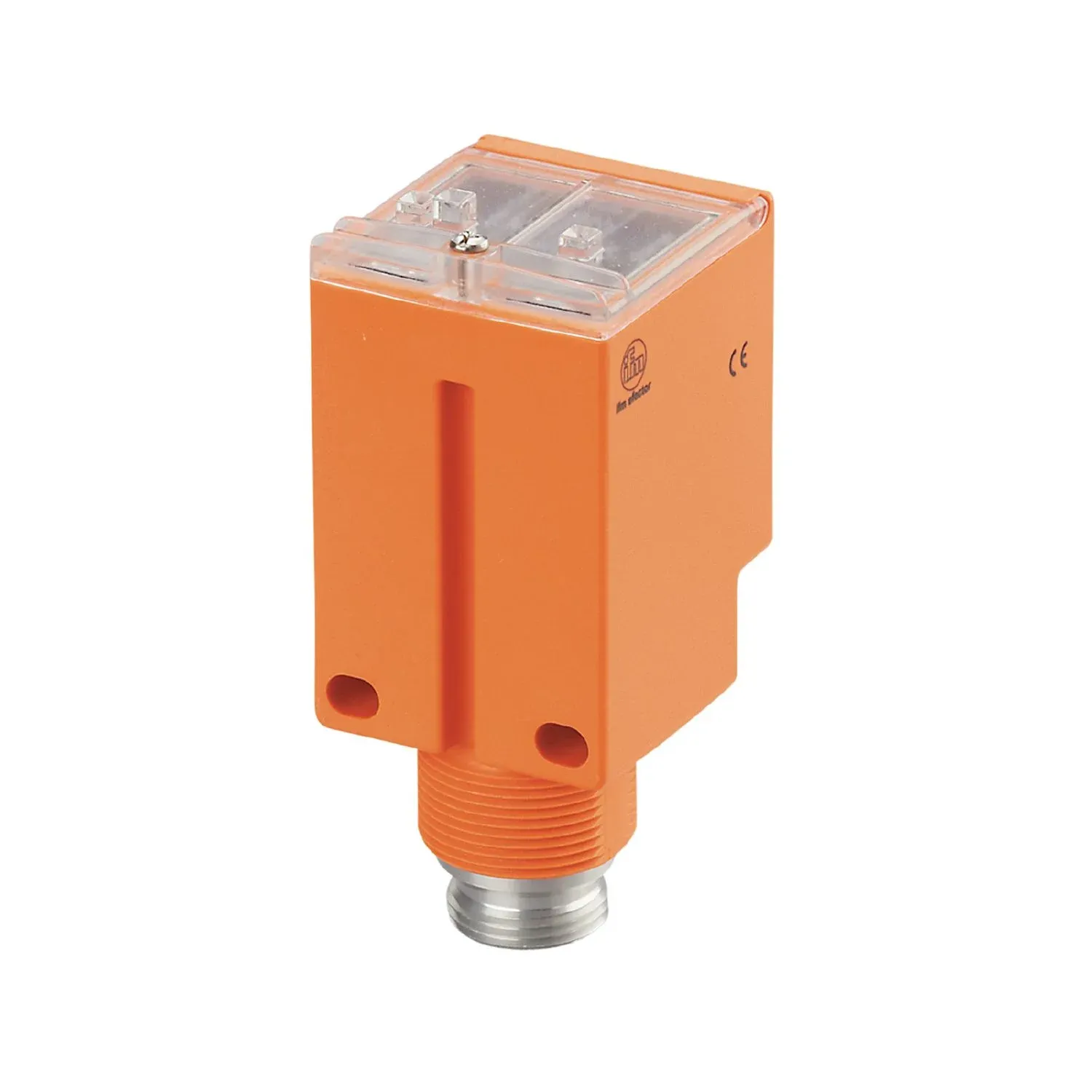

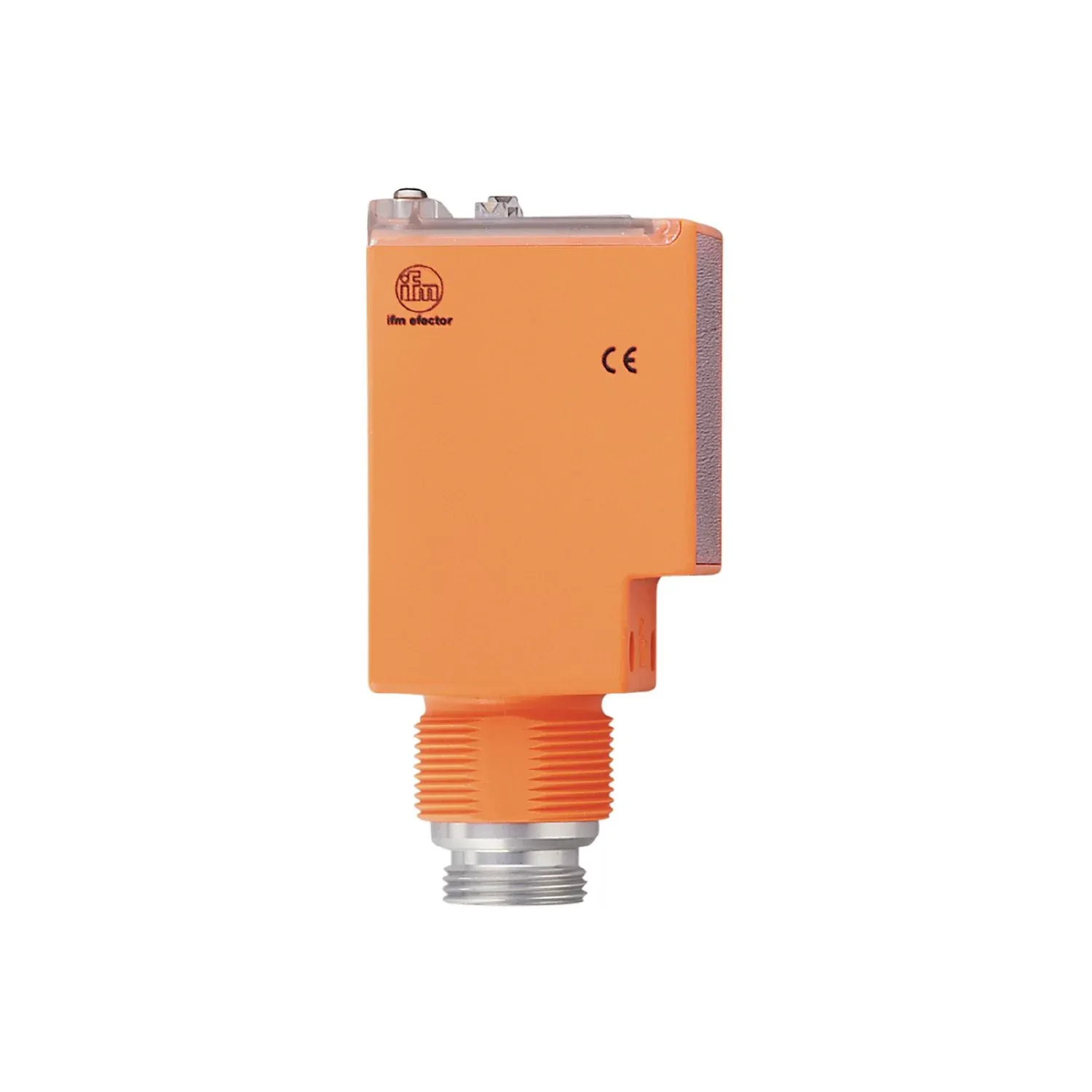

IFM OM0007
OM0007
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
With combined AC/DC output stage
Large operating voltage range
Robust housing for use in harsh industrial environments
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Frequency AC[Hz] [Hz] | 47...63 |
|---|---|
| Operating voltage[V] [V] | 24...240 AC/DC |
| Max. power consumption[VA] [VA] | 6 |
| Protection class | II |
| Type of light | infrared light |
| Wave length[nm] [nm] | 880 |
| Typ. lifetime[h] [h] | 100000 |
| Reference temperature for service life[°C] [°C] | 25 |
Outputs
| Short-circuit protection | no |
|---|
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range[m] [m] | < 50 |
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 320 |
| Light spot dimensions refer to | Range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...40 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 187.787 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 73 x 45 x 49 |
| Materials | ABS glass fibre reinforced |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | operation 1 x LED, green |
|---|---|
| operation | 1 x LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x 7/8"; coding: A; Locking: aluminium, uncoloured anodised |
|---|
