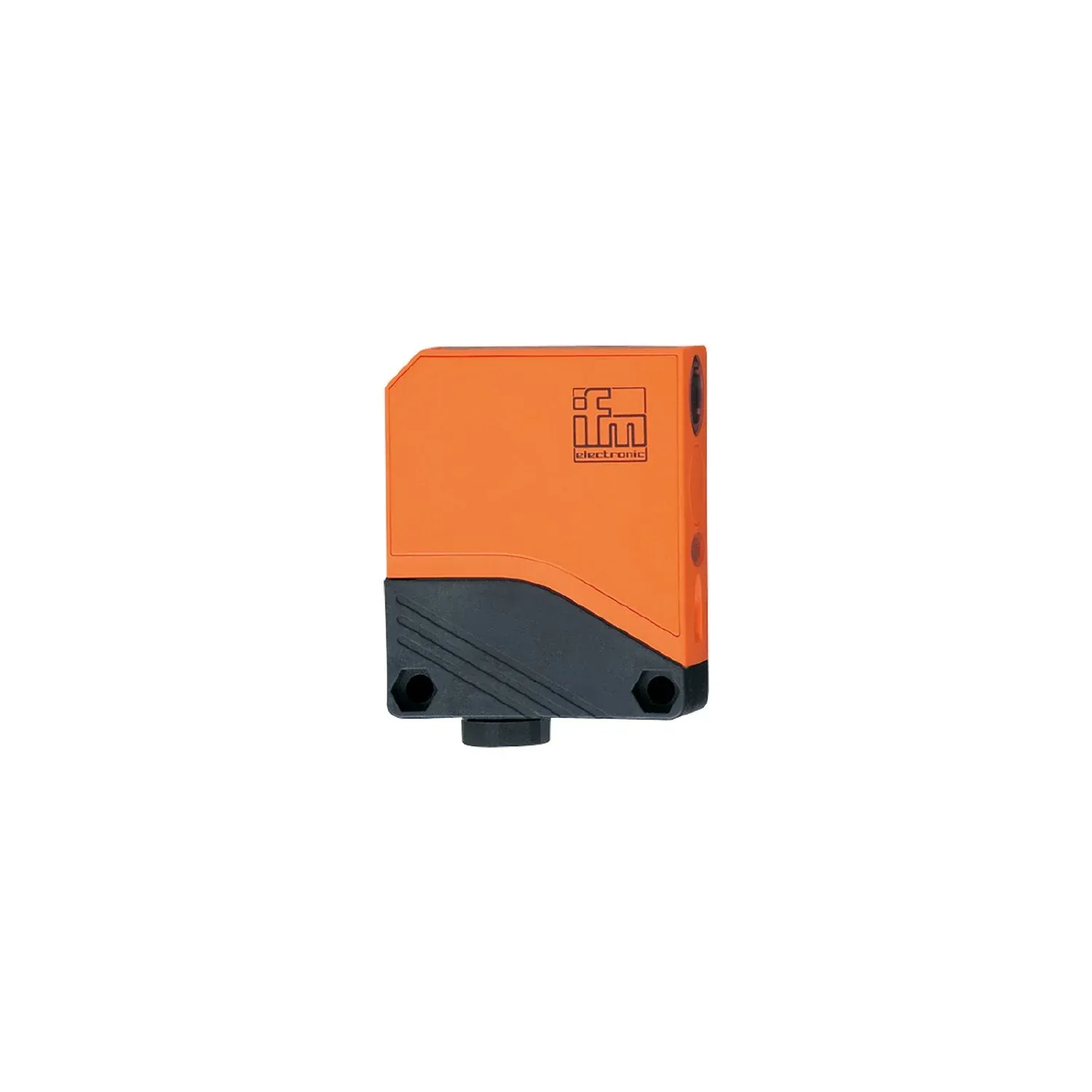

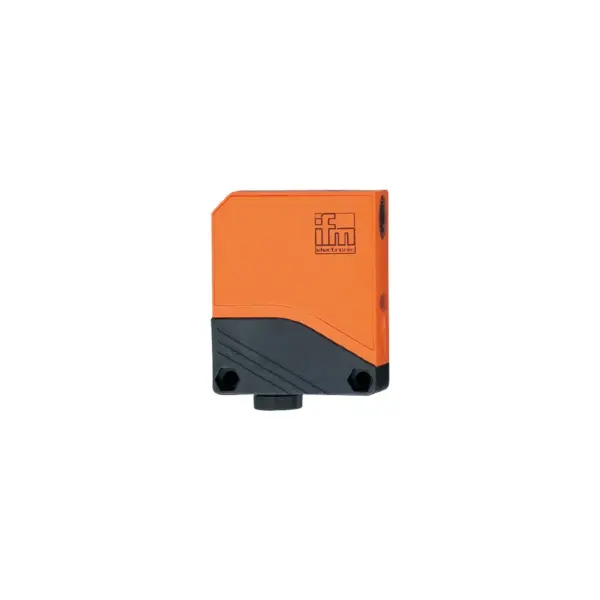

IFM OL0007
OL0007
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
Intuitive setting of the sensitivity
Programmable light-on/dark-on mode
Robust housing for use in harsh industrial environments
LED display to check operation, switching status and function
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Frequency AC[Hz] [Hz] | 47...63 |
|---|---|
| Operating voltage[V] [V] | 20...250 AC/DC |
| Max. power consumption[VA] [VA] | 4 |
| Protection class | II |
| Reverse polarity protection | no |
| Type of light | infrared light |
| Wave length[nm] [nm] | 880 |
Outputs
| Electrical design | relay |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Contact rating | 250 V AC / 3 A / 950 VA, 125 V DC / 5 A / 120 W |
| Switching frequency AC[Hz] [Hz] | 10 |
| Switching frequency DC[Hz] [Hz] | 10 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Transmitter / receiver | receiver |
|---|---|
| Range[m] [m] | < 25 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 233 |
Mechanical data
| Weight[g] [g] | 166.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 75 x 27 x 62 |
| Materials | PA; PBT |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| function | 1 x LED, red |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals | ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5 |
|---|
