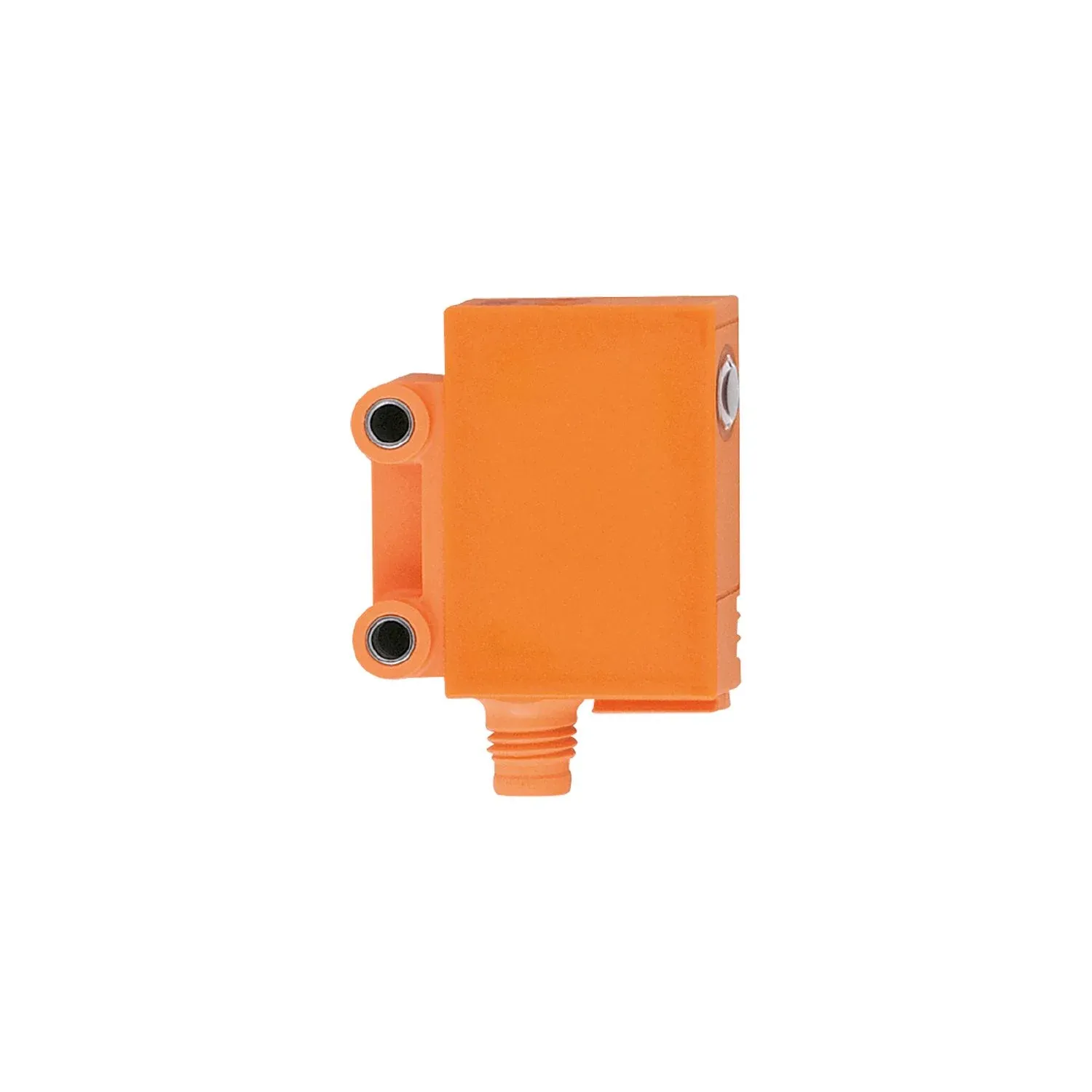

IFM OJ5130
OJ5130
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Particularly compact housing for use where space is restricted
Very long range
Simple alignment due to visible red light
Robust stainless steel sleeves in the fixing holes
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 19 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 660 |
Outputs
| Overload protection | yes |
|---|
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range[m] [m] | < 10 |
| Max. light spot diameter[mm] [mm] | 1000 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 1764 |
Mechanical data
| Weight[g] [g] | 26.75 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 35 x 11 x 24 |
| Materials | housing: ABS; LED window: SEPS; pushbutton: SEPS |
| Lens material | glass |
| Lens alignment | side lens |
Displays / operating elements
| Display | operation 1 x LED, green |
|---|---|
| operation | 1 x LED, green |
Accessories
| Items supplied | screws: 2 spring washers: 2 Nuts: 2 |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M8; coding: A |
|---|
