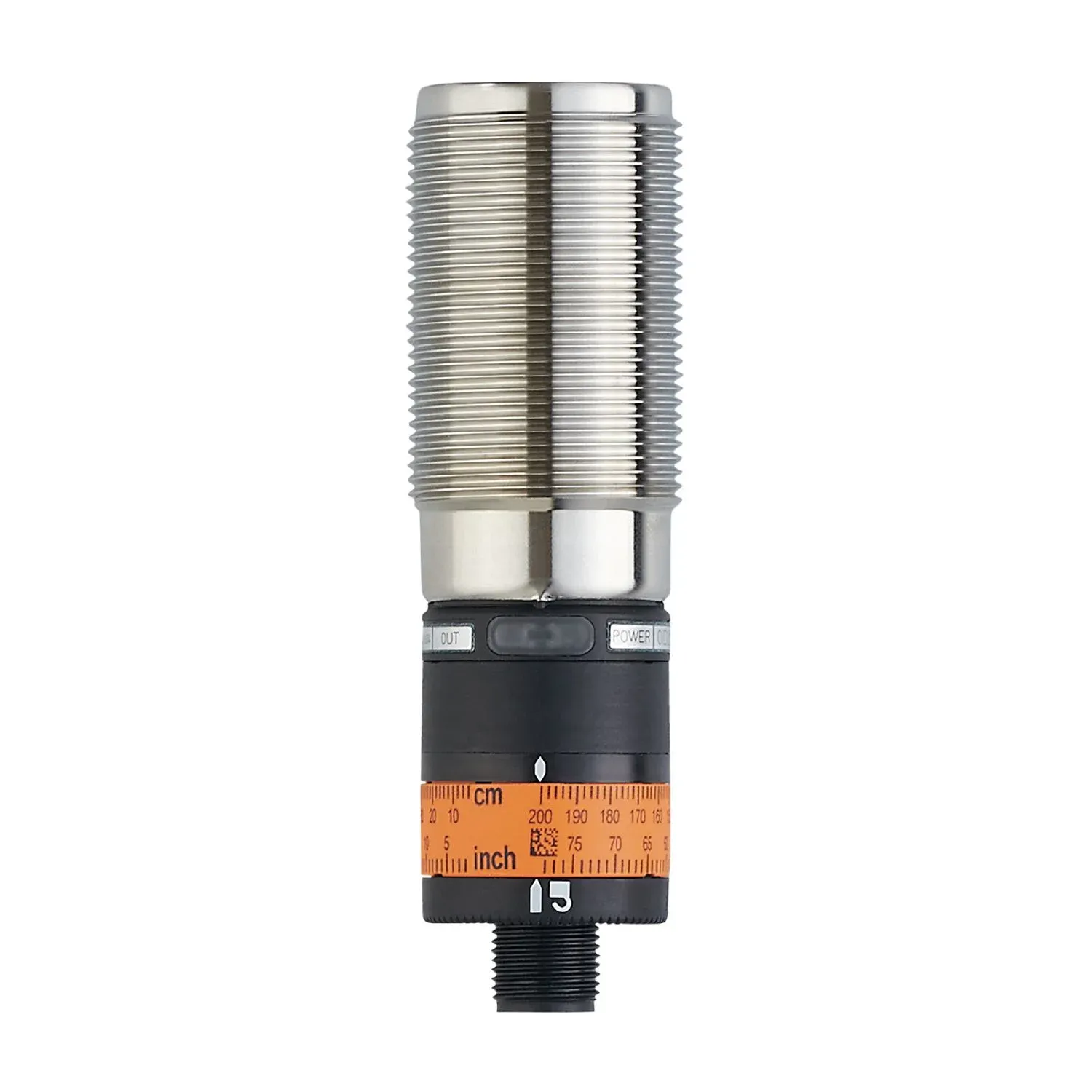

IFM OID251
OID251
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range due to time-of-flight measurement
Reliable background suppression and colour-independent detection
Easy parameter setting via turnable, lockable setting ring
Laser protection class 1 for the requirements of the automotive industry
User-friendly communication via IO-Link
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Laser protection class | 1 |
| Housing | threaded type |
Application
| Special feature | Background suppression |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | 75; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 650 |
| Typ. lifetime[h] [h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (complementary) |
| Max. current load per output[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 11 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Max. light spot diameter[mm] [mm] | 5 |
|---|---|
| Light spot dimensions refer to | 2 m |
| Detection range hysteresis[%] [%] | < 5 |
| Note on monitoring range hysteresis | black 6% remission |
| Background suppression available | yes |
| Background suppression[m] [m] | < 20 |
Measuring/setting range
| Measuring range[m] [m] | 0.03...2 |
|---|---|
| Sampling rate[Hz] [Hz] | 33 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 CDV |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Multiple switching signal Function Process data variable |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Process data variable |
| SIO mode | yes |
| Process data analogue | 1 |
| Process data binary | 1 |
| Min. process cycle time[ms] [ms] | 6.4 |
| Supported DeviceIDs | default 394 |
| default | 394 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Note on ambient temperature | at ta < -10 °C warm-up is necessary, laser is off |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| Laser protection class | 1 |
| Notes on laser protection | Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
| Caution: | laser light |
| laser class: | 1 |
| MTTF[years] [years] | 239 |
Mechanical data
| Weight[g] [g] | 206.5 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 100 |
| Thread designation | M30 x 1.5 |
| Materials | housing: stainless steel; front pane: PMMA; LED window: PC; PBT; PC; FKM |
Displays / operating elements
| Display | switching status LED, yellow operation LED, green |
|---|---|
| switching status | LED, yellow |
| operation | LED, green |
| Display unit | cm |
| Operating elements | setting ring |
Accessories
| Items supplied | lock nuts: 2 x M30, stainless steel |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
