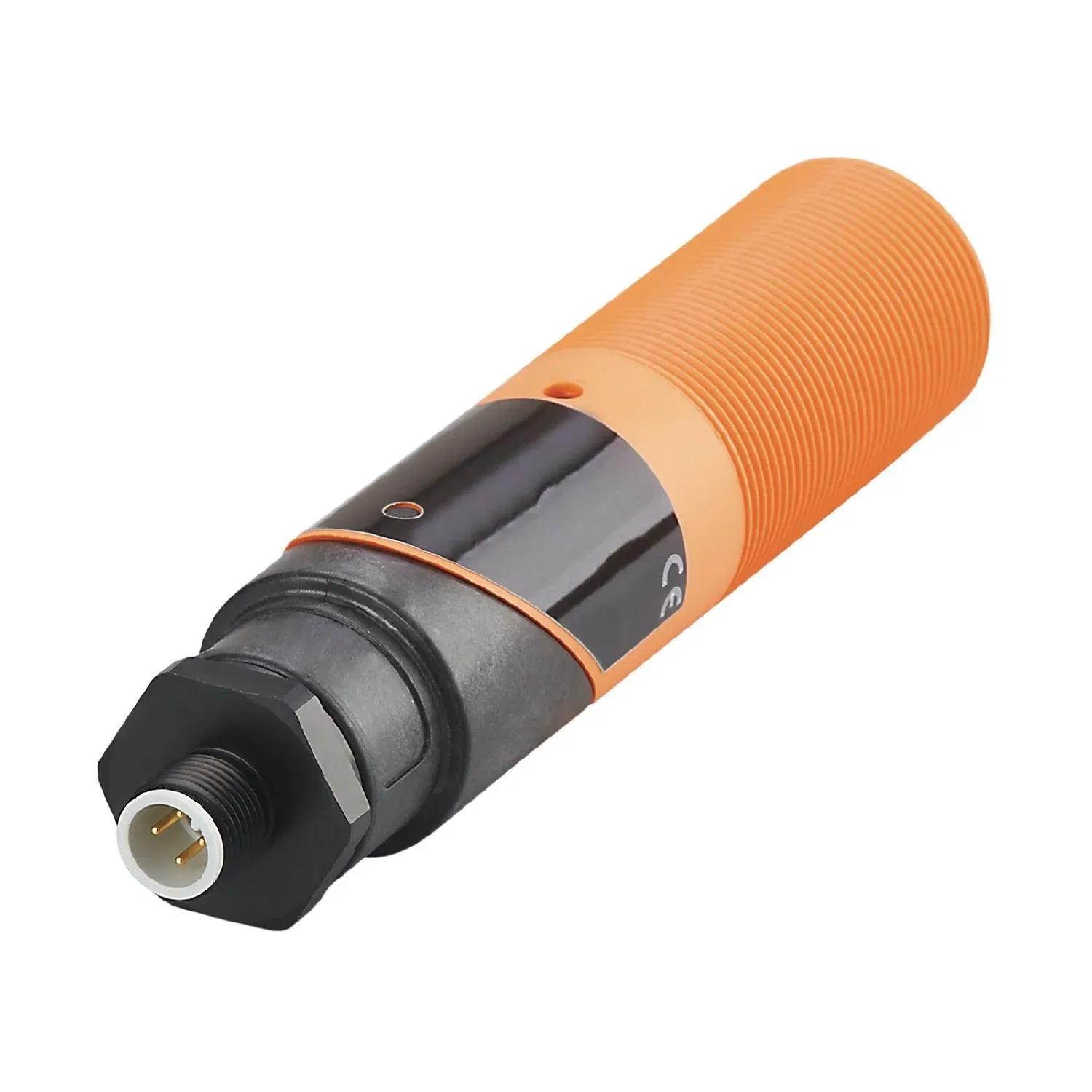

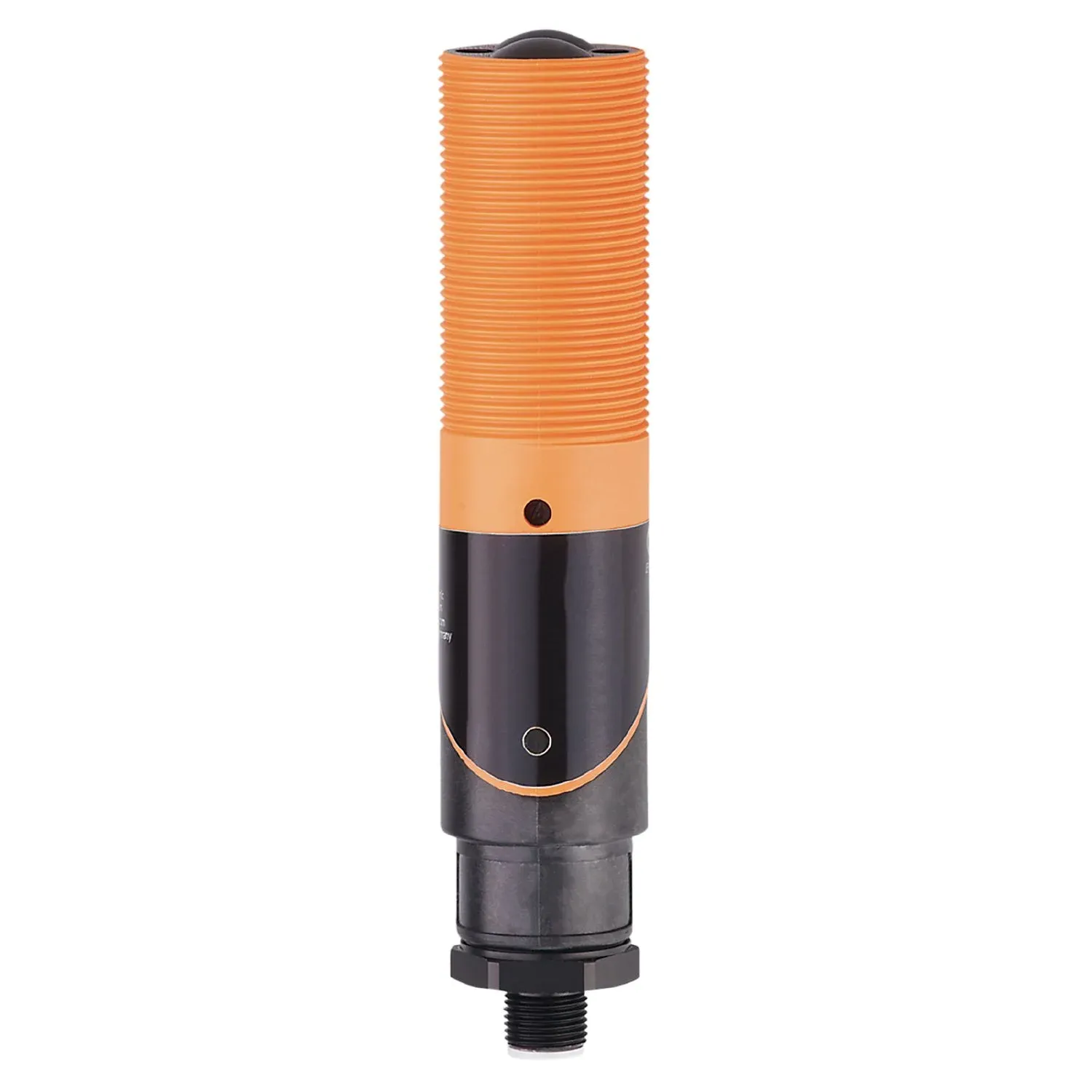

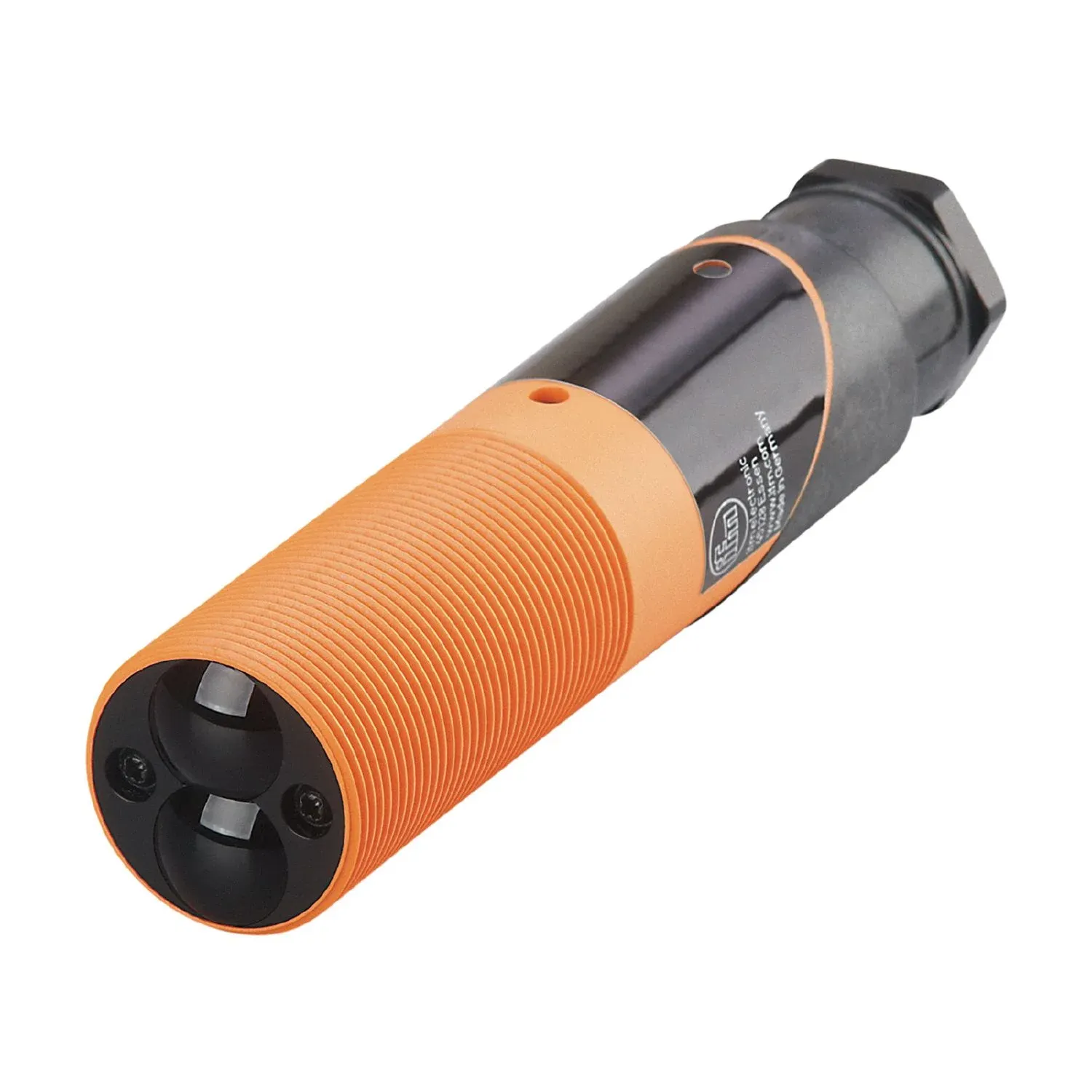

IFM OI5021
OI5021
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
Intuitive setting of the sensitivity via potentiometer
With AS-i interface
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | threaded type |
Application
| Function principle | Diffuse reflection sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Current consumption[mA] [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length[nm] [nm] | 880 |
Outputs
| Electrical design | AS-i |
|---|---|
| Output function | light-on mode |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range[mm] [mm] | < 1600; (white paper 200 x 200 mm) |
|---|---|
| Range adjustable | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 579 |
AS-i classification
| AS-i I/O configuration[hex] [hex] | 1 |
|---|---|
| AS-i ID code[hex] [hex] | 1 |
| AS-i certificate | 46201 |
| Assignment of the data bits | assignment switching signal (active = 1) not used not used not used |
| assignment | switching signal (active = 1) |
| Assignment of the parameter bits | Parameterbit Funktion P0 function P1 not used P2 not used P3 not used |
| Parameterbit | Funktion |
| P0 | function |
| P1 | not used |
| P2 | not used |
| P3 | not used |
Mechanical data
| Weight[g] [g] | 130.5 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 143 |
| Thread designation | M30 x 1.5 |
| Materials | PPO modified |
| Lens material | PMMA |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 screwdrivers |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
