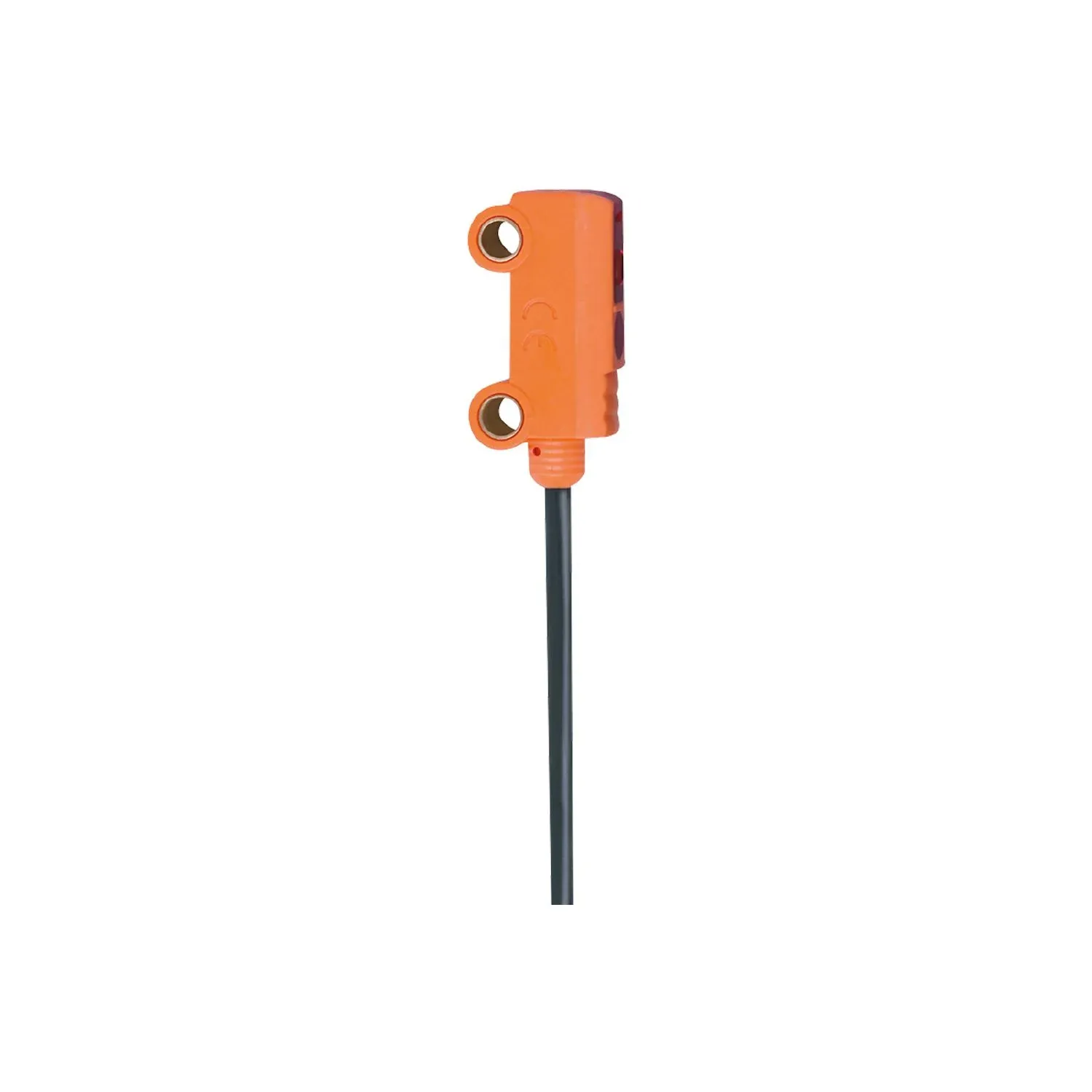

IFM OH5007
OH5007
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Extremely small housing for use where space is restricted
Reliable detection of tiny objects
For applications in robotics, assembly and handling technology
Simple alignment due to visible red light
Ready for operation immediately thanks to fixed setting
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Special feature | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Typ. lifetime[h] [h] | 75000 |
| Reference temperature for service life[°C] [°C] | 25 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on mode |
| Permanent current rating of switching output DC[mA] [mA] | 50 |
| Switching frequency DC[Hz] [Hz] | 800 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range[mm] [mm] | 1...30; (white paper 200 x 200 mm 90% remission) |
|---|---|
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 4.5 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
Response times
| Response time[s] [s] | < 0.6 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...50 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|
Mechanical data
| Weight[g] [g] | 14.8 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 25.1 x 7.6 x 12.5 |
| Materials | housing: ABS |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 x LED, yellow unsafe zone 1 x LED, yellow flashing |
|---|---|
| switching status | 1 x LED, yellow |
| unsafe zone | 1 x LED, yellow flashing |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.2 m, PVC |
|---|---|
| Connector | 1 x M8; coding: A |
