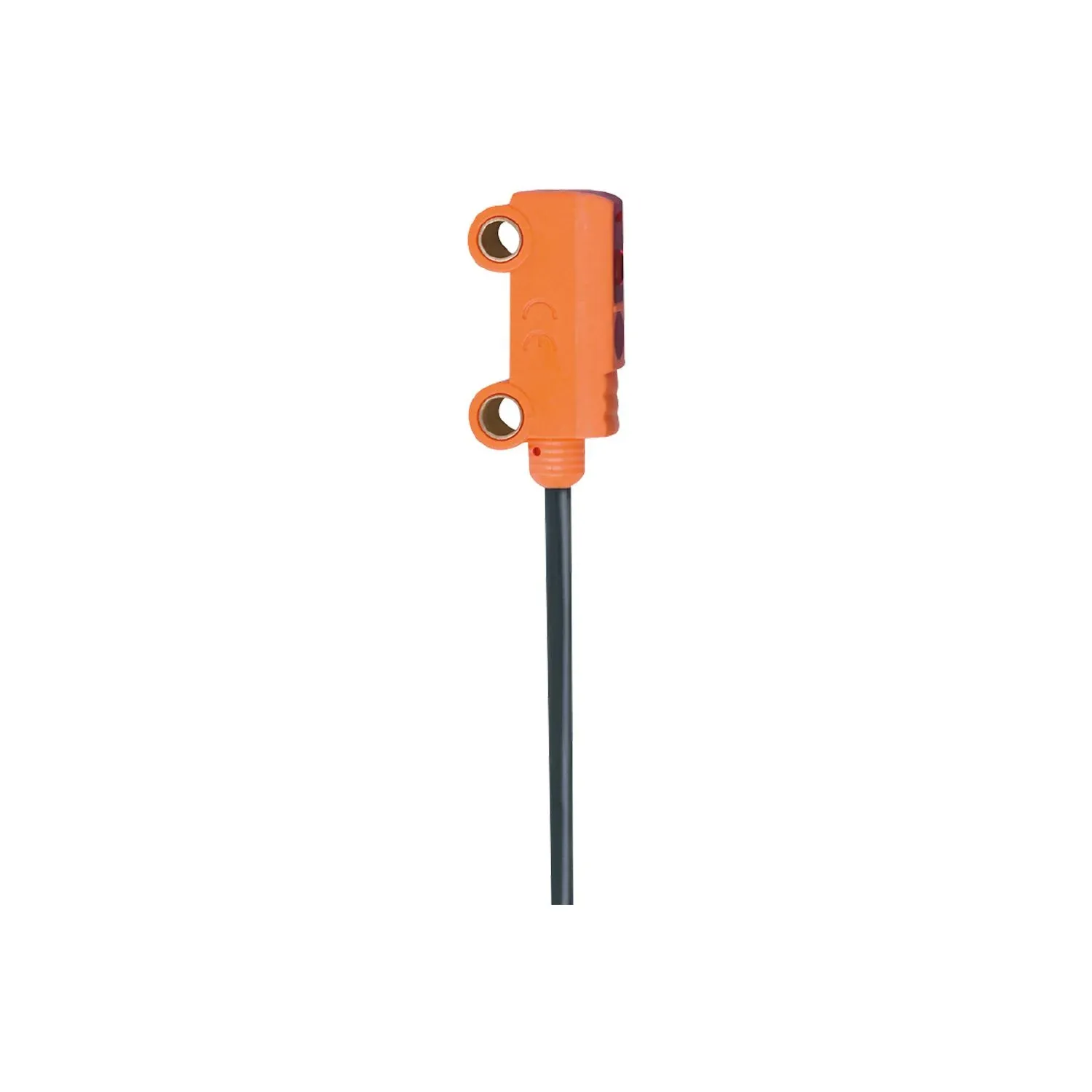

IFM OH5001
OH5001
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Extremely small housing for use where space is restricted
Reliable detection of tiny objects
For applications in robotics, assembly and handling technology
Simple alignment due to visible red light
Ready for operation immediately thanks to fixed setting
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 660 |
| Typ. lifetime[h] [h] | 75000 |
| Reference temperature for service life[°C] [°C] | 25 |
Outputs
| Overload protection | yes |
|---|
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range[m] [m] | < 1.2 |
| Max. light spot diameter[mm] [mm] | 10 |
| Light spot dimensions refer to | Range |
Operating conditions
| Ambient temperature[°C] [°C] | -20...50 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|
Mechanical data
| Weight[g] [g] | 26.8 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 25.1 x 7.6 x 12.5 |
| Materials | housing: ABS |
| Lens material | PMMA |
| Lens alignment | side lens |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PVC; 2 x 0.09 mm² |
|---|
