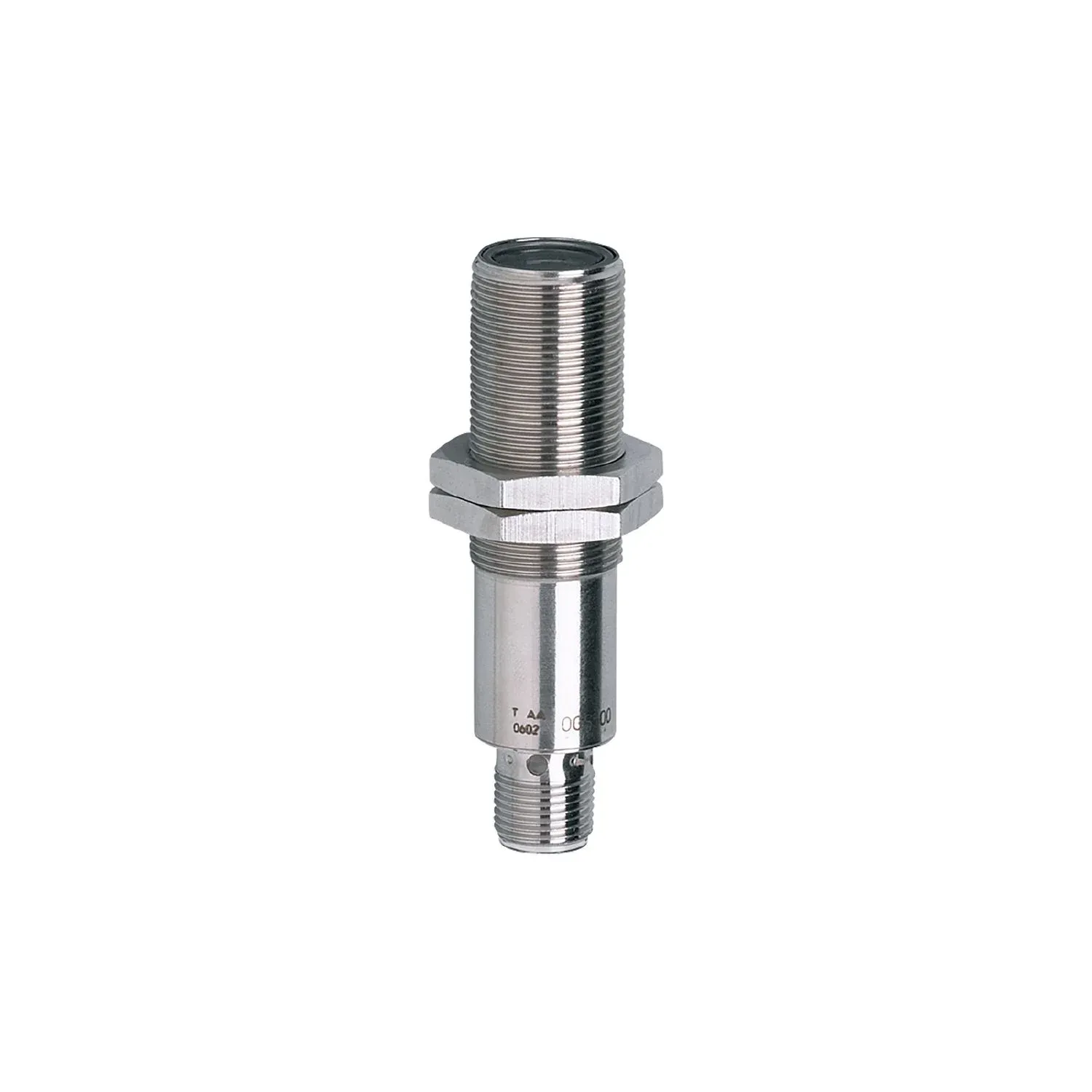

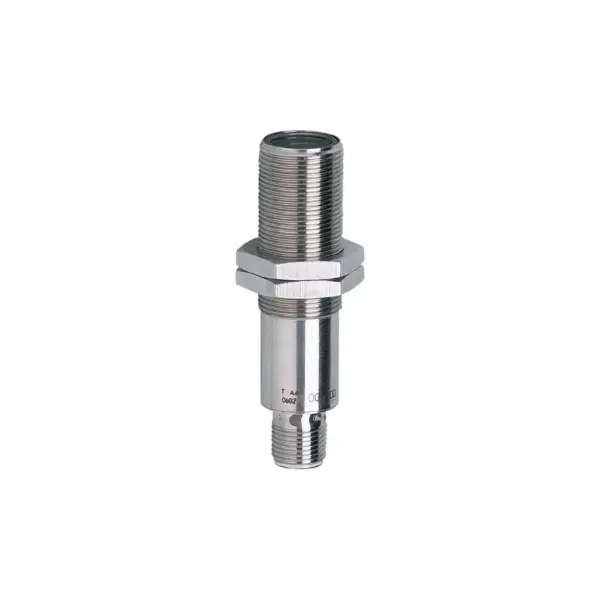

IFM OGS500
OGS500
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust stainless steel housing for use in harsh industrial environments
Very long range
Ready for operation immediately thanks to fixed setting
Wide range of fixing components for quick and easy mounting
Excellent price/performance ratio
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | threaded type |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 624 |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range[m] [m] | < 25 |
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 1000 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 629 |
Mechanical data
| Weight[g] [g] | 62.3 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 72 |
| Thread designation | M18 x 1 |
| Materials | stainless steel (316L/1.4404); PA; EPDM |
| Lens material | PMMA |
Displays / operating elements
| Display | operation 1 x LED, green |
|---|---|
| operation | 1 x LED, green |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
