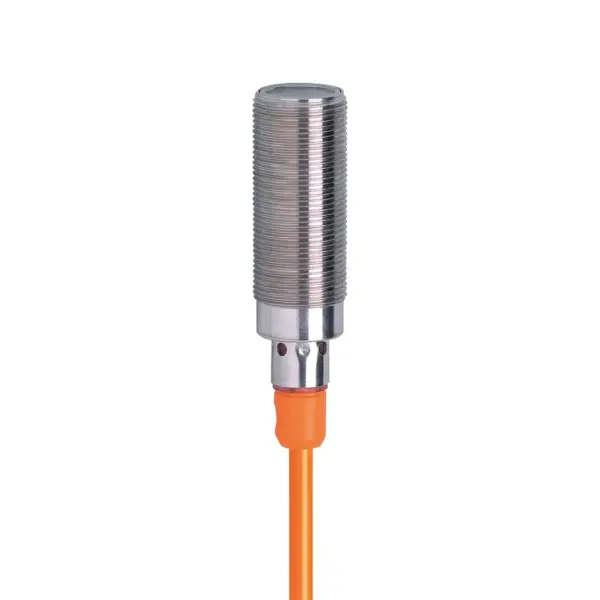

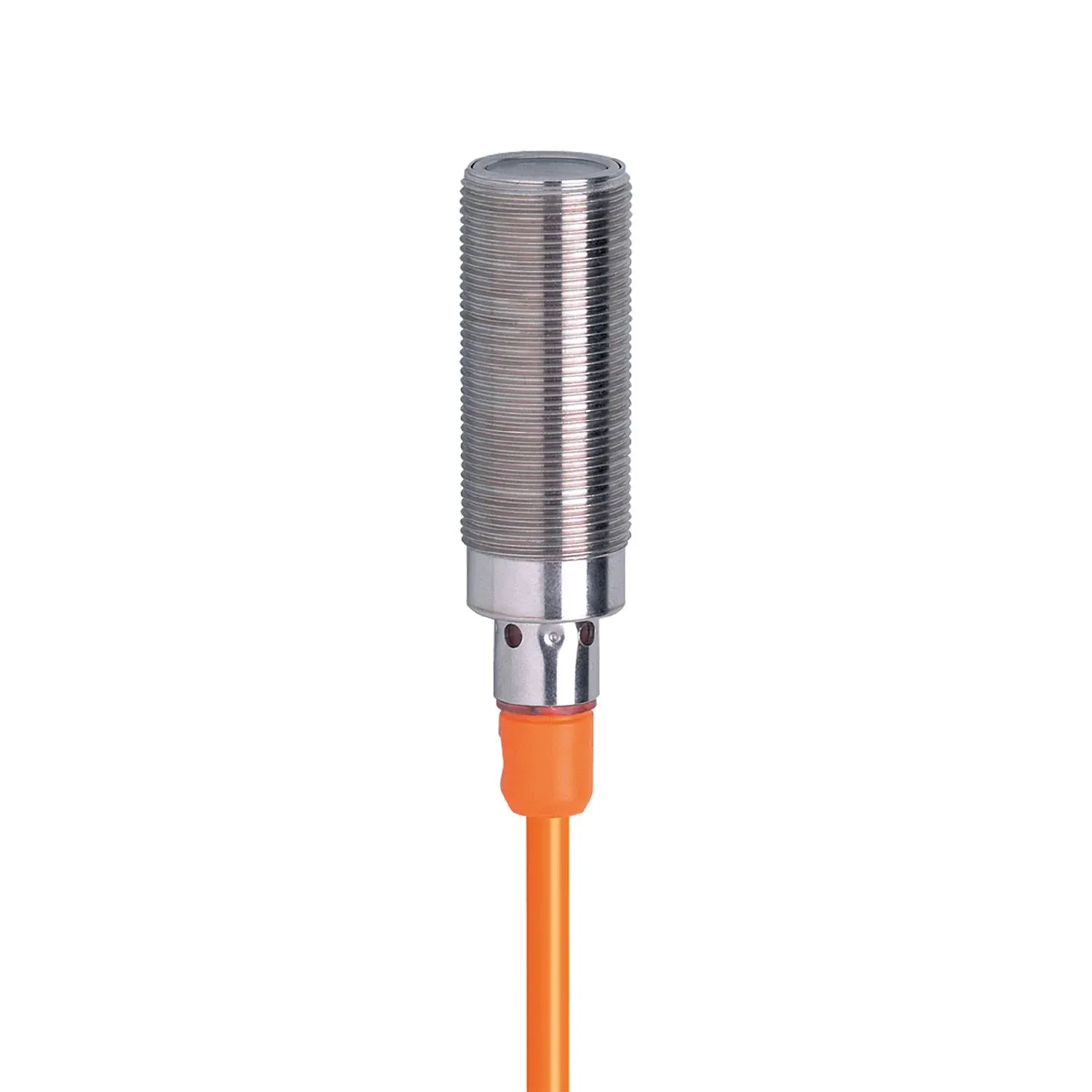

IFM OGS301
OGS301
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust stainless steel housing for use in the food industry
Resistant to high-pressure cleaning with aggressive cleaning agents
High protection rating for the requirements of harsh industrial environments
Ready for operation immediately thanks to fixed setting
Very long range
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | threaded type |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 15 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range[m] [m] | < 20 |
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 800 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 755 |
Mechanical data
| Weight[g] [g] | 245.8 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 68.6 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (316L/1.4404); Sealing: EPDM |
| Lens material | PMMA |
Displays / operating elements
| Display | operation 1 x LED, green |
|---|---|
| operation | 1 x LED, green |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 6 m, PVC; 3 x 0.34 mm² |
|---|
