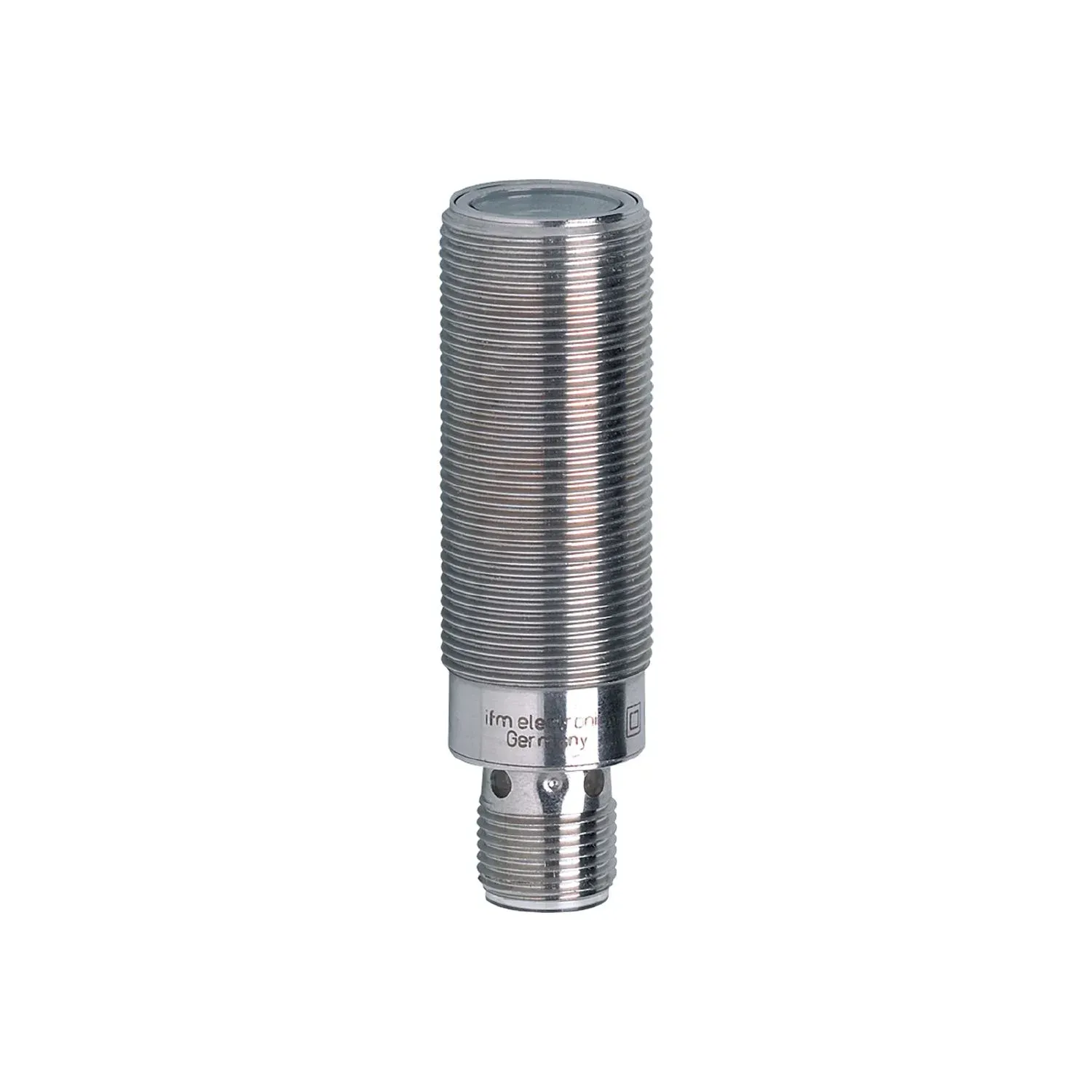

IFM OGP300
OGP300
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust stainless steel housing for use in the food industry
Resistant to high-pressure cleaning with aggressive cleaning agents
High protection rating for the requirements of harsh industrial environments
Ready for operation immediately thanks to fixed setting
Very long range
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | threaded type |
Application
| Special feature | polarisation filter |
|---|---|
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 15 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 624 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 150; (200 (...60 °C)) |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range referred to prismatic reflector[m] [m] | 0.03...4; (Prismatic reflector Ø 80 E20005) |
|---|---|
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 160 |
| Light spot dimensions refer to | at maximum range |
| Polarisation filter available | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 509 |
Mechanical data
| Weight[g] [g] | 55 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 60 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (316L/1.4404); Sealing: EPDM |
| Lens material | PMMA |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
