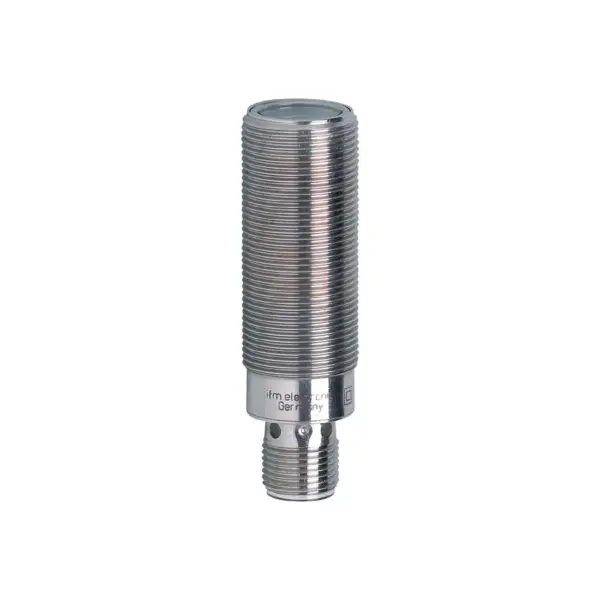

IFM OGP201
OGP201
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust stainless steel housing for use in harsh industrial environments
Very long range
Ready for operation immediately thanks to fixed setting
Wide range of fixing components for quick and easy mounting
Excellent price/performance ratio
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | threaded type |
Application
| Special feature | polarisation filter |
|---|---|
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 15 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 624 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on mode |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range referred to prismatic reflector[m] [m] | 0.03...4; (Prismatic reflector Ø 80 E20005) |
|---|---|
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 160 |
| Light spot dimensions refer to | at maximum range |
| Polarisation filter available | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 500 |
Mechanical data
| Weight[g] [g] | 49.15 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 60 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (316L/1.4404) |
| Lens material | PMMA |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
