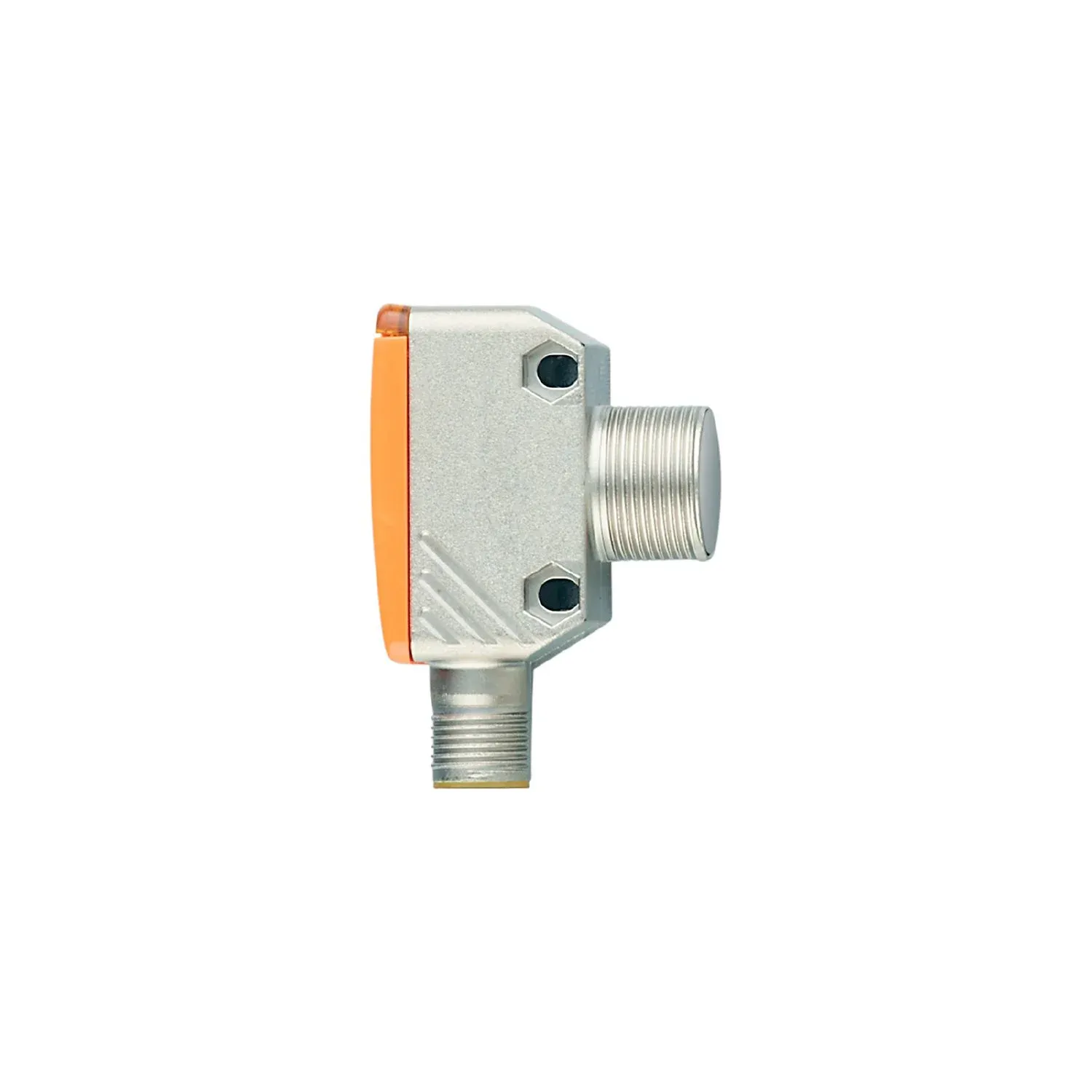

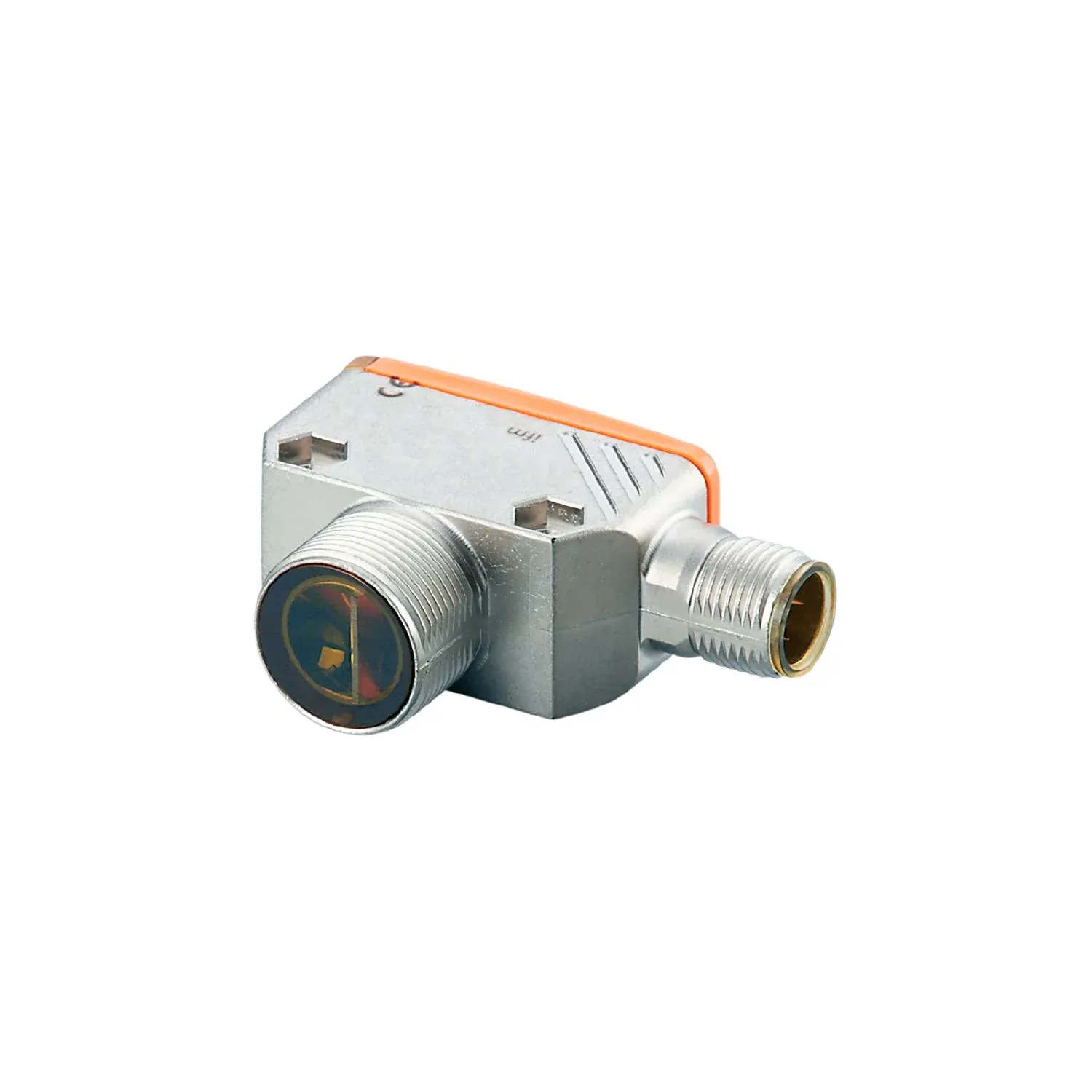

IFM OGH283
OGH283
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust rectangular metal housing with M18 thread on the side
Particularly space-saving design for use where space is restricted
Precise background suppression
Ready for operation immediately thanks to fixed setting
Excellent price/performance ratio
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular with M18 thread |
Application
| Special feature | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | 25 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 645 |
Outputs
| Electrical design | NPN |
|---|---|
| Output function | light-on mode |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range[mm] [mm] | < 200; (white paper 200 x 200 mm 90% remission) |
|---|---|
| Range on white object (90 % remission)[mm] [mm] | < 200 |
| Range on grey object (18 % remission)[mm] [mm] | < 200 |
| Range on black object (6 % remission)[mm] [mm] | < 190 |
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 13 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 3.1 Measuring Sensor Common - I&D Identification and Diagnosis Function Multiple switching signal Function Teach channel |
| Smart Sensor - SSP 3.1 | Measuring Sensor |
| Common - I&D | Identification and Diagnosis |
| Function | Teach channel |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 10 |
| IO-Link process data (cyclical) | process value 16 device status 4 binary switching information 1 |
| process value | 16 |
| device status | 4 |
| binary switching information | 1 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter |
| Supported DeviceIDs | default 1139 |
| default | 1139 |
| Note | For further information please see the IODD PDF file under "Downloads" |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...60 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 782 |
| UL approval | Ta -25...60 °C Enclosure type Type 1 power supply Class 2 File number UL E174191 |
| Ta | -25...60 °C |
| Enclosure type | Type 1 |
| power supply | Class 2 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 58 |
|---|---|
| Housing | rectangular with M18 thread |
| Dimensions[mm] [mm] | 52.6 x 19.1 x 35.9 |
| Thread designation | M18 x 1 |
| Materials | diecast zinc; PEI |
| Lens material | PEI |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
Accessories
| Items supplied | lock nut: 1 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
