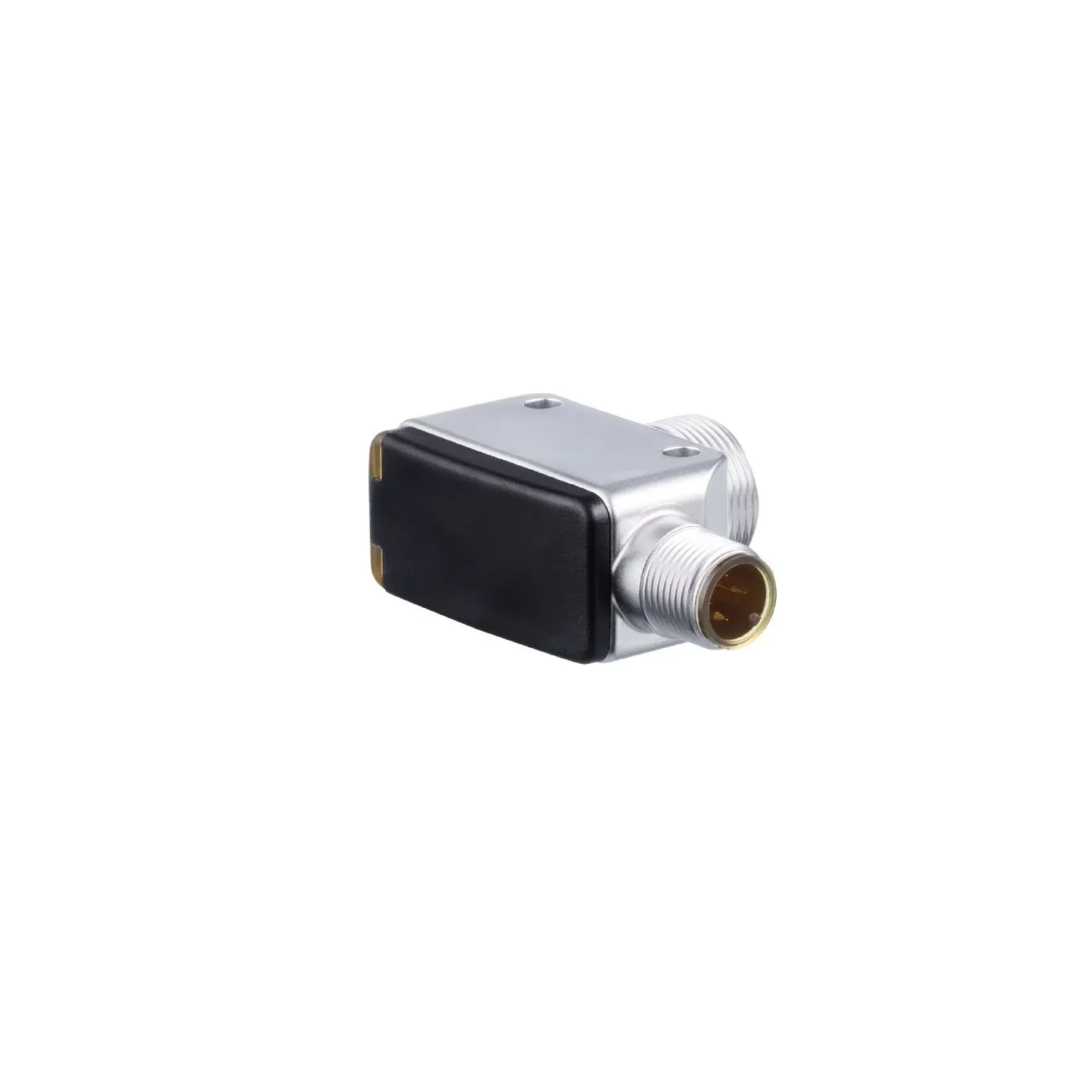

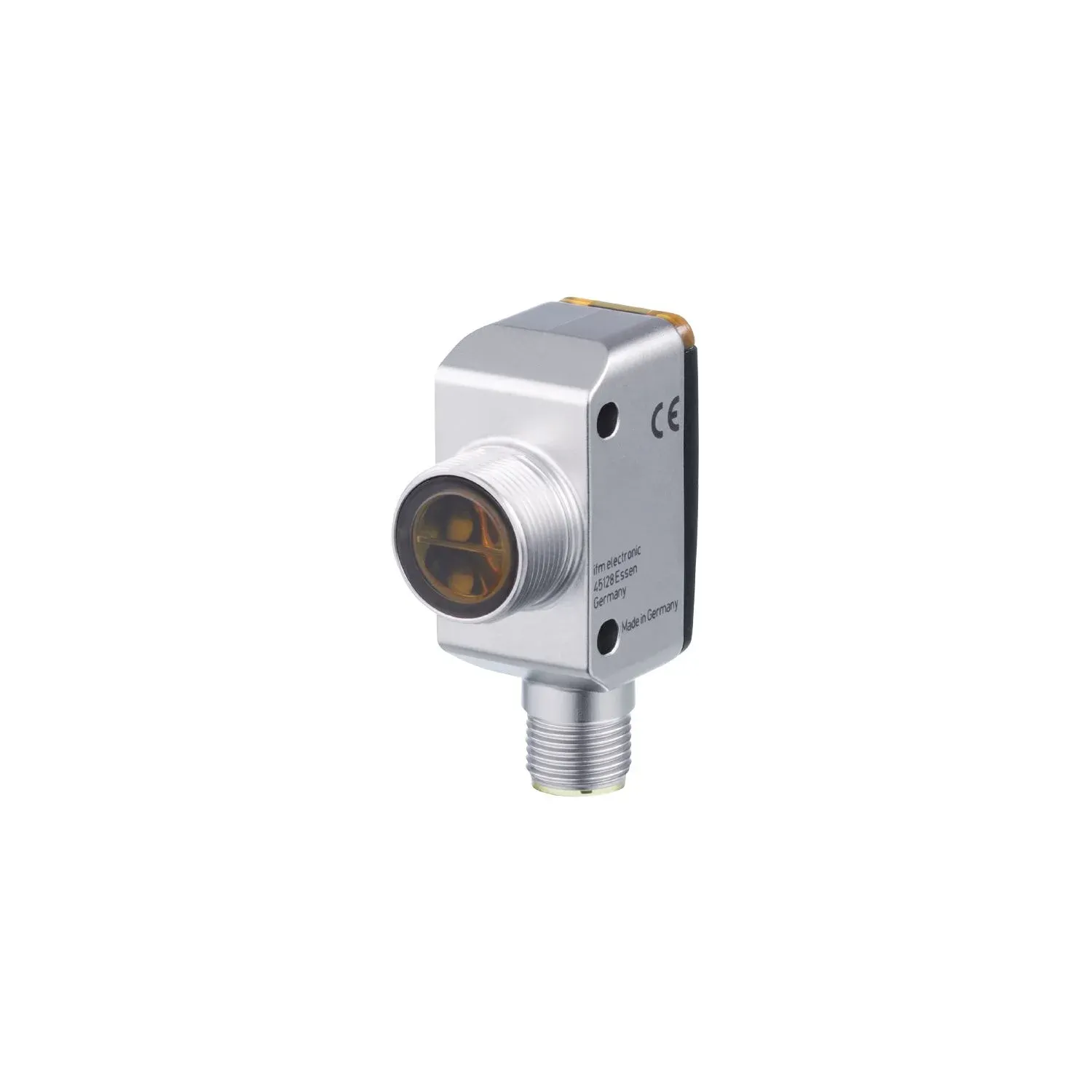

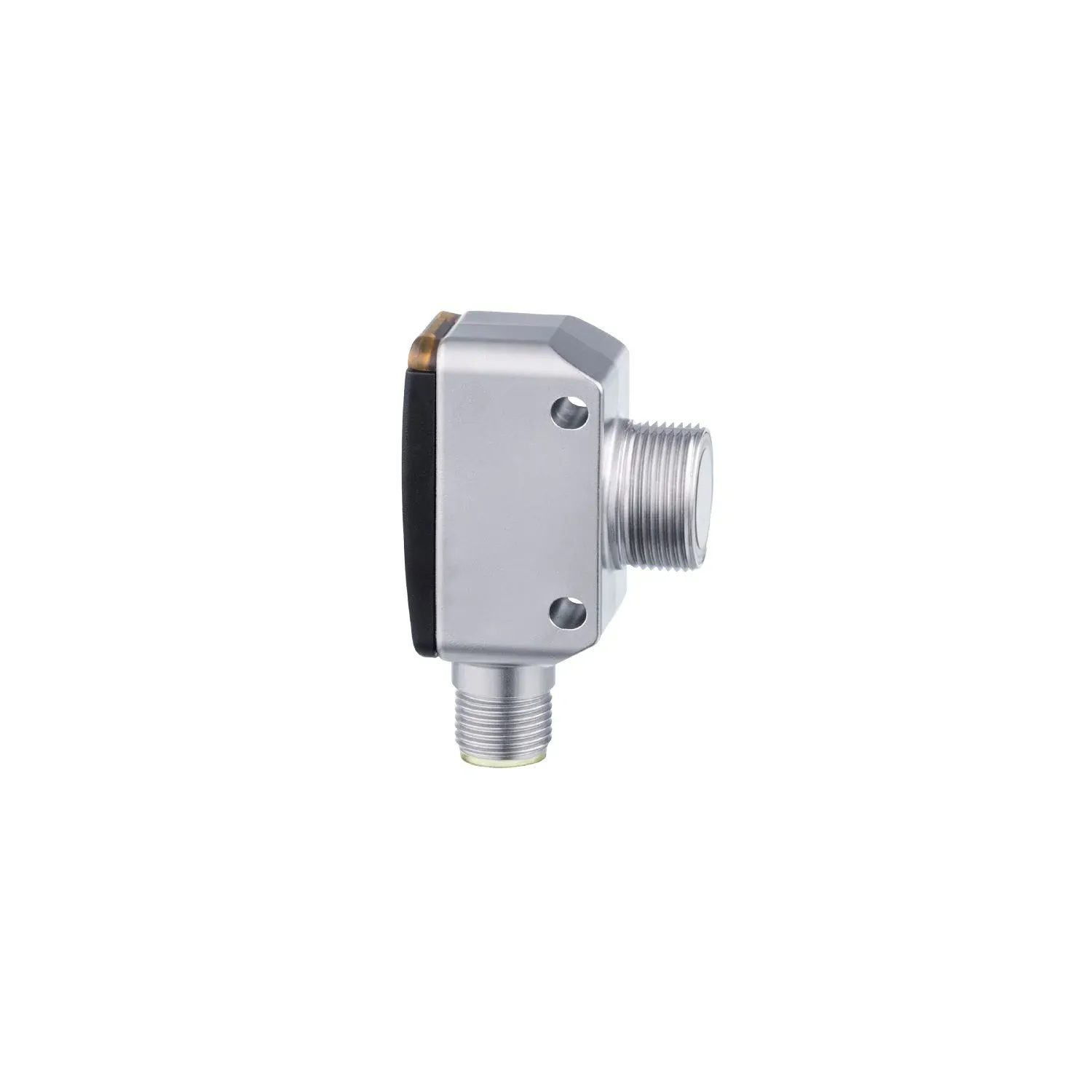

IFM OGE383
OGE383
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust stainless steel housing for use in the food industry
Resistant to high-pressure cleaning with aggressive cleaning agents
High protection rating for the requirements of harsh industrial environments
Ready for operation immediately thanks to fixed setting
Very long range
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | rectangular with M18 thread |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | 16 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length[nm] [nm] | 860 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Transmitter / receiver | receiver |
|---|---|
| Range[m] [m] | < 15 |
| Range adjustable | no |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...80 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 961 |
Mechanical data
| Weight[g] [g] | 78 |
|---|---|
| Housing | rectangular with M18 thread |
| Dimensions[mm] [mm] | 52.9 x 20 x 34.6 |
| Thread designation | M18 x 1 |
| Materials | stainless steel (630/1.4542/17-4 PH); PEI |
| Lens material | PEI |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
Accessories
| Items supplied | lock nuts: 2 x M18, stainless steel |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
