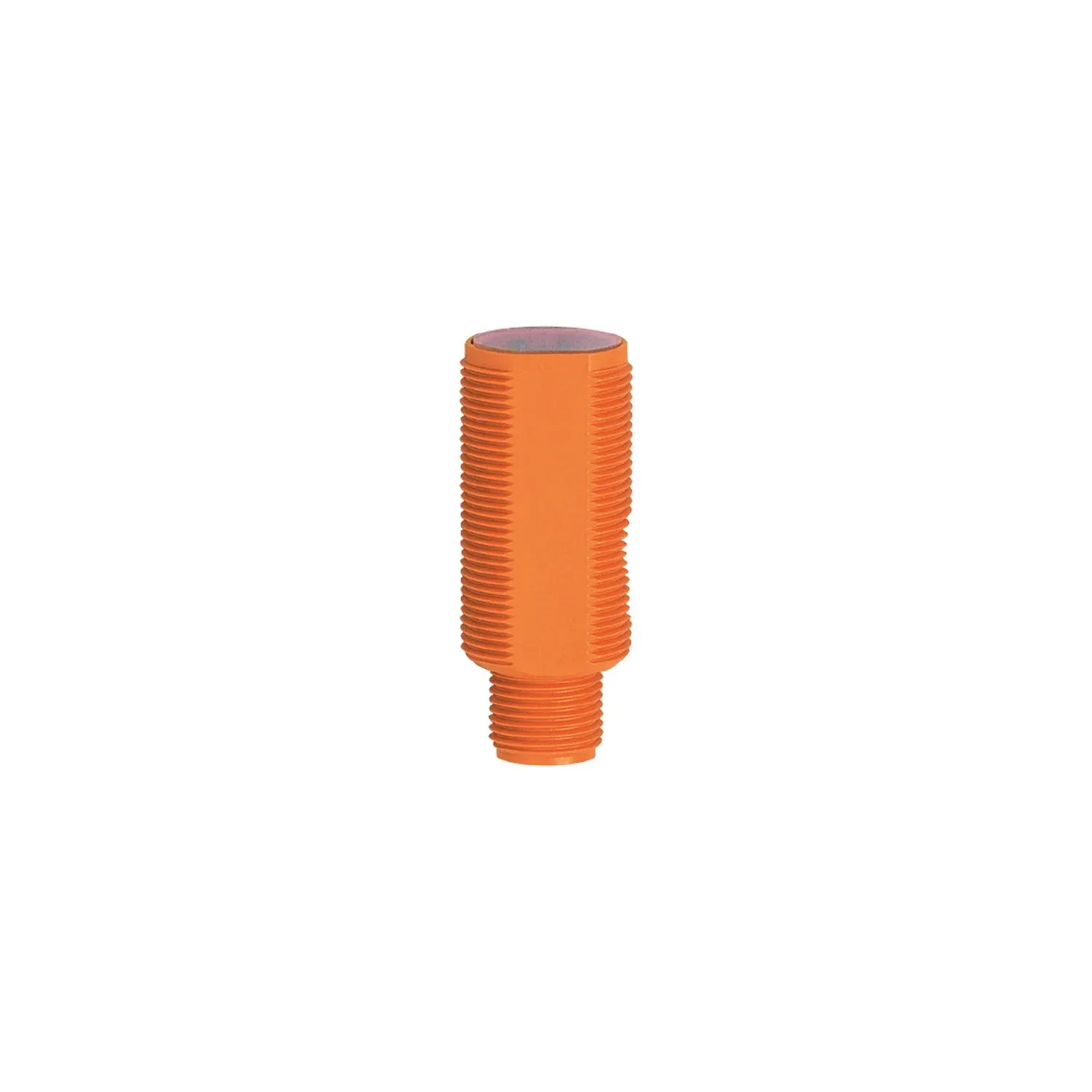

IFM OGE102
OGE102
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
For use in conveying and materials handling
Ready for operation immediately thanks to fixed setting
Excellent price/performance ratio
Low-cost alternative to units with metal housing
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | threaded type |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | 8 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
Outputs
| Electrical design | NPN |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Transmitter / receiver | receiver |
|---|---|
| Range[m] [m] | < 8 |
| Range adjustable | no |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 67; (in conjunction with a corresponding connector) |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 1320 |
Mechanical data
| Weight[g] [g] | 14.4 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 44 |
| Thread designation | M18 x 1 |
| Materials | housing: ABS |
| Lens material | PMMA |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
