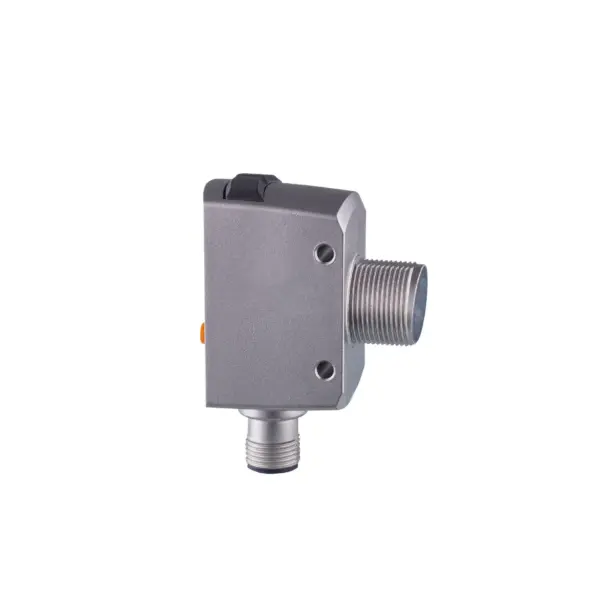

IFM OGD560
OGD560
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

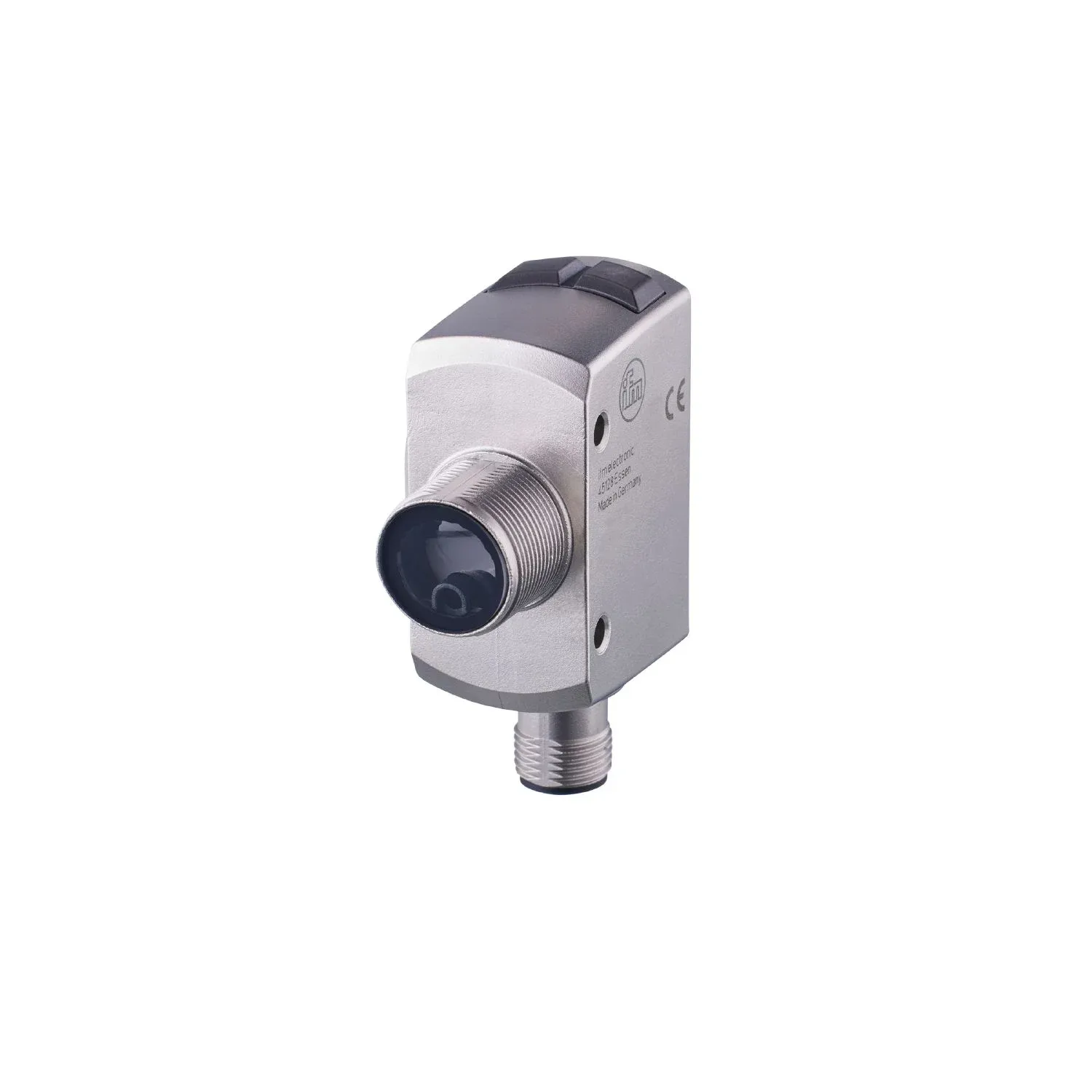

Small compact design with standard M18 thread and PMD time-of-flight technology
Photoelectric distance detection that is independent of colour and offers a long range of up to 4 m
Reliable detection on dark objects thanks to robust optical properties and generous angle tolerance
Simultaneous output of distance value and reflectivity for increased process reliability
Convenient operation via buttons or parameter setting via IO-Link
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Laser protection class | 2 |
| Housing | rectangular with M18 thread |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | 45; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 650 |
Inputs
| Inputs | Laser On/ Off |
|---|
Outputs
| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Output function | 2 x normally open / normally closed; (parameterisable) |
| Max. current load per output[mA] [mA] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Switching frequency DC[Hz] [Hz] | 40 |
Detection zone
| Max. light spot diameter[mm] [mm] | 7 |
|---|---|
| Light spot dimensions refer to | at maximum range |
| Background suppression[m] [m] | < 20 |
Measuring/setting range
| Setting range object reflectivity[%] [%] | 6...200; (reflectivity; 6 % black paper; 100 % white paper) |
|---|---|
| Measuring range[m] [m] | 0.05...2 |
| Sampling rate[Hz] [Hz] | 80 |
Software / programming
| Parameter setting options | Distance / reflectivity; hysteresis / window; sequence modulation to avoid mutual interference between up to 5 similar devices |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1.3 |
| SDCI standard | IEC 61131-9 |
| Profiles | Common - I&D Identification and Diagnosis Function Locator Function ProductURI |
| Common - I&D | Identification and Diagnosis |
| Function | ProductURI |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 5 |
| IO-Link process data (cyclical) | process value 2 x 16 device status 4 binary switching information 2 |
| process value | 2 x 16 |
| device status | 4 |
| binary switching information | 2 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter |
| Supported DeviceIDs | default 1955 |
| default | 1955 |
| Note | For further information please see the IODD PDF file under "Downloads" |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Note on ambient temperature | In ambient temperatures < -10 °C a warm-up time is necessary. Laser is off. |
| Storage temperature[°C] [°C] | -35...80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| Laser protection class | 2 |
| Notes on laser protection | Caution: laser light laser class: 2 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
| Caution: | laser light |
| laser class: | 2 |
| UL approval | Ta -25...60 °C Enclosure type Type 1 power supply Class 2 File number UL E174191 |
| Ta | -25...60 °C |
| Enclosure type | Type 1 |
| power supply | Class 2 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 134.75 |
|---|---|
| Housing | rectangular with M18 thread |
| Dimensions[mm] [mm] | 62 x 22.5 x 45.1 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (316L/1.4404); PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: PMMA |
| Lens alignment | side lens |

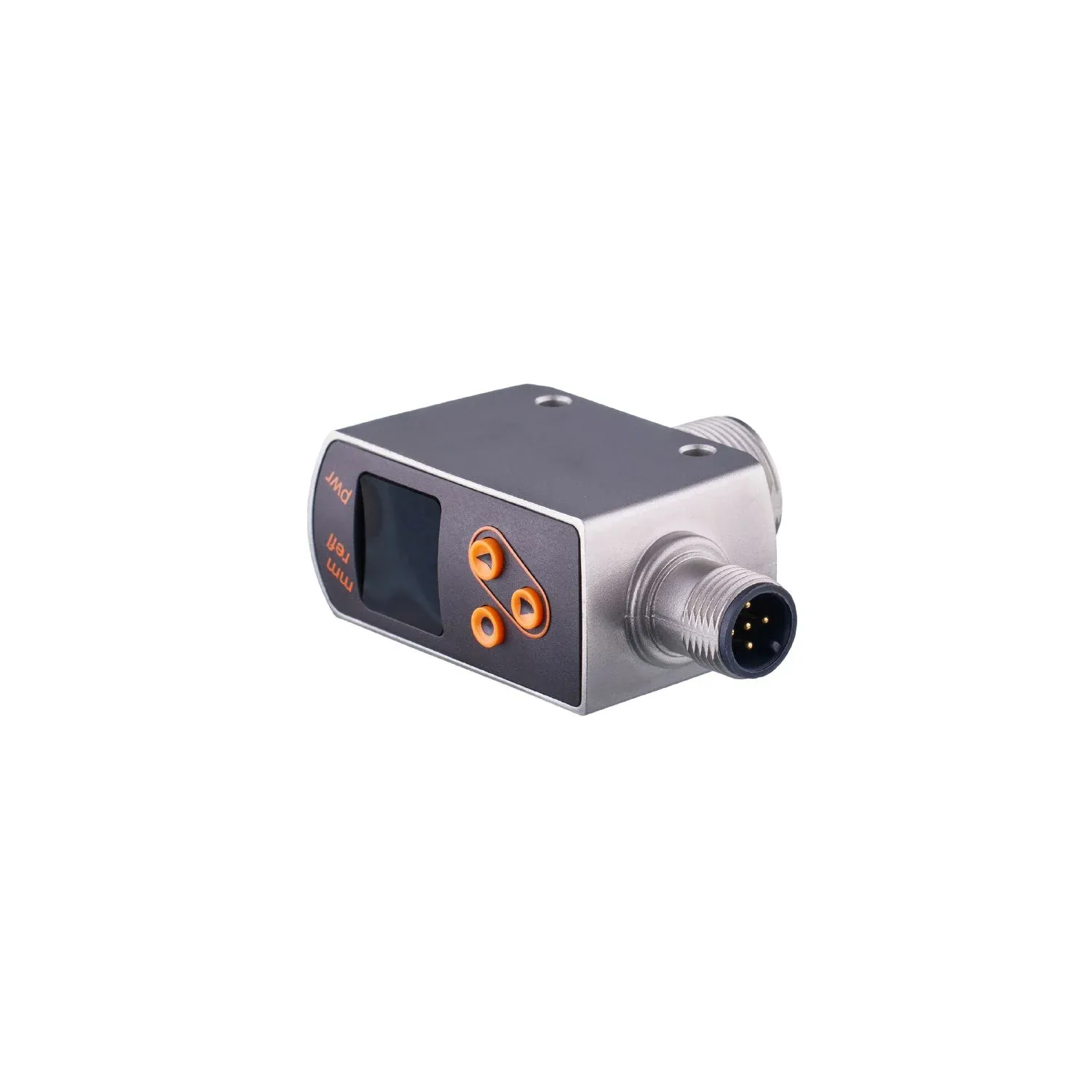

Displays / operating elements
| Display | switching status 2 x LED, yellow 1 x alphanumeric display, 4-digit |
|---|---|
| switching status | 2 x LED, yellow |
| Operating elements | 3 pushbutton |
| 3 | pushbutton |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A |
|---|
