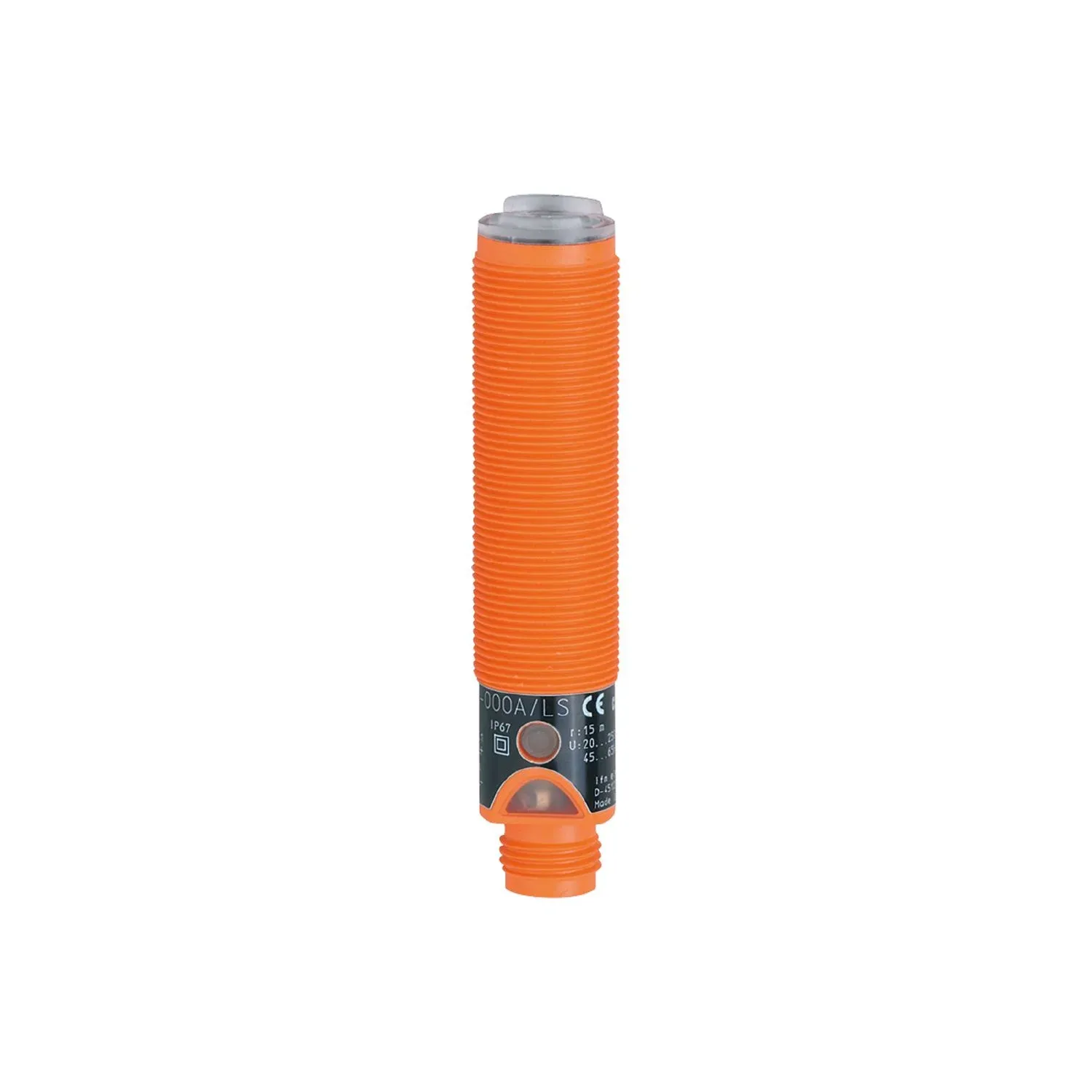

IFM OG0035
OG0035
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Intuitive setting of the sensitivity via pushbutton
LED display to check switching status and function
With combined AC/DC output stage
Robust housing for use in harsh industrial environments
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | threaded type |
Application
| Function principle | Diffuse reflection sensor |
|---|
Electrical data
| Frequency AC[Hz] [Hz] | 47...63 |
|---|---|
| Operating voltage[V] [V] | 20...250 AC/DC |
| Protection class | II |
| Reverse polarity protection | no |
| Type of light | infrared light |
| Wave length[nm] [nm] | 880 |
Outputs
| Output function | light-on mode |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 8 |
| Max. voltage drop switching output AC[V] [V] | 8 |
| Minimum load current[mA] [mA] | 5 |
| Max. leakage current[mA] [mA] | 1.7 |
| Permanent current rating of switching output AC[mA] [mA] | 90; (180 (...40 °C)) |
| Permanent current rating of switching output DC[mA] [mA] | 90; (180 (...40 °C)) |
| Short-time current rating of switching output[mA] [mA] | 600; (20 ms / 0,5 Hz) |
| Switching frequency AC[Hz] [Hz] | 25 |
| Switching frequency DC[Hz] [Hz] | 25 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Range[mm] [mm] | 1...600; (white paper 200 x 200 mm 90% remission) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter[mm] [mm] | 169 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 338 |
Mechanical data
| Weight[g] [g] | 27.5 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 76 |
| Thread designation | M18 x 1 |
| Materials | PBT |
| Lens material | PMMA |
Displays / operating elements
| Display | switching status 1 x LED, red function 1 x LED, red flashing |
|---|---|
| switching status | 1 x LED, red |
| function | 1 x LED, red flashing |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Remarks | Recommendation: Check the safe functioning of the unit after a short circuit. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x 1/2"; coding: C |
|---|
