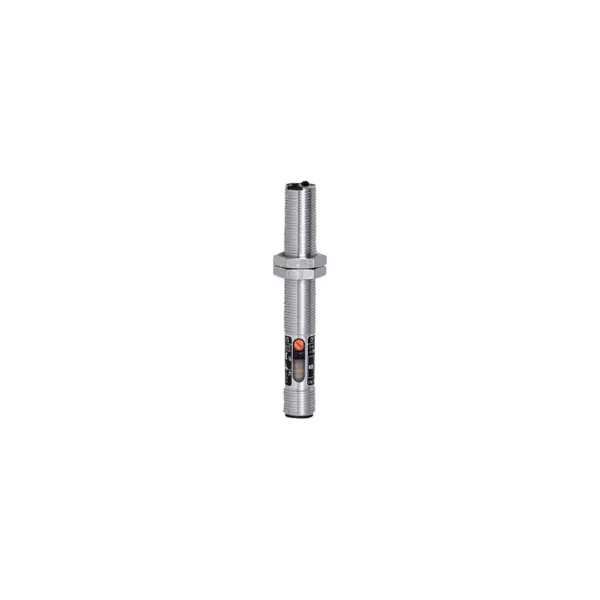

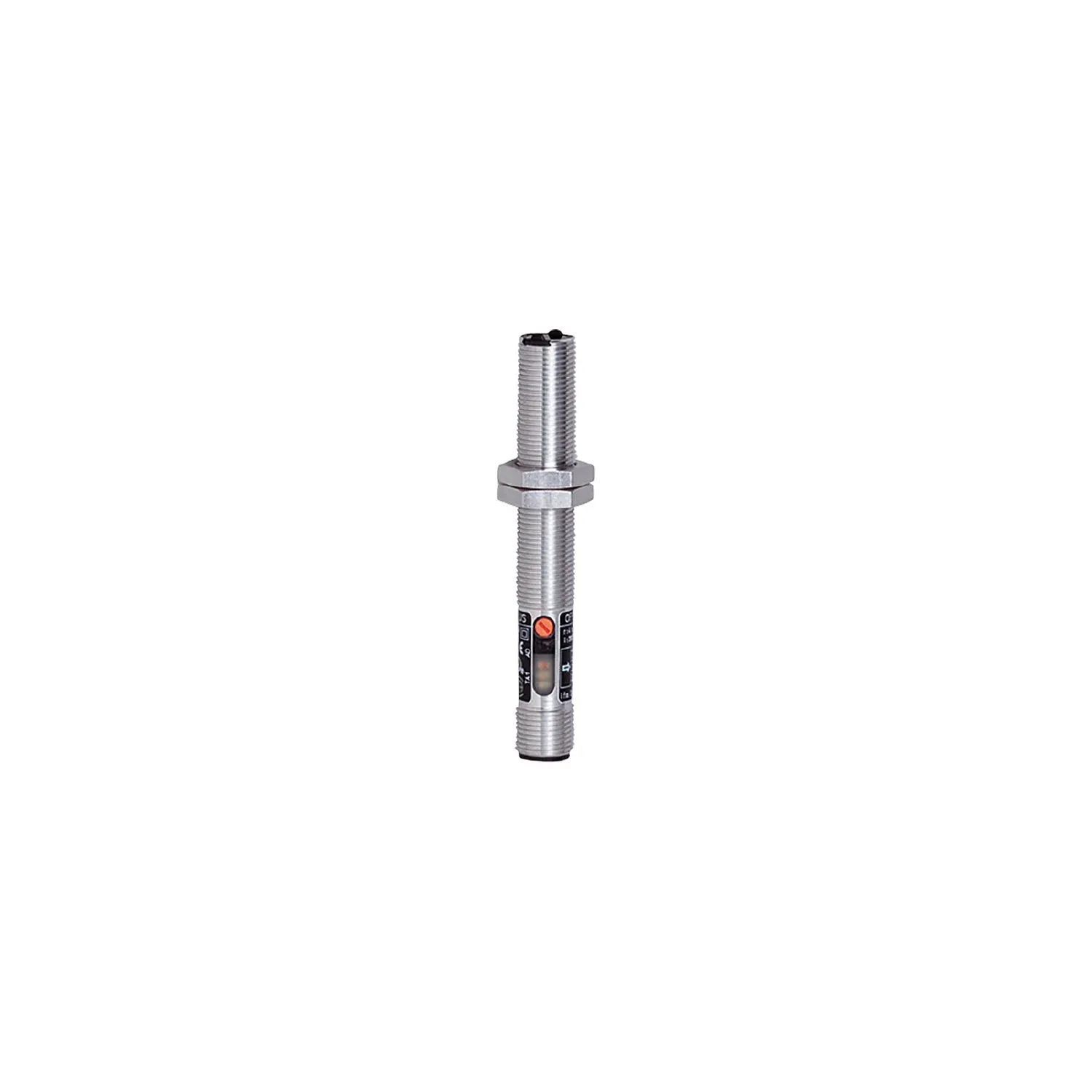

IFM OF5049
OF5049
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Intuitive setting of the sensitivity via potentiometer
With function check output to signal soiling or maladjustment
Robust metal housing for use in harsh industrial environments
Programmable light-on/dark-on mode
LED display to check operation, switching status and function
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | threaded type |
Application
| Special feature | Function check output |
|---|---|
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | < 35 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length[nm] [nm] | 880 |
Outputs
| Electrical design | NPN |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Function check output | yes |
| Max. voltage drop of function check output[V] [V] | 3.5 |
| Max. current load for function check output[mA] [mA] | 10 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 320 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range[mm] [mm] | 1...200; (white paper 200 x 200 mm) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter[mm] [mm] | 92 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 601 |
| UL approval | Ta < 40 °C Enclosure type Type 1 power supply Limited Voltage/Current UL approval no. E030 File number UL E174191 |
| Ta | < 40 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| UL approval no. | E030 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 43.3 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M12 x 1 / L = 74 |
| Thread designation | M12 x 1 |
| Materials | brass nickel-plated |
| Lens material | PMMA |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| function | 1 x LED, red |
Accessories
| Items supplied | lock nuts: 2 screwdrivers |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
