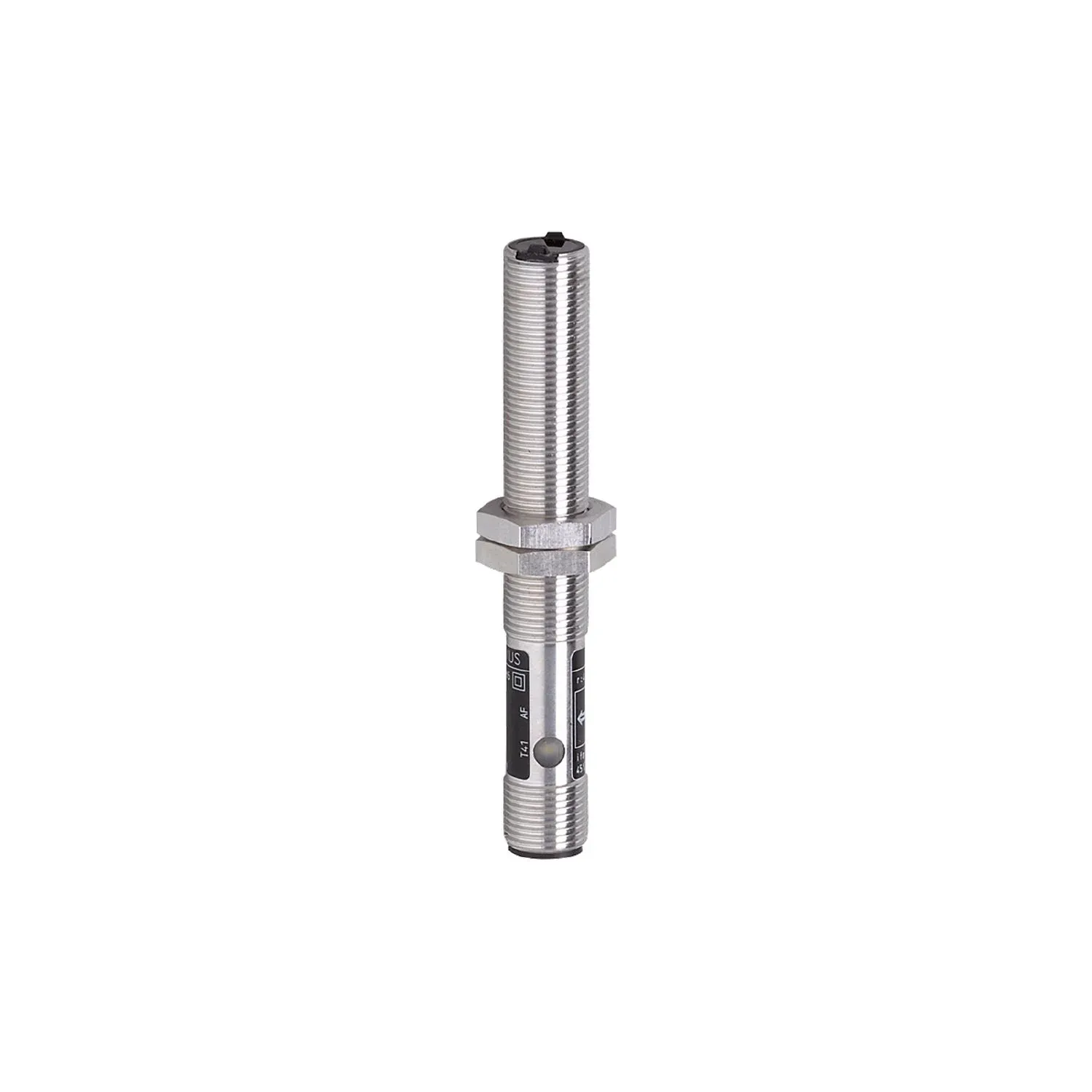

IFM OF5021
OF5021
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust metal housing for use in harsh industrial environments
Long range
LED display to check the operating status
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | threaded type |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | < 25 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length[nm] [nm] | 880 |
Outputs
| Short-circuit protection | yes |
|---|---|
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range[m] [m] | < 4 |
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 700 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 1597 |
| UL approval | Ta < 40 °C Enclosure type Type 1 power supply Limited Voltage/Current UL approval no. E030 File number UL E174191 |
| Ta | < 40 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| UL approval no. | E030 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 35.5 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M12 x 1 / L = 74 |
| Thread designation | M12 x 1 |
| Materials | housing: brass white bronze coated |
| Lens material | PMMA |
Displays / operating elements
| Display | operation 1 x LED, green |
|---|---|
| operation | 1 x LED, green |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
