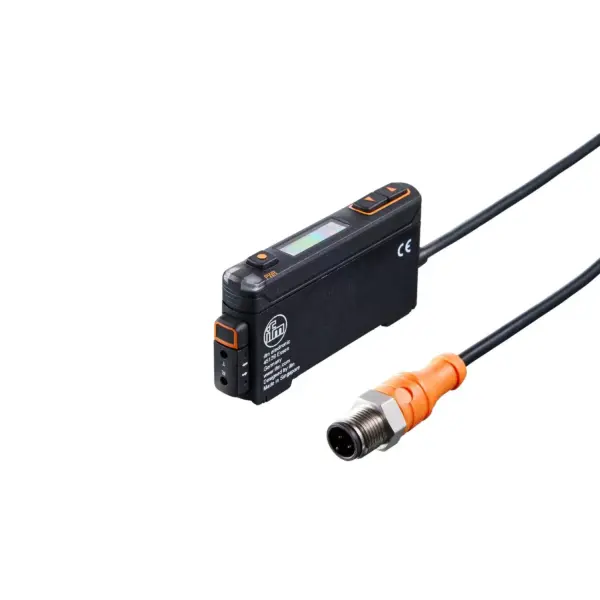

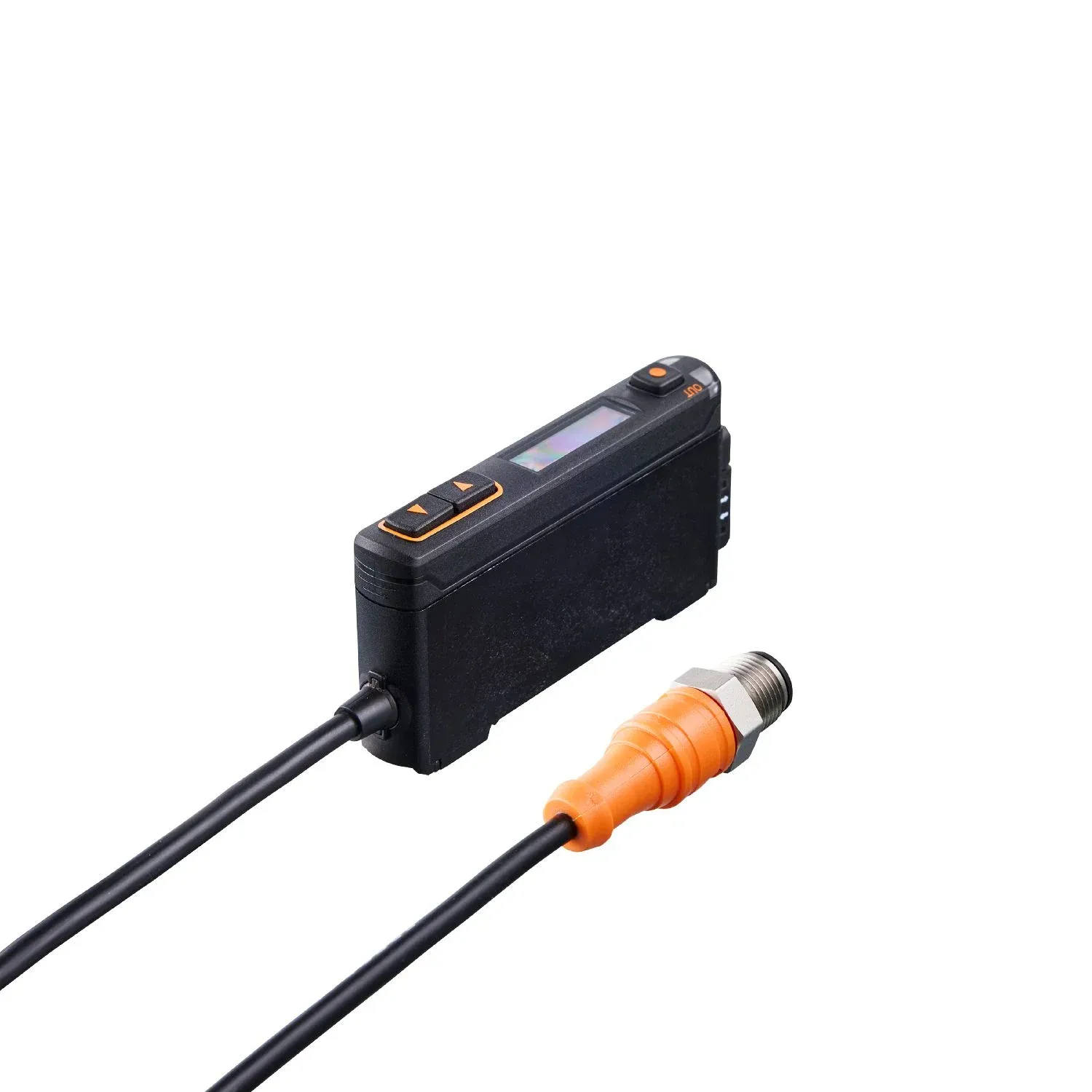

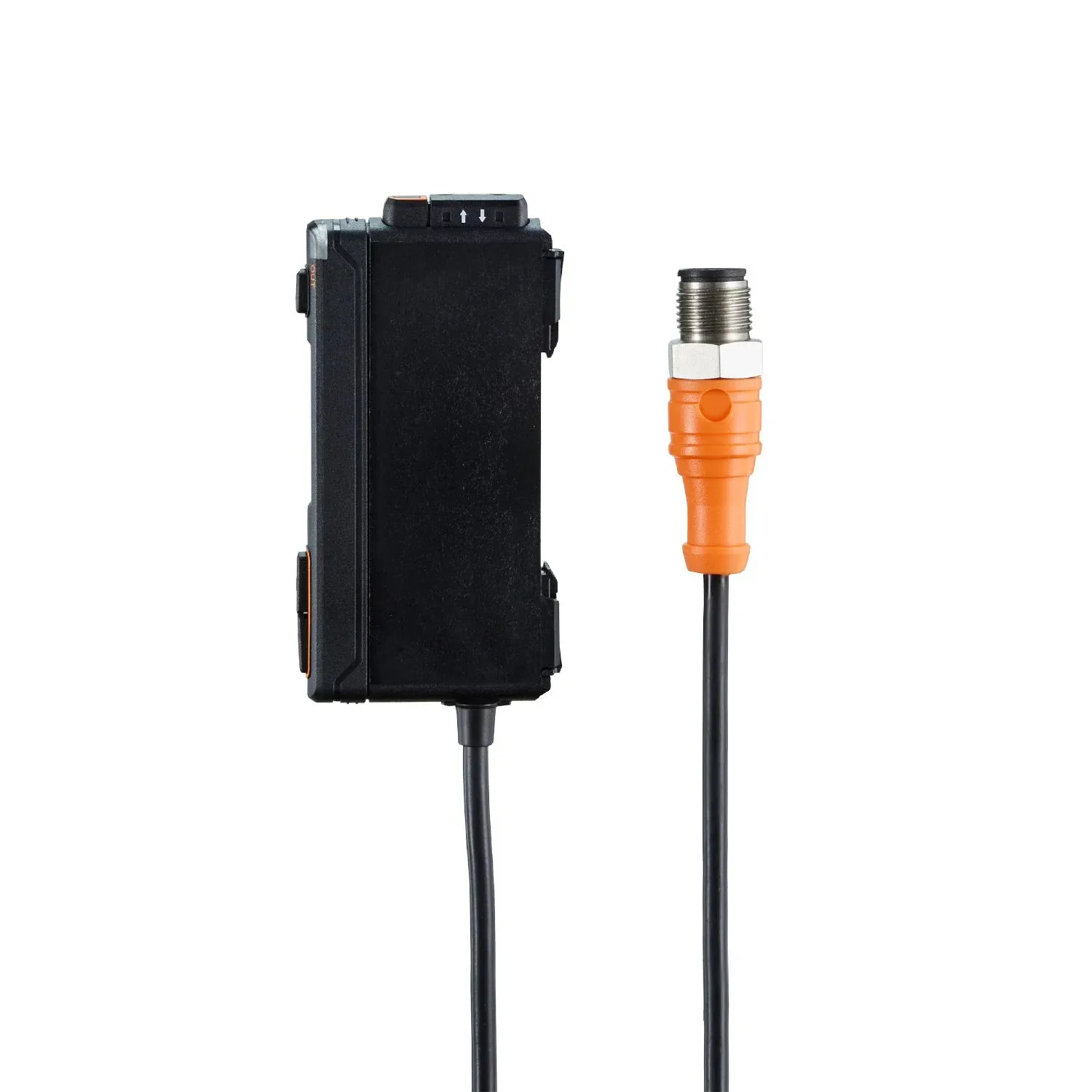

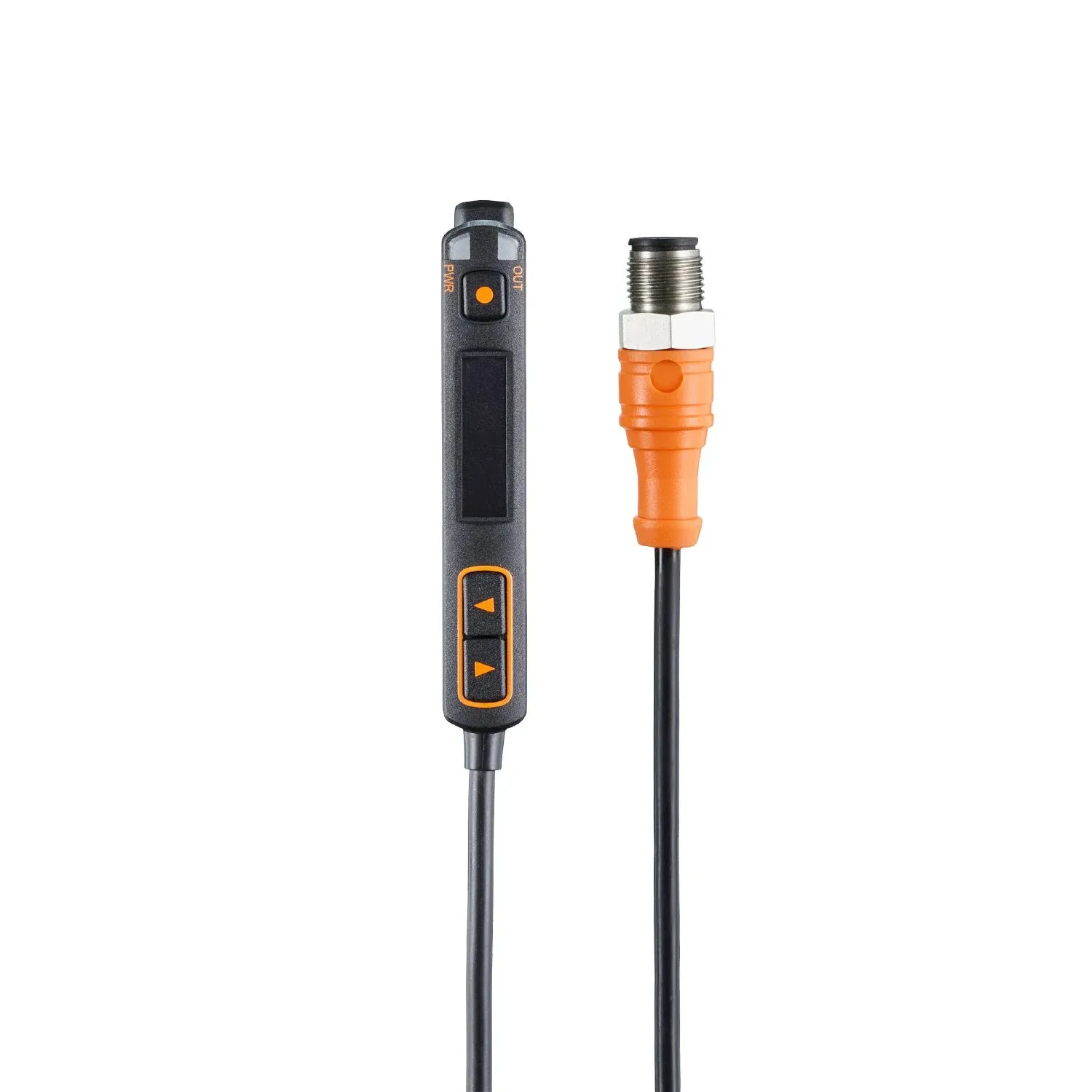

IFM OCF502
OCF502
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Intelligent clamping system simplifies installation
Fast set-up thanks to intuitive menu navigation and OLED display
Automatic selection of the right operating mode
Two switching outputs – for fast processes and diagnostic options
Universally suitable for fibre optics made of glass or plastic
Helpful maintenance functions support the system availability
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 35 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 632 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Electrical design | PNP/NPN; (programmable) |
|---|---|
| Number of digital outputs | 2 |
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Max. current load for function check output[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 20000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Time function[s] [s] | 1...9999 |
Detection zone
| Range[m] [m] | 0...3.6; (Through-beam sensor E20703 (High Power)) |
|---|---|
| Range[mm] [mm] | 0...1250; (diffuse reflection sensor E20633 (High Power)) |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 4.1.1 Measuring and Switching Sensor, 1 channel Common - I&D Identification and Diagnosis Extension Sensor control Extension Teach two point Extension Teach dynamic Function Locator Function ProductURI Function Teach recommended extension |
| Smart Sensor - SSP 4.1.1 | Measuring and Switching Sensor, 1 channel |
| Common - I&D | Identification and Diagnosis |
| Extension | Teach dynamic |
| Function | Teach recommended extension |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 5 |
| IO-Link process data (cyclical) | process value 16 device status 4 binary switching information 2 |
| process value | 16 |
| device status | 4 |
| binary switching information | 2 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switch-on cycle counter |
| Supported DeviceIDs | default 1702 |
| default | 1702 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65; (with connected fibre optics) |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 336 |
Mechanical data
| Weight[g] [g] | 100.45 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 83.8 x 12.4 x 40.1 |
| Materials | housing: ABS modified |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green OLED display |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.3 m, PVC; 4 x 0.25 mm² |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A |
|---|
