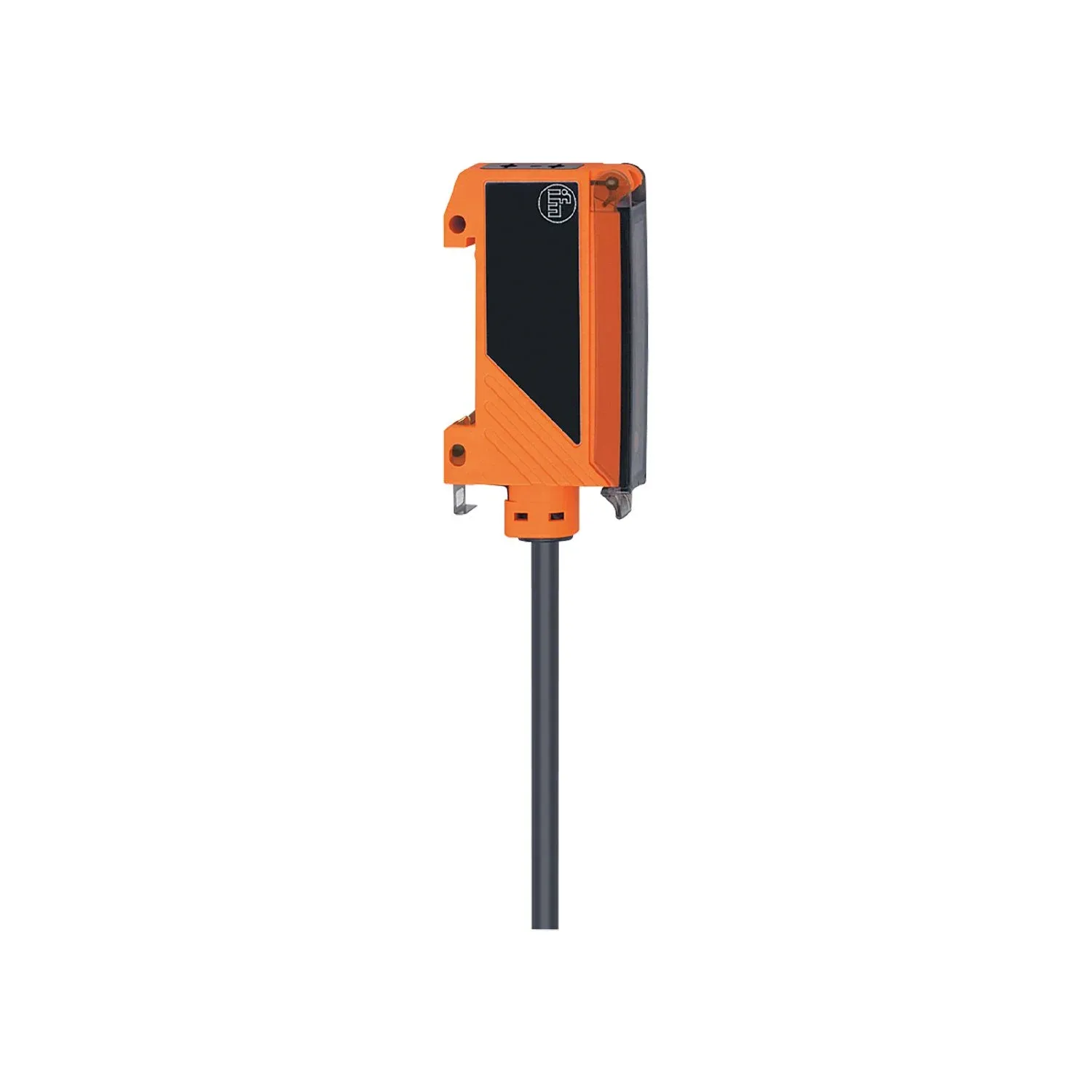

IFM OBF502
OBF502
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy adjustment of sensitivity and pulse stretching via pushbutton
LED display to check operation, switching status and function
For use as diffuse reflection sensor or through-beam sensor
High switching frequency for fast processes
Operation with inexpensive acrylic fibre optics
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Special feature | Function check output |
|---|---|
| Design | Fibre-optic amplifiers for acrylic fibre optics |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 630 |
Outputs
| Electrical design | PNP/NPN; (automatic load detection PNP/NPN) |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Function check output | yes |
| Max. voltage drop of function check output[V] [V] | 2.5 |
| Max. current load for function check output[mA] [mA] | 10 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 3000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Time function[s] [s] | 0.001...0.09 |
Detection zone
| Range[m] [m] | 0...2; (Through-beam sensor) |
|---|---|
| Range[mm] [mm] | 0...100; (Diffuse reflection sensor) |
| Range adjustable | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 806 |
Mechanical data
| Weight[g] [g] | 136.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 36 x 15 x 60 |
| Number of channels | 1 |
| Materials | housing: PPE modified |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green unsafe zone 1 x LED, red excess gain 4 x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| unsafe zone | 1 x LED, red |
| excess gain | 4 x LED, green |
Remarks
| Remarks | light-on mode corresponds to the NC output function for through-beam fibre optics corresponds to the NO output function for diffuse-reflection fibre optics dark-on mode corresponds to the NO output function for through-beam fibre optics corresponds to the NC output function for diffuse-reflection fibre optics operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 2 m, PVC; 4 x 0.34 mm² |
|---|
