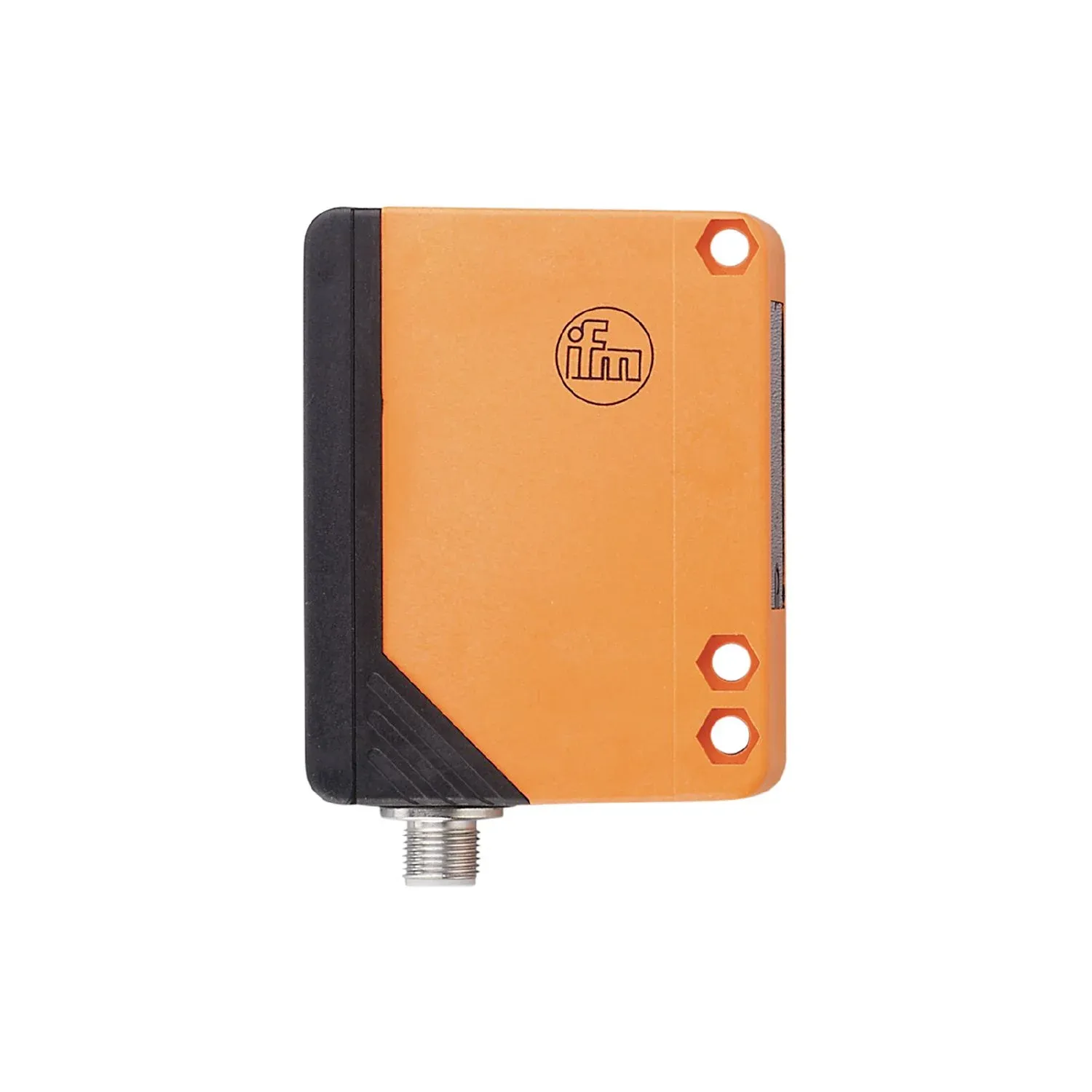

IFM OA5120
OA5120
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
Intuitive setting of sensitivity and duration of switching delay
Programmable light-on/dark-on mode
With function check output to signal soiling or maladjustment
LED display to check operation, switching status and function
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | rectangular |
Application
| Special feature | Function check output |
|---|---|
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length[nm] [nm] | 880 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Function check output | yes |
| Max. current load for function check output[mA] [mA] | 10 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Max. current load in dual output mode[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range[mm] [mm] | 5...1500; (white paper 200 x 200 mm) |
|---|---|
| Range adjustable | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 402 |
Mechanical data
| Weight[g] [g] | 289.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 90 x 30 x 70 |
| Materials | PPO modified |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
| function | 1 x LED, red |
Accessories

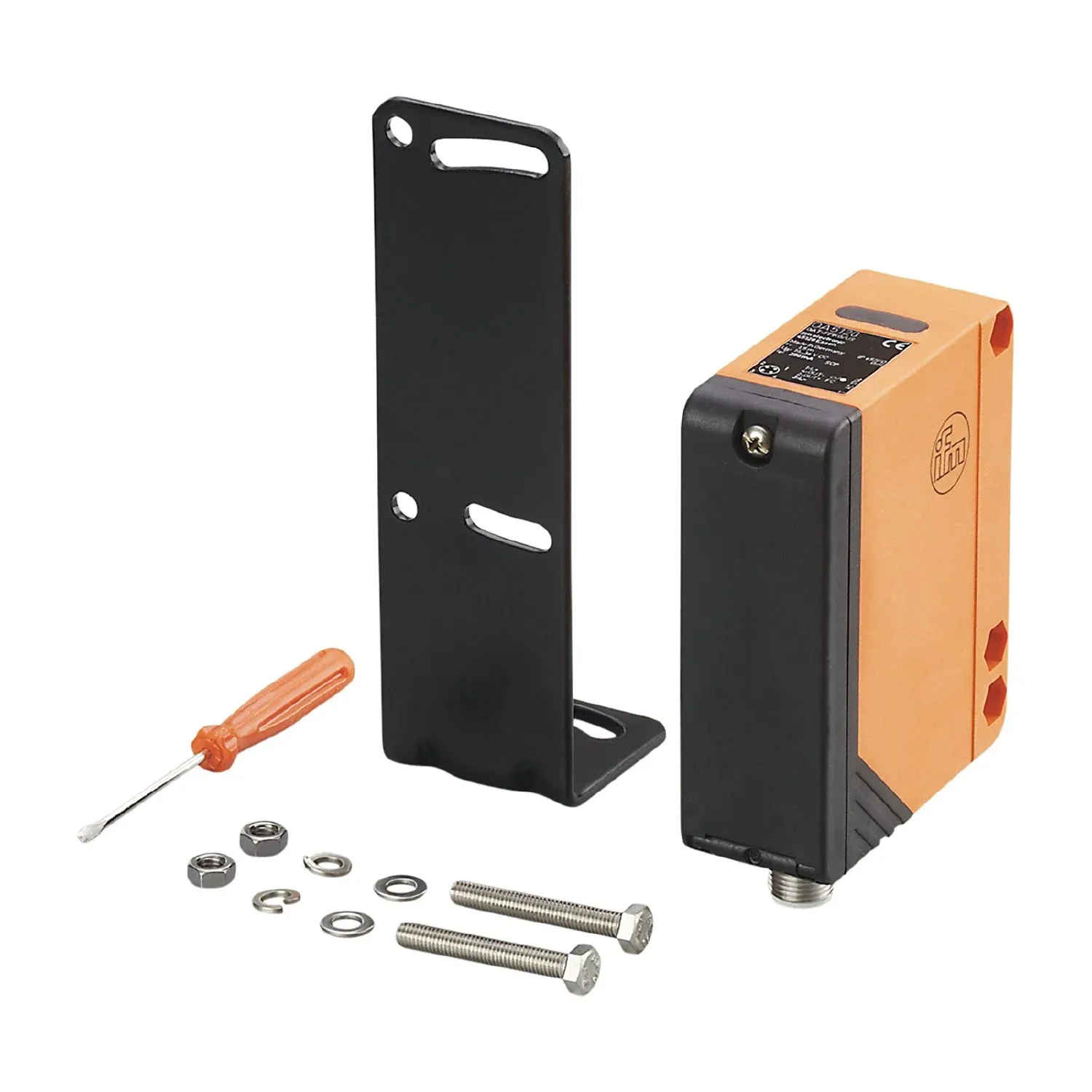

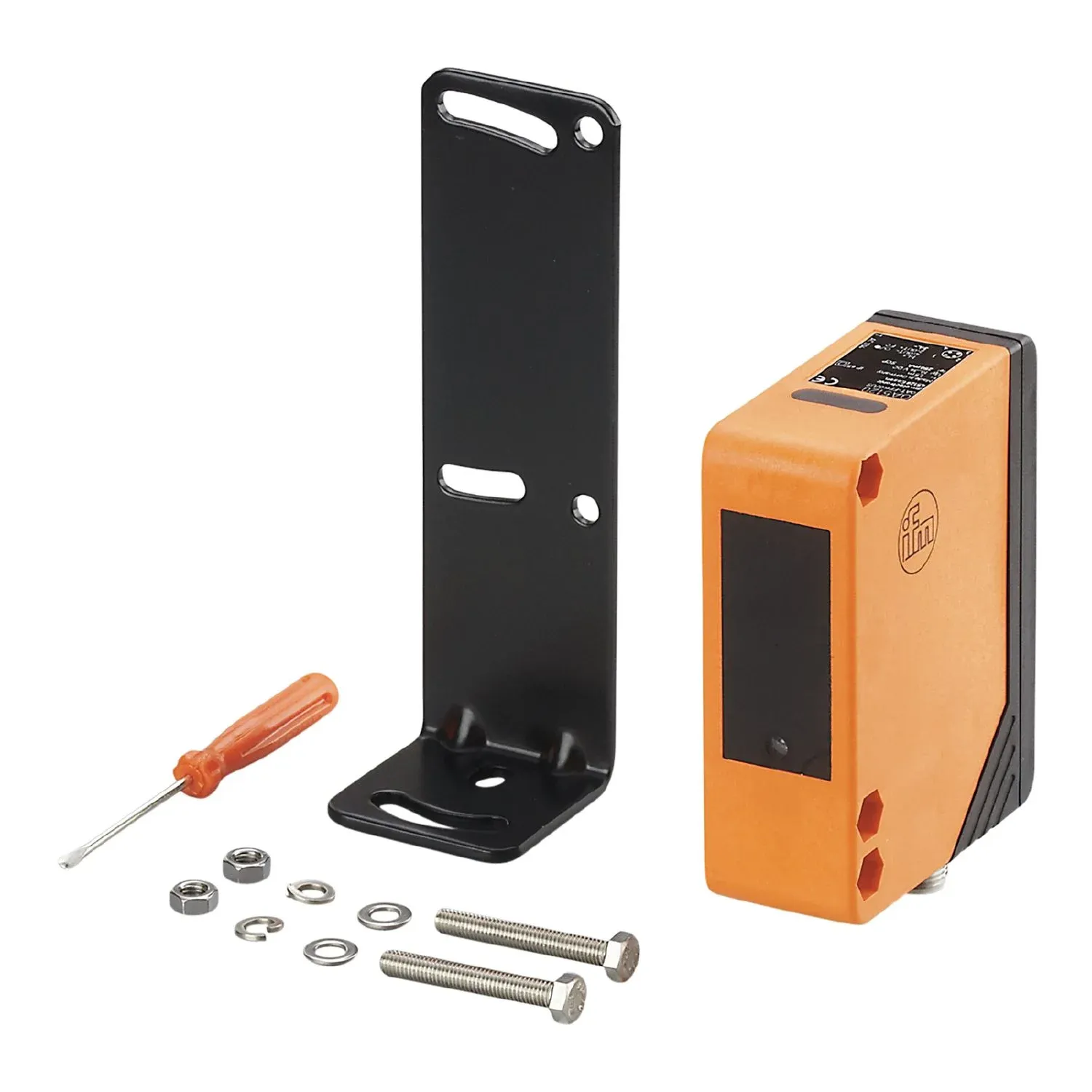

| Items supplied | Angle bracket screwdrivers |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
