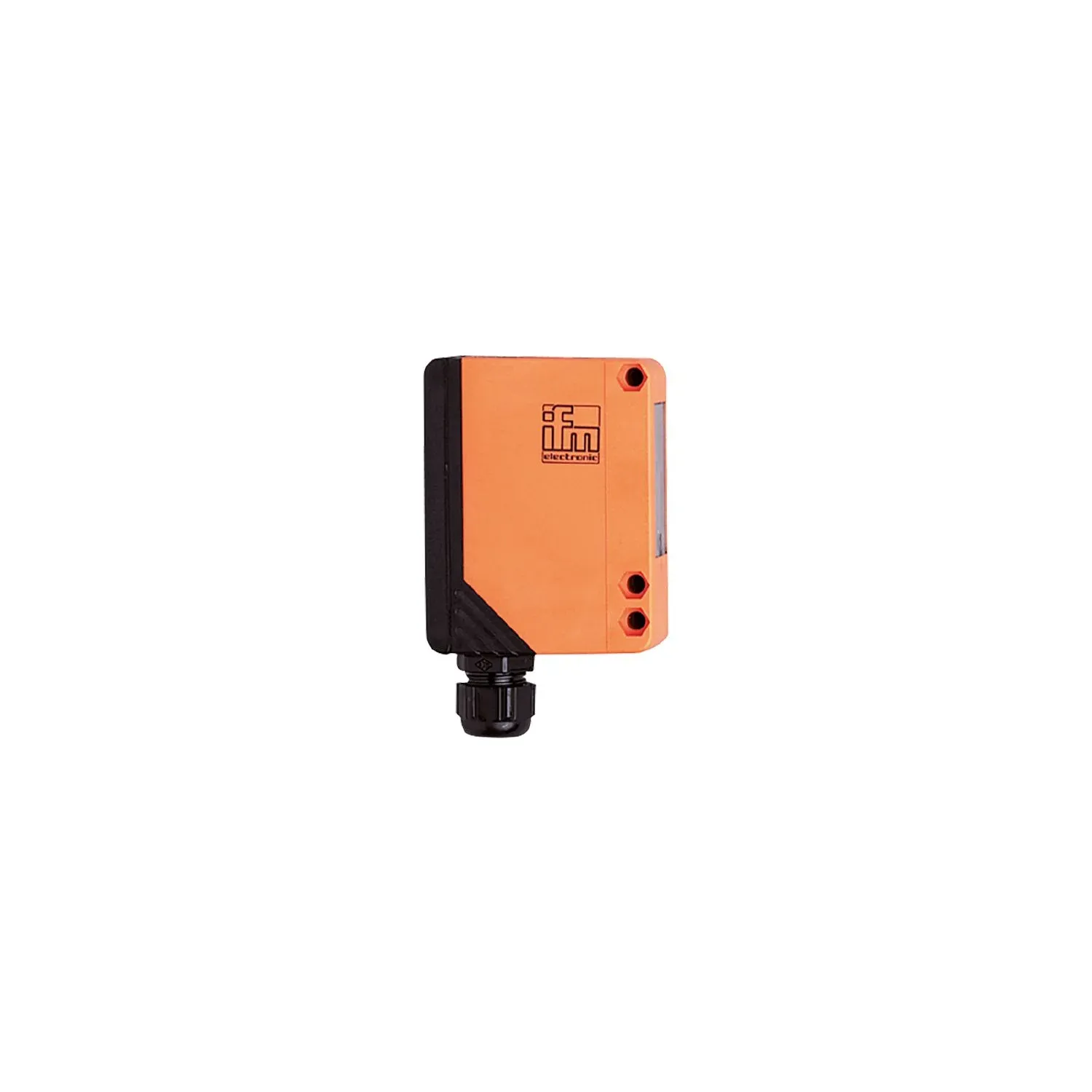

IFM OA0101
OA0101
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
With combined AC/DC output stage
Large AC/DC operating voltage range
Robust housing for use in harsh industrial environments
LED display to check the operating status
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Frequency AC[Hz] [Hz] | 47...63 |
|---|---|
| Operating voltage[V] [V] | 20...250 AC/DC |
| Max. power consumption[VA] [VA] | 3.5 |
| Protection class | II |
| Type of light | infrared light |
| Wave length[nm] [nm] | 880 |
Outputs
| Short-circuit protection | no |
|---|---|
| Overload protection | no |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range[m] [m] | < 50 |
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 1500 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 EN 55011 class B |
|---|---|
| EN 55011 | class B |
| MTTF[years] [years] | 393 |
Mechanical data
| Weight[g] [g] | 278 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 90 x 30 x 70 |
| Materials | PPO modified |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | operation 1 x LED, green |
|---|---|
| operation | 1 x LED, green |
Accessories
| Items supplied | Angle bracket: 1, E20514 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals | ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5 |
|---|
