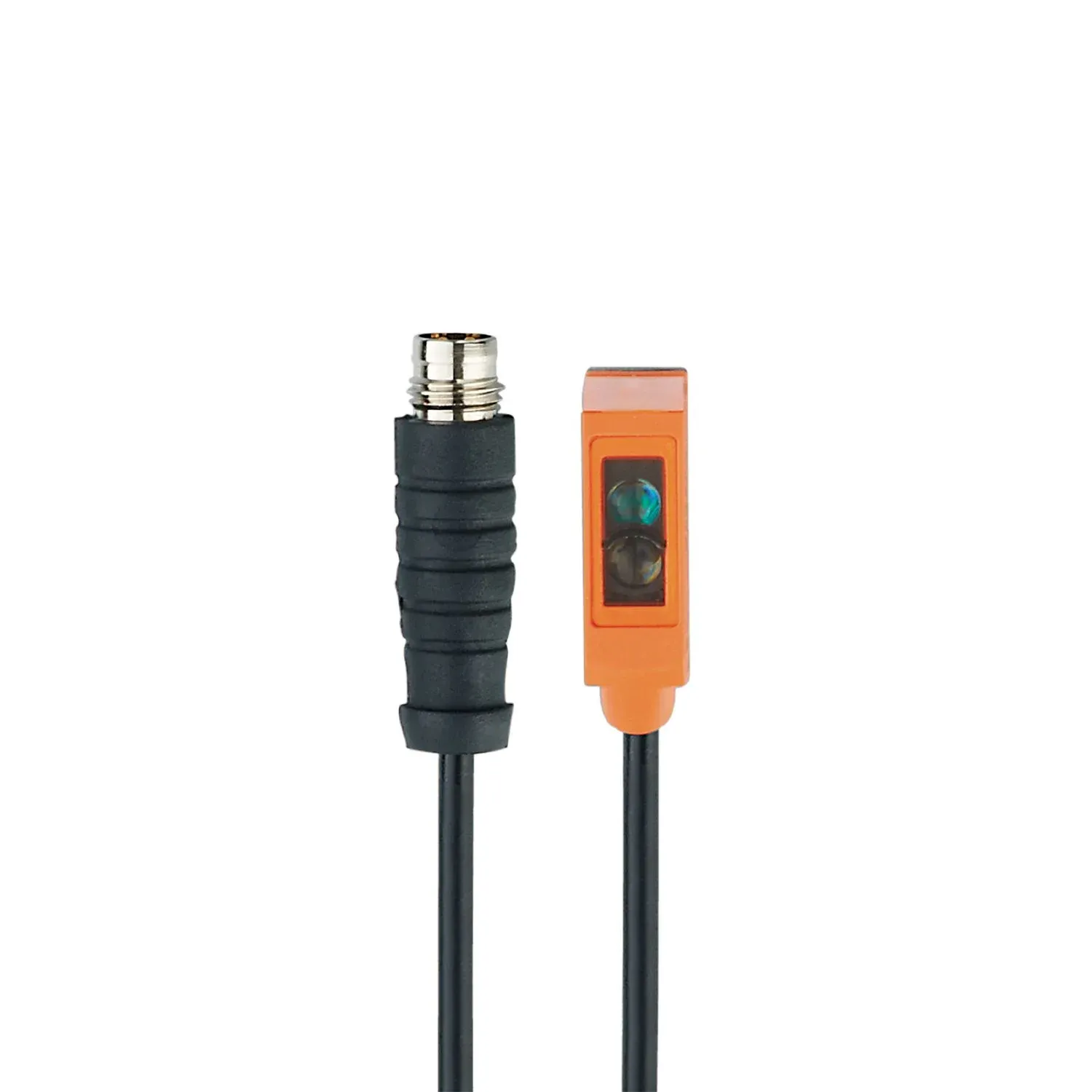

IFM O8P204
O8P204
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Particularly small housing for use where space is restricted
For the reliable position detection in feeding and handling technology
Precise detection of very small, very flat or highly reflective components
Very long range
Easy setting of the range with IO-Link
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Special feature | polarisation filter |
|---|---|
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | 20; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 633 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
Detection zone
| Range referred to prismatic reflector[m] [m] | 0.02...1.8; (Prismatic reflector Ø 30 E20004) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter[mm] [mm] | 120 |
| Light spot dimensions refer to | at maximum range |
| Polarisation filter available | yes |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Multiple switching signal Function Device diagnosis Function Teach channel |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Teach channel |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 2.5 |
| IO-Link process data (cyclical) | process value 8 device status 4 binary switching information 1 |
| process value | 8 |
| device status | 4 |
| binary switching information | 1 |
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter |
| Supported DeviceIDs | default 786 |
| default | 786 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 1067 |
| UL approval | Ta -25...60 °C Enclosure type Type 1 power supply Limited Voltage/Current UL approval no. E017 File number UL E174191 |
| Ta | -25...60 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| UL approval no. | E017 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 21.1 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 28.1 x 8.1 x 14.4 |
| Materials | housing: ABS; stainless steel (316L/1.4404) |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.3 m, PVC, black, Ø 2.9 mm; 3 x 0.08 mm² |
|---|---|
| Connector | 1 x M8; coding: A |
