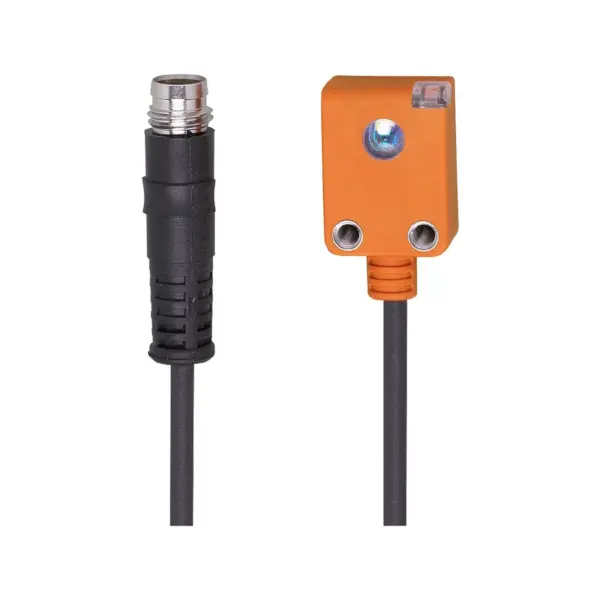

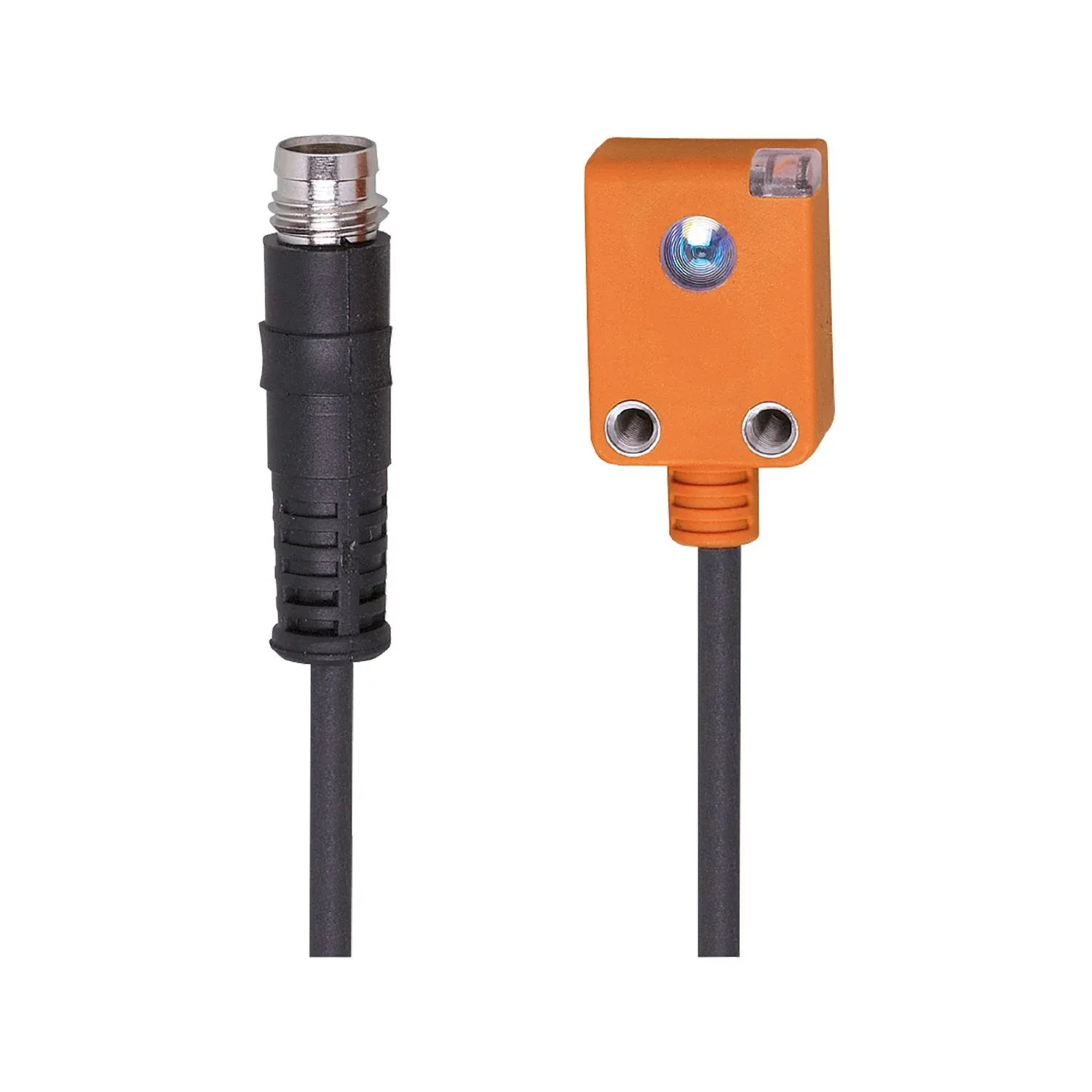

IFM O7E201
O7E201
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Particularly small housing for use where space is restricted
For the reliable position detection in feeding and handling technology
Small light spot and narrow light cone for detecting of small objects
Ready for operation immediately thanks to fixed setting
Very long range
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | 10; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on mode |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
Detection zone
| Transmitter / receiver | receiver |
|---|---|
| Range[m] [m] | 0...1.5 |
| Range adjustable | no |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 1312 |
Mechanical data
| Weight[g] [g] | 14.3 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 20.3 x 15 x 9 |
| Materials | PA |
| Lens material | PMMA |
| Lens alignment | side lens |
| Tightening torque[Nm] [Nm] | 0.5 |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Remarks
| Remarks | operating voltage "supply class 2" according to UL |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 0.2 m, PUR; 3 x 0.14 mm² |
|---|---|
| Connector | 1 x M8; coding: A; Locking: snap-fit |
