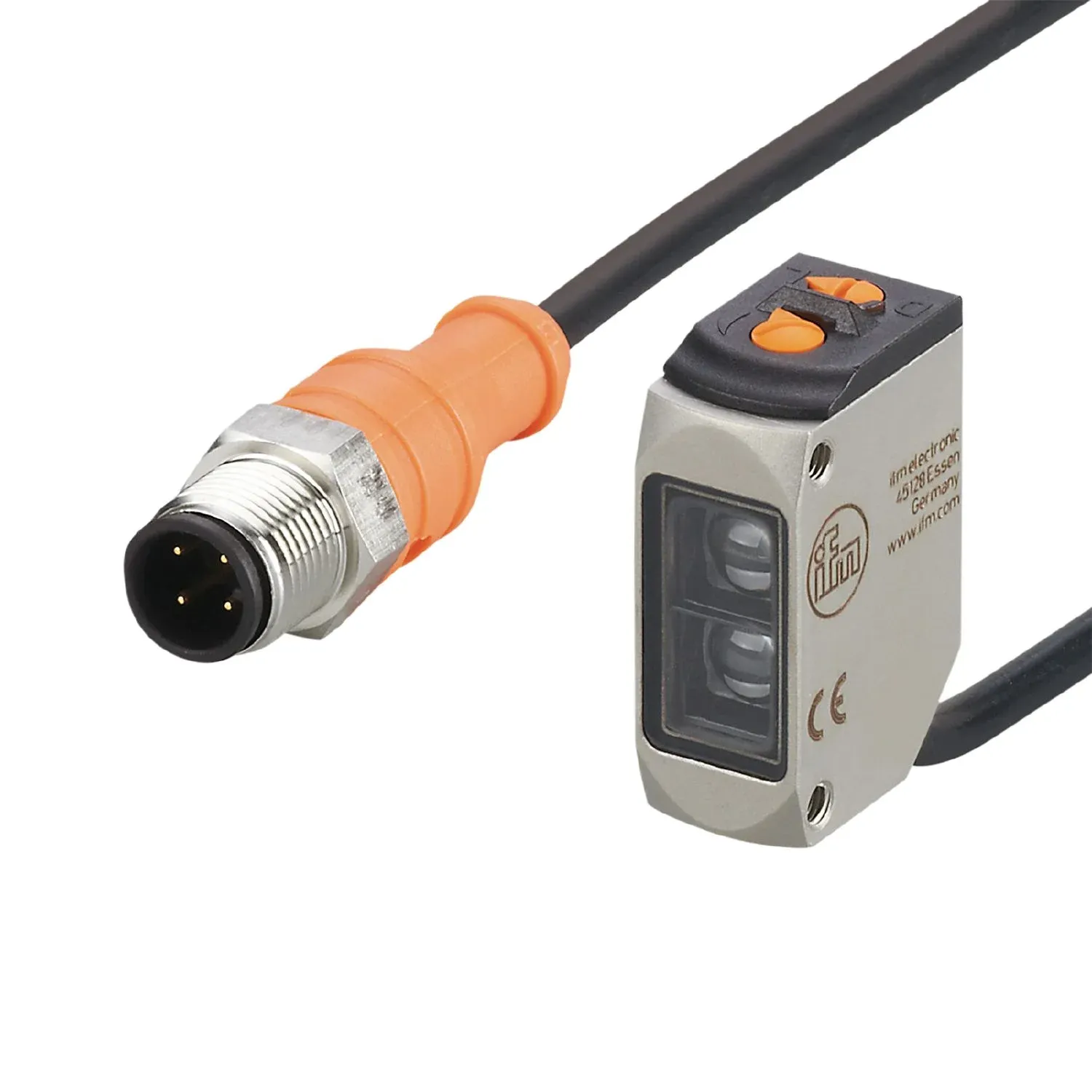

IFM O6T405
O6T405
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust stainless steel housing for use in metalworking and in the automotive industry
Resistant to oils and coolants
High protection rating for the requirements of harsh industrial environments
Intuitive setting of range and output function
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | suited for use in the machine tool industry |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | 16; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 633 |
Outputs
| Electrical design | NPN |
|---|---|
| Output function | light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
Detection zone
| Range[mm] [mm] | 5...500; (white paper 200 x 200 mm 90% remission) |
|---|---|
| Setting range[mm] [mm] | 100...500 |
| Range adjustable | yes |
| Max. light spot diameter[mm] [mm] | 15 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65; IP 67; IP 68 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 896 |
| UL approval | Ta -25...50 °C Enclosure type Type 1 power supply Class 2 UL approval no. E020 |
| Ta | -25...50 °C |
| Enclosure type | Type 1 |
| power supply | Class 2 |
| UL approval no. | E020 |
Mechanical data
| Weight[g] [g] | 51.4 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 34.8 x 13 x 21 |
| Materials | housing: stainless steel (316L/1.4404); plastics: PPSU; Sealing: FKM |
| Lens material | PMMA |
| Lens alignment | side lens |
| Tightening torque[Nm] [Nm] | 1; (screws) |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 0.3 m, PUR; 3 x 0.25 mm² |
|---|---|
| Connector | 1 x M12; coding: A |
