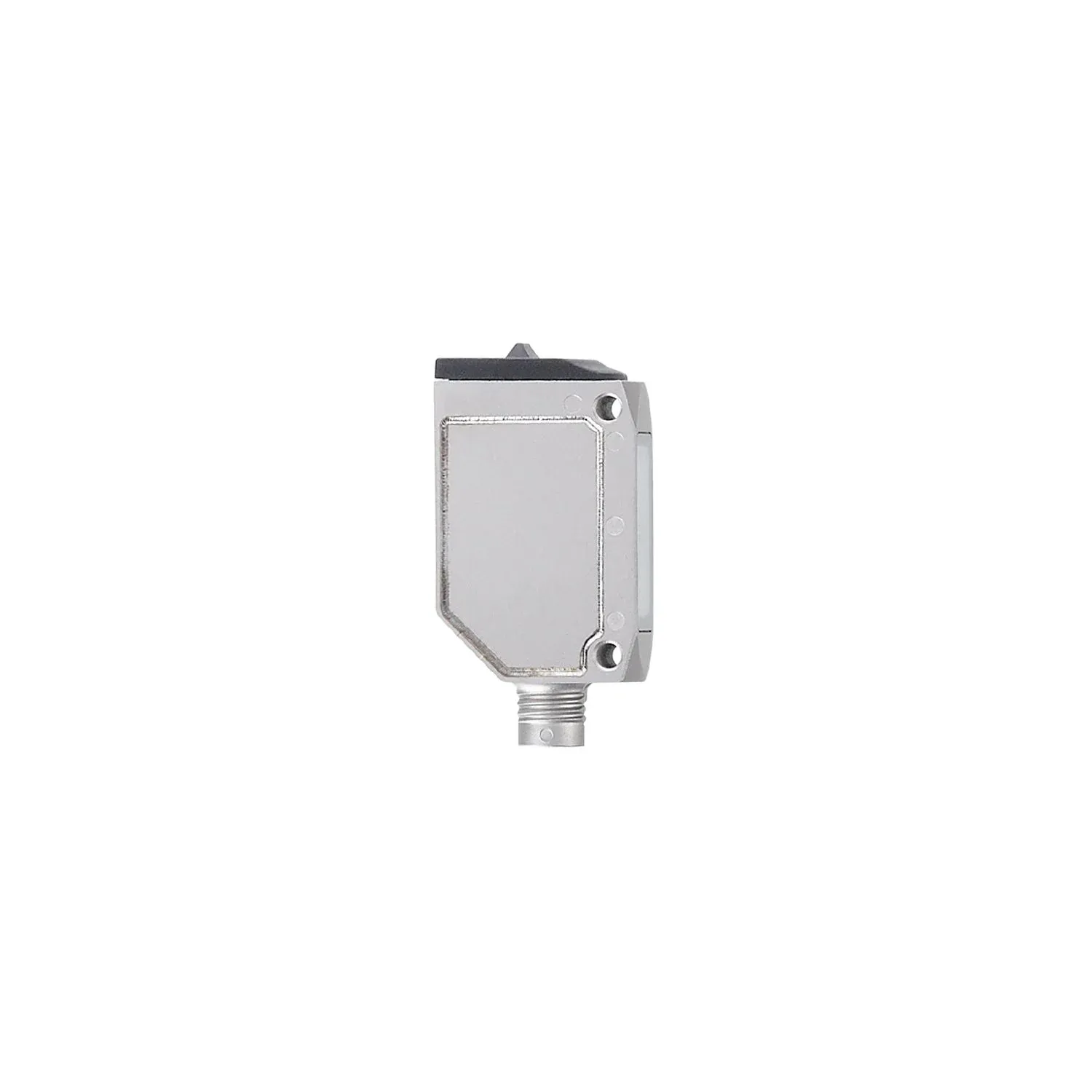

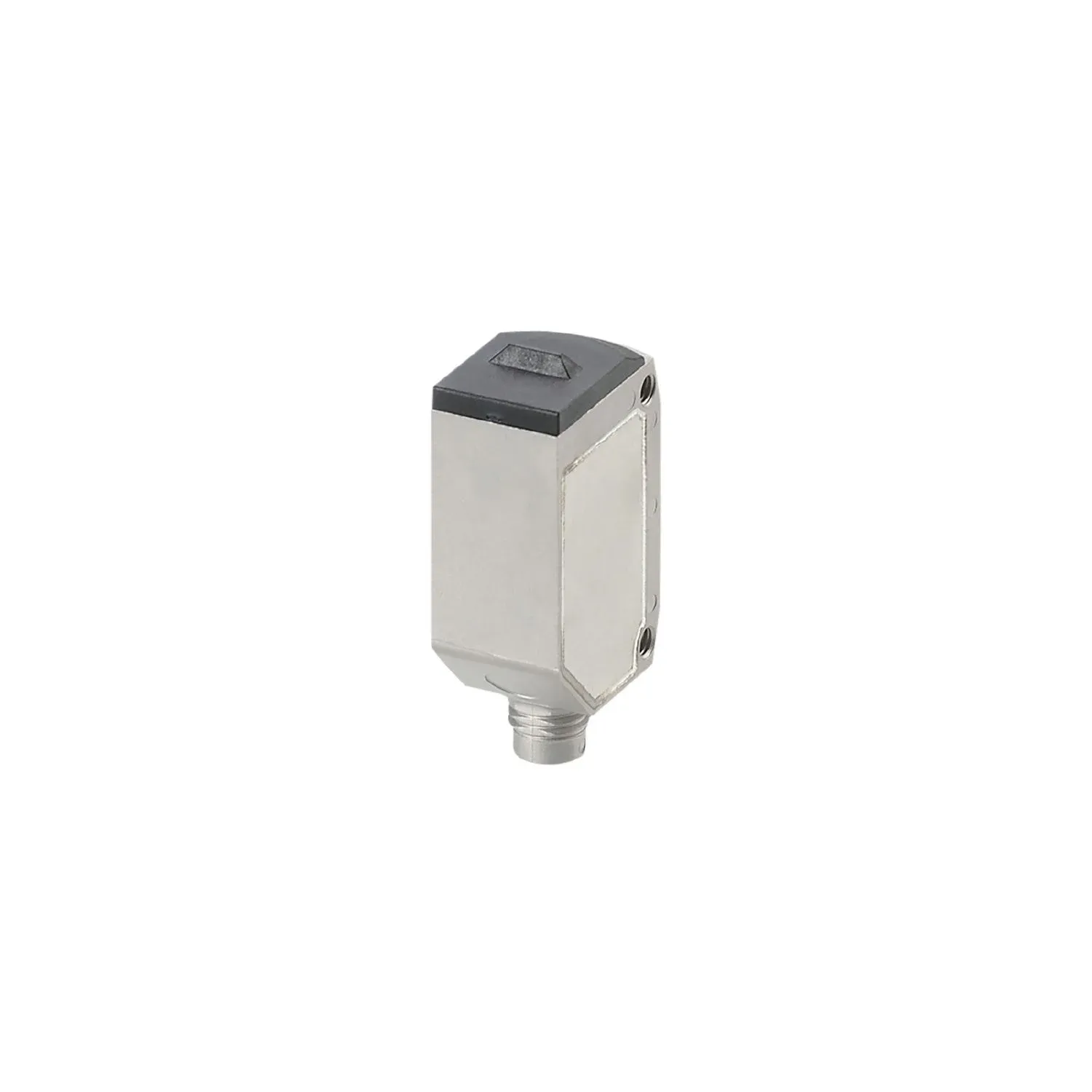

IFM O6S302
O6S302
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust stainless steel housing for use in the food industry
Resistant to high-pressure cleaning with aggressive cleaning agents
High protection rating for the requirements of harsh industrial environments
Very long range independent of the object colour
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | 11; ((24 V)) |
| Protection class | III |
| Type of light | red light |
| Wave length[nm] [nm] | 633 |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range[m] [m] | < 10 |
| Max. light spot diameter[mm] [mm] | 300 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 2600 |
| UL approval | Ta -25...40 °C Enclosure type Type 1 power supply Class 2 UL approval no. E002 |
| Ta | -25...40 °C |
| Enclosure type | Type 1 |
| power supply | Class 2 |
| UL approval no. | E002 |
Mechanical data
| Weight[g] [g] | 33.7 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 34.8 x 13 x 21 |
| Materials | housing: stainless steel (316L/1.4404); plastics: PPSU; Sealing: EPDM |
| Lens material | PMMA |
| Lens alignment | side lens |
| Tightening torque[Nm] [Nm] | 1; (screws) |
Displays / operating elements
| Display | operation 1 x LED, green |
|---|---|
| operation | 1 x LED, green |
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M8; coding: A |
|---|
