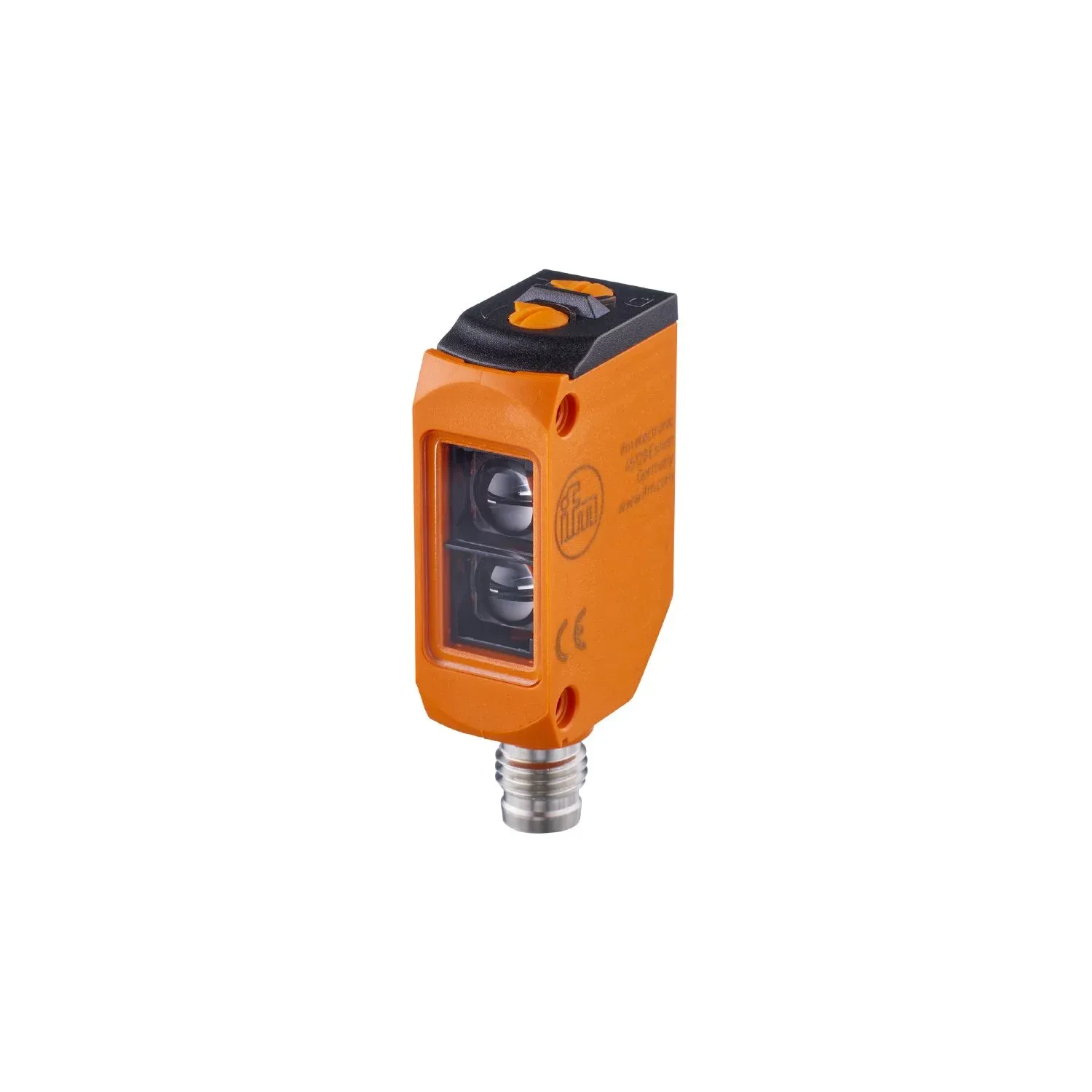

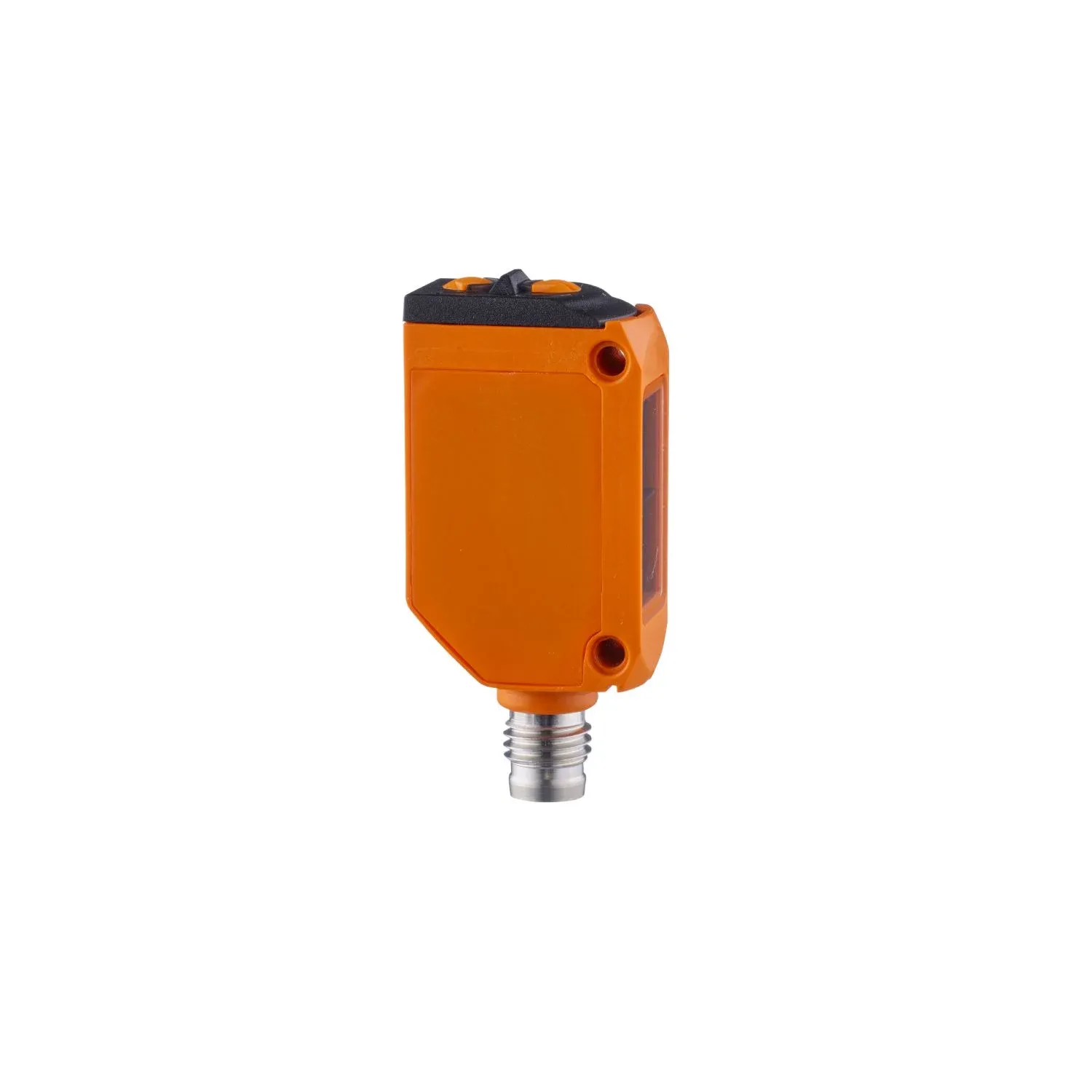

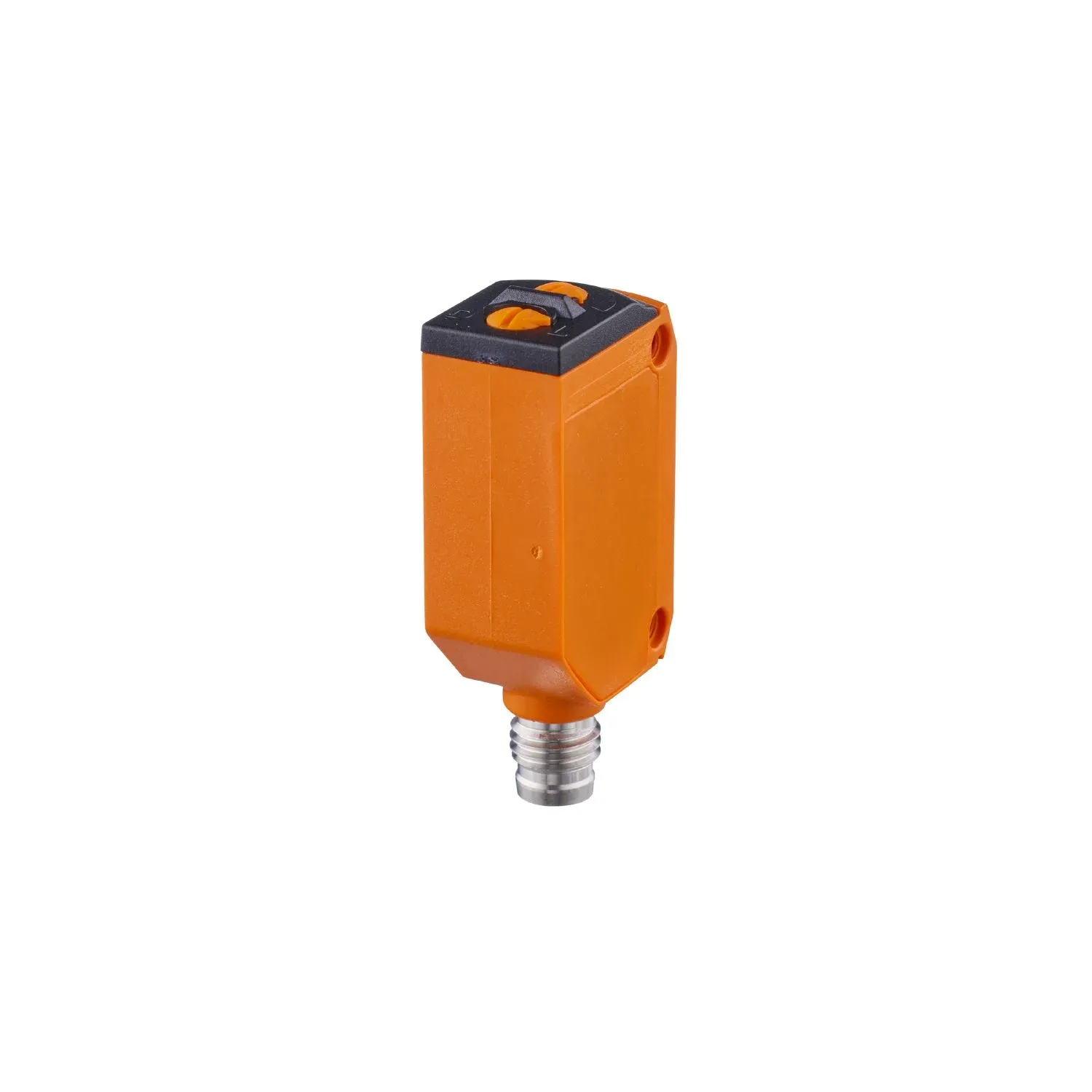

IFM O6H202
O6H202
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Particularly compact housing for use where space is restricted
Intuitive setting of the sensitivity via potentiometer
User-friendly selection of light-on or dark-on via rotary switch
Particularly interference-immune background suppression even with strongly reflecting backgrounds
Excellent price/performance ratio
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Special feature | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | 22; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 633 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
Detection zone
| Range[mm] [mm] | 2...200; (white paper 200 x 200 mm) |
|---|---|
| Range on white object (90 % remission)[mm] [mm] | 2...200 |
| Range on grey object (18 % remission)[mm] [mm] | 4...200 |
| Range on black object (6 % remission)[mm] [mm] | 8...200 |
| Range adjustable | yes |
| Max. light spot diameter[mm] [mm] | 8 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 683 |
| UL approval | Ta -25...40 °C Enclosure type Type 1 power supply Class 2 UL approval no. E001 |
| Ta | -25...40 °C |
| Enclosure type | Type 1 |
| power supply | Class 2 |
| UL approval no. | E001 |
Mechanical data
| Weight[g] [g] | 18.3 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 46 x 13 x 21 |
| Materials | housing: ABS; PPSU |
| Lens material | PMMA |
| Lens alignment | side lens |
| Sealing material | EPDM |
| Tightening torque[Nm] [Nm] | 0.5 |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1 x LED, green |
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M8; coding: A; Locking: brass, coated; Sealing: EPDM |
|---|
