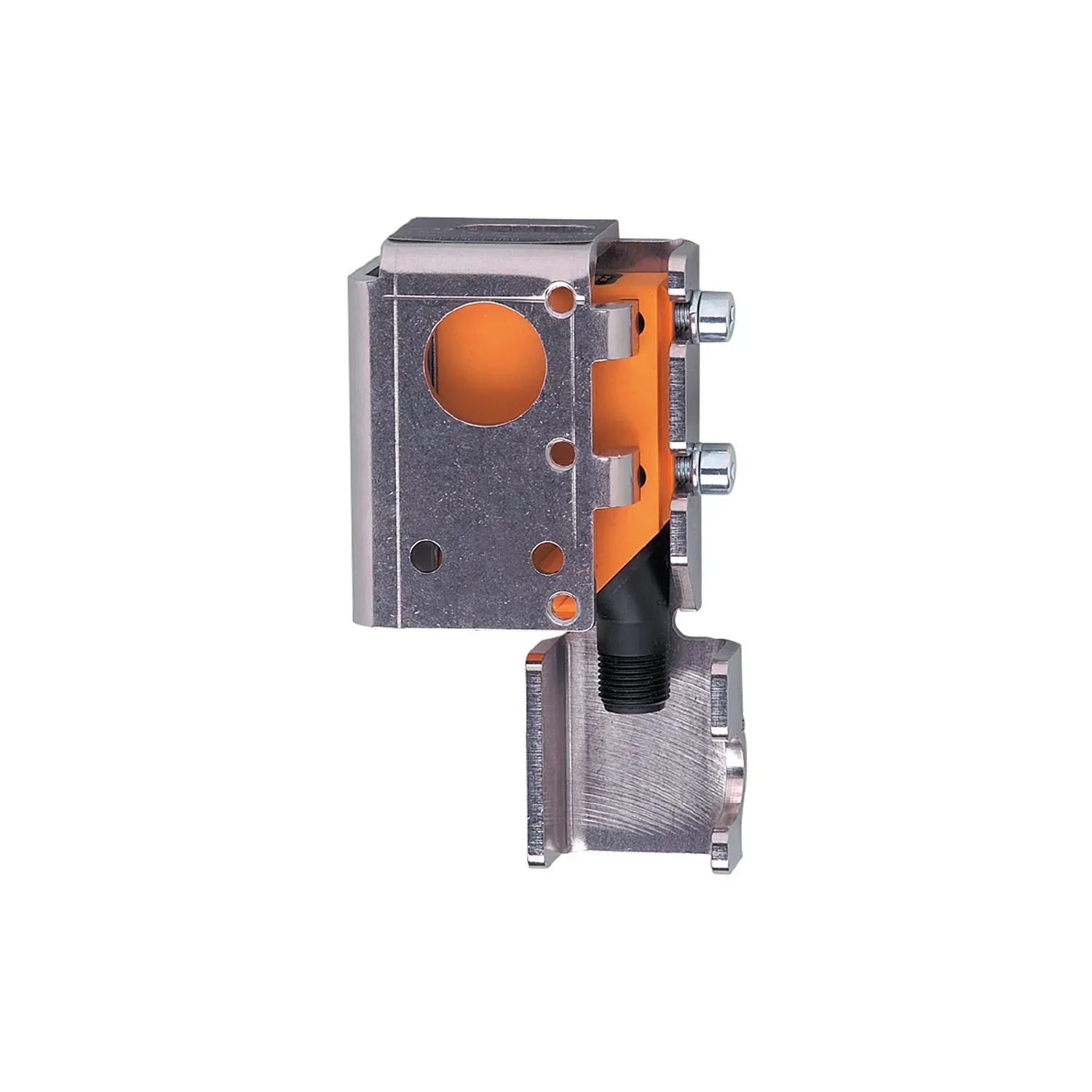

IFM O5S51A
O5S51A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
Robust housing with stainless steel protective bracket
Very long range
Clearly visible indication of the readiness for operation
Extensive range of fixing components
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC; (when used outside the hazardous area: 10...36) |
|---|---|
| Current consumption[mA] [mA] | 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range[m] [m] | < 25 |
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 625 |
Operating conditions
| Ambient temperature[°C] [°C] | -10...50 |
|---|---|
| Note on ambient temperature | when used outside the hazardous area: -25...60 °C |
| Protection | IP 65 |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIC T105°C Dc X |
|---|---|
| EMC | EN 60947-5-2 |
| MTTF[years] [years] | 617 |
Mechanical data
| Weight[g] [g] | 332.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 105 x 30 x 62 |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU; Protective bracket: stainless steel |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | operation 1 x LED, green |
|---|---|
| operation | 1 x LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
