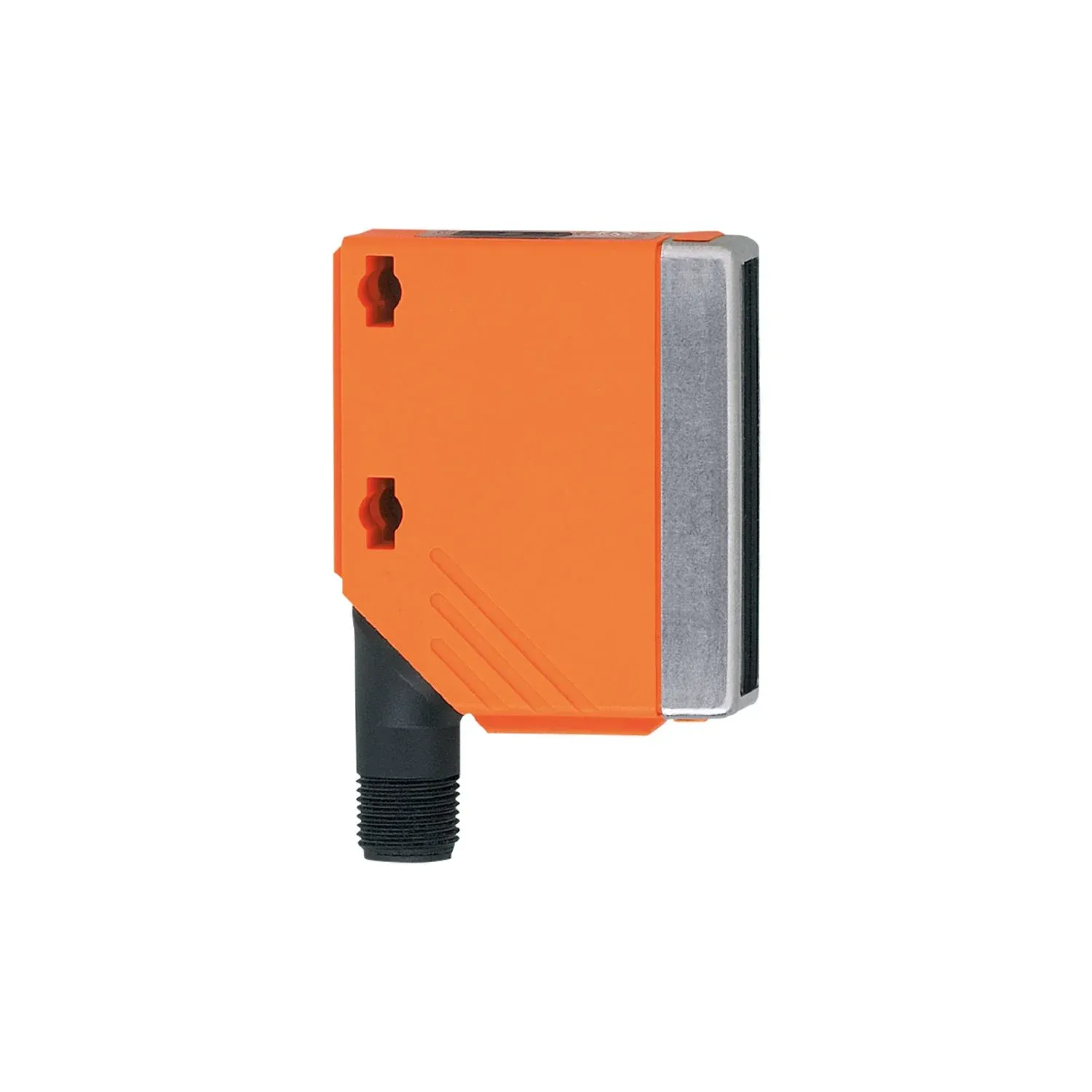

IFM O5S500
O5S500
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
Robust housing for use in harsh industrial environments
Clearly visible indication of the readiness for operation
Excellent price/performance ratio
With connector that can be rotated by 270°
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 624 |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range[m] [m] | < 25 |
| Range adjustable | no |
| Max. light spot diameter[mm] [mm] | 625 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 617 |
Mechanical data
| Weight[g] [g] | 65.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 56 x 18.2 x 46.8 |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | operation 1 x LED, green |
|---|---|
| operation | 1 x LED, green |
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
