IFM O5P51A
O5P51A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas

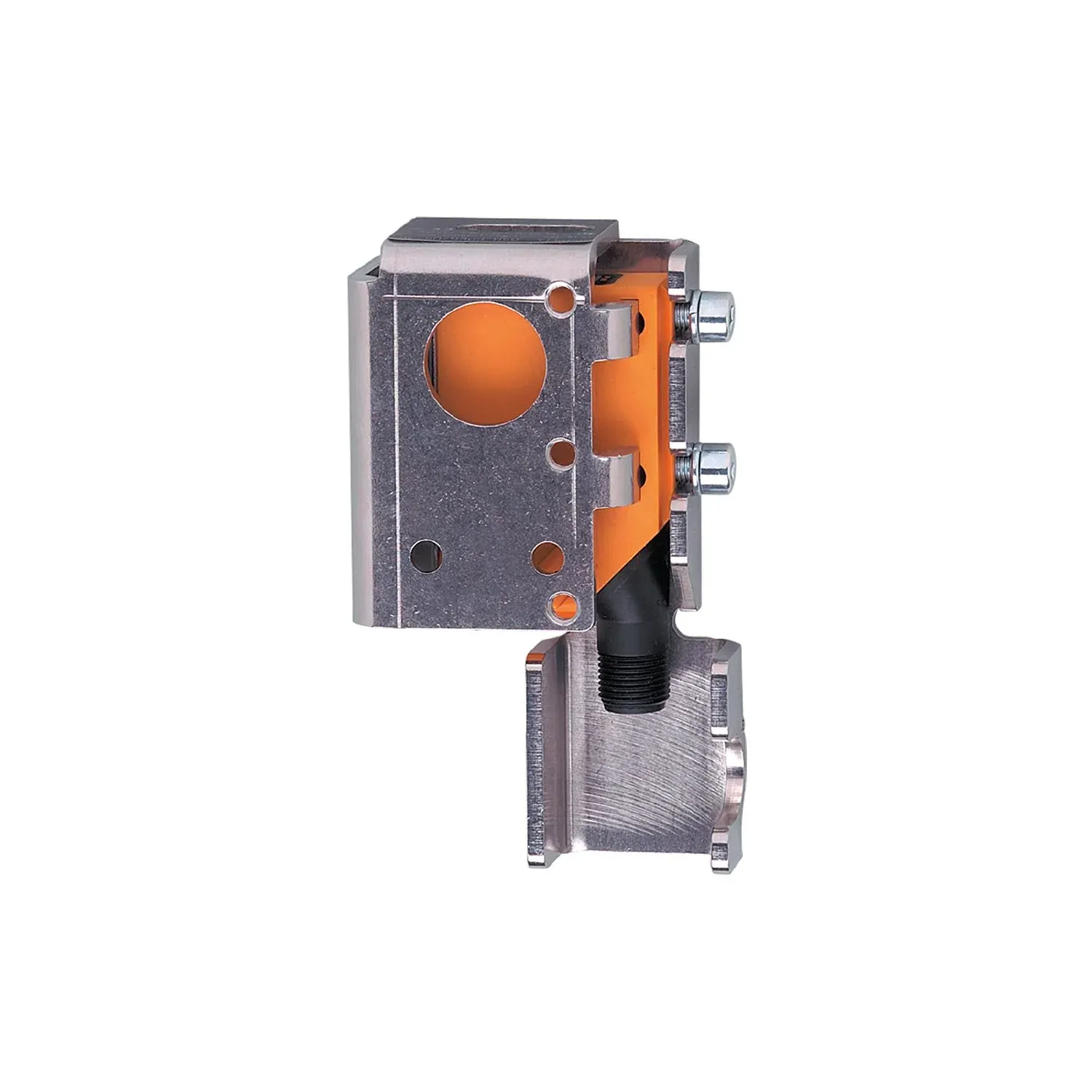

Robust housing with stainless steel protective bracket
Very long range
Sensitivity adjustable via teach buttons
Programmable light-on/dark-on mode
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Special feature | polarisation filter |
|---|---|
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; (when used outside the hazardous area: 10...36) |
|---|---|
| Current consumption[mA] [mA] | 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100; (when used outside the hazardous area: 200) |
| Switching frequency DC[Hz] [Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range referred to prismatic reflector[m] [m] | 0.075...10; (Prismatic reflector Ø 80 E20005) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter[mm] [mm] | 250 |
| Polarisation filter available | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -10...50 |
|---|---|
| Note on ambient temperature | when used outside the hazardous area: -25...60 °C |
| Protection | IP 65 |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIC T105°C Dc X |
|---|---|
| EMC | EN 60947-5-2 |
| MTTF[years] [years] | 435 |
Mechanical data
| Weight[g] [g] | 336.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 105 x 30 x 62 |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU; Protective bracket: stainless steel |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
| Teach function | yes |
| Electronic lock | yes |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
